The W04 Rectifier is a Single Phase Glass Passivated Silicon Bridge Rectifier of a voltage range 50 to 400 Volts and Current 1 Amperes.
Features:-
• High reverse voltage to 400V
• Surge overload ratings to 50 amperes peak
• Good for printed circuit board assembly
Mechanical Data:-
• UL listed the recognized component directory, file E94233
• Epoxy: Device has UL flammability classification 94V-O
• Mounting position: Any
• Weight: 1.20 grams
Specification:-
Symbol | Parameter | Values | Units |
VRRM | Maximum Recurrent Peak Reverse Voltage | 50 | V |
VRMS | Maximum RMS Bridge Input Voltage | 35 | V |
VDC | Maximum DC Blocking Voltage | 50 | V |
IO | Maximum Average Forward Rectified Output Current at TA = 25°C | 1.5 | A |
TJ | Operating Temperature Range | 55 to + 150 | °C |
TSTG | Storage Temperature Range | 55 to + 150 | °C |
Related Document:-
WO4 Rectifier Data Sheet
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 10.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

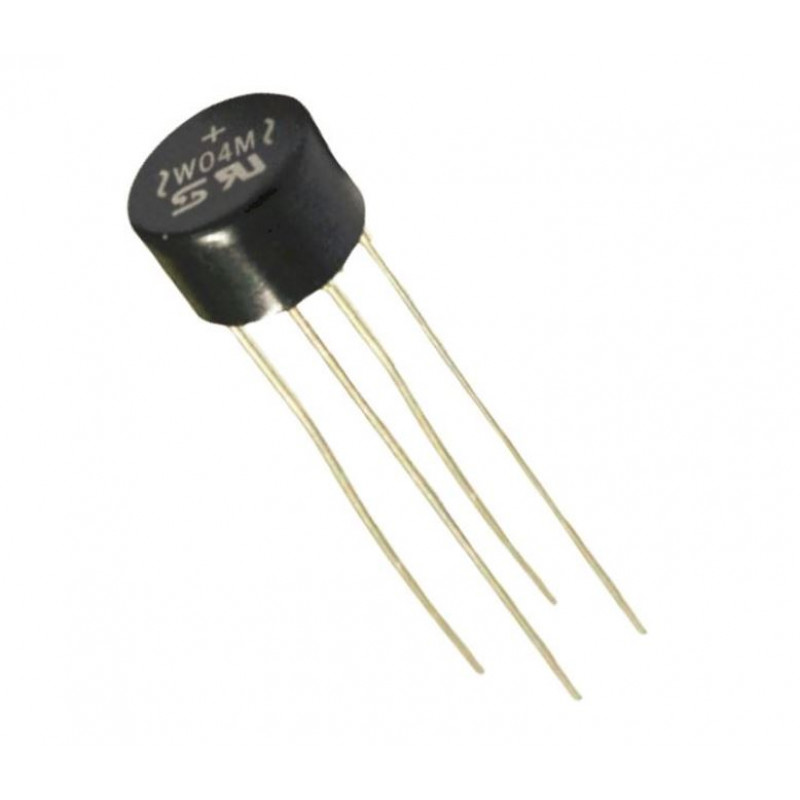

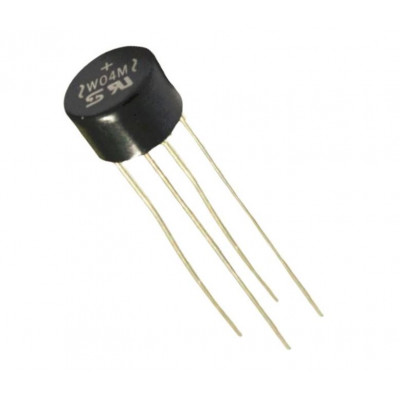

W04M 1A 400V Full Wave Bridge Rectifier
- Product Code: EC-0601
- Availability: 10834
-
Rs.9.00
- (Excluding 18% GST)
