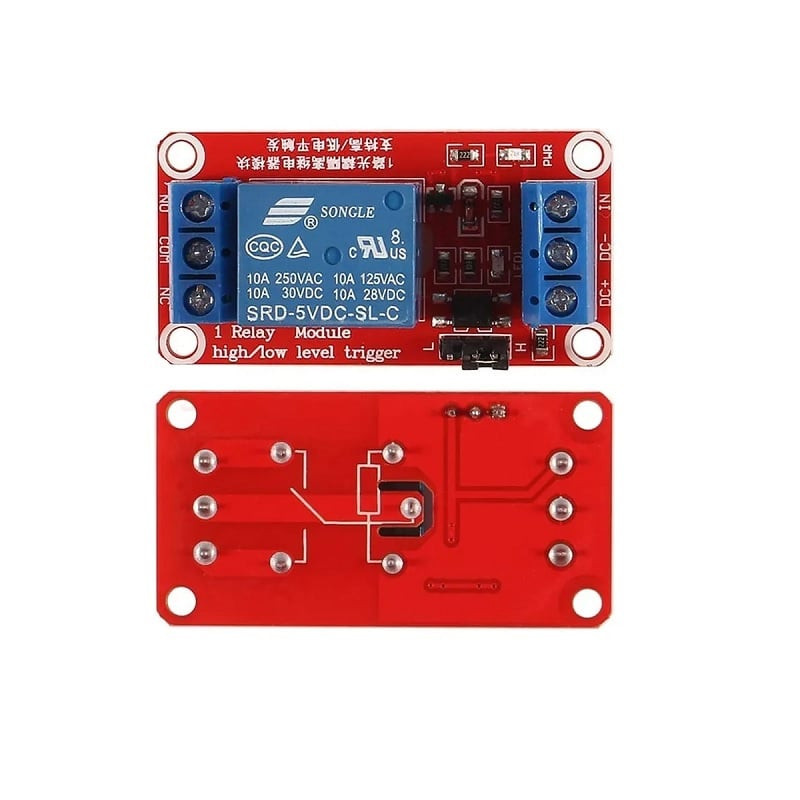

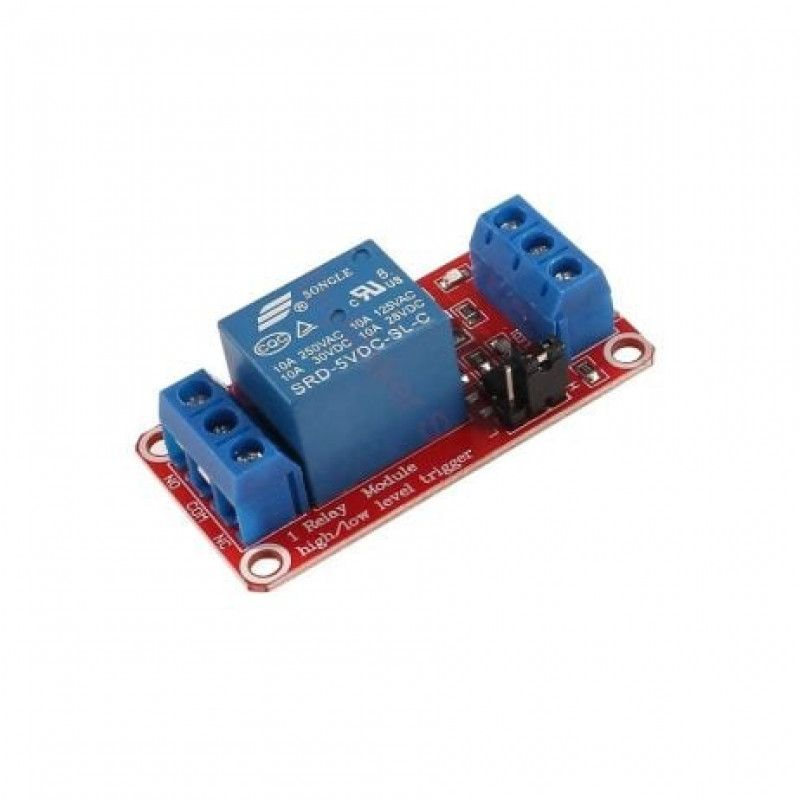

1 Channel Relay Module 5V High and Low Level Trigger Relay Module is small and easy to use. Use it to control one 240V power appliance directly from Arduino, Raspberry Pi, and other microcontrollers or low-voltage circuits. Perfect for switching 240V applianceslights, fans, etc.and even high-power motors at lower voltages.

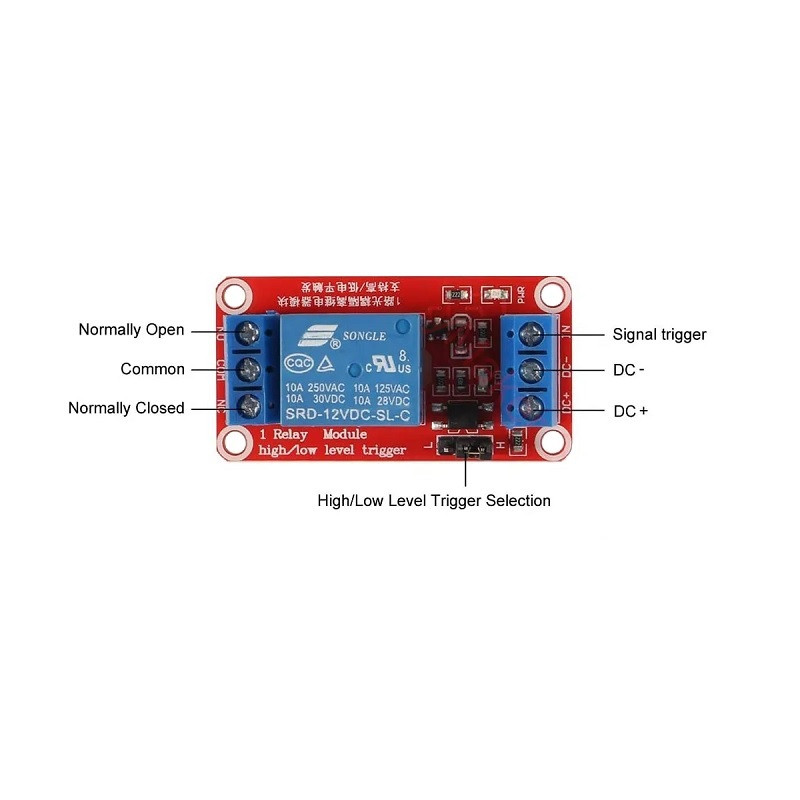

The board uses a high-quality relay, which can handle a maximum of 10A/250 V AC or 15A/125 V AC. Each relay has all three connectionscommon, normally open, and normally closedbrought out to three-pin screw terminals, which make it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. The board can accept control inputs within a wide range of voltages, from 3V to 5V. Power input and relay control signals are brought to header pins on the board. Hence, the board can be easily interfaced with our development boards using jumper wires.
Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability.
Specifications and Features:
- Version: 5V
- Trigger: High or Low Level
- No. of Channel: 1
- Equipped with high-current relay : 15A @ 125V AC or 10A @ 250V AC
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM)
- Dimensions (mm): 50 x 25 x 20
- Product weight (g): 16g
Package Includes:
1 x 1-Channel Relay Module 5V High and Low Level Trigger Relay Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 59 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
1 Channel Relay Module 5V High and Low Level Trigger Relay Module
- Product Code: EC-18145
- Availability: Out Of Stock
-
Rs.52.00
- (Excluding 18% GST)
