The 1.5 Amp Full Wave Bridge Rectifier (W10M) is a single phase Bridge Rectifier. Voltage Range is 50 to 1000 Volts and Current is 1.5 Amperes.

Features:-

• Low cost

• This series is UL recognized under component index

• High forward surge current capability

• Ideal for printed circuit board

• High temperature soldering guaranteed: 260 oC/10 second, 0.375”(9.5 mm) lead length at 5 lbs. (2.3 kg) tension.

Mechanical Data:-

• Case: Molded plastic body

• Terminal: Lead solderable per MIL-STD-202 E method 208 C.

• Polarity: Polarity symbols molded on case

• Mounting position: Any

• Weight: 0.042 ounce, 1.2 grams

Specification:-

Symbol	Parameter	Value	Units
VRRM	Maximum Repetitive Peak Reverse Voltage	100	V
VRMS	Maximum RMS Voltage	70	V
VDC	Maximum DC Blocking Voltage	100	V
I(AV)	Maximum Average Forward Rectified Output Curren	1.5	A
IFSM	Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load	50	A
VF	Maximum Instantaneous Forward Voltage at 1.0A	1	V
CJ	Typical Junction Capacitance	15	PF
RθJA	Typical Thermal Resistance	40	℃/W
TJ	Operating Temperature Range	-55 to +125	℃
TSTG	Storage Temperature Range	55 to +150	℃

Related Document:-

W10M Rectifier Data Sheet


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 11.8 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

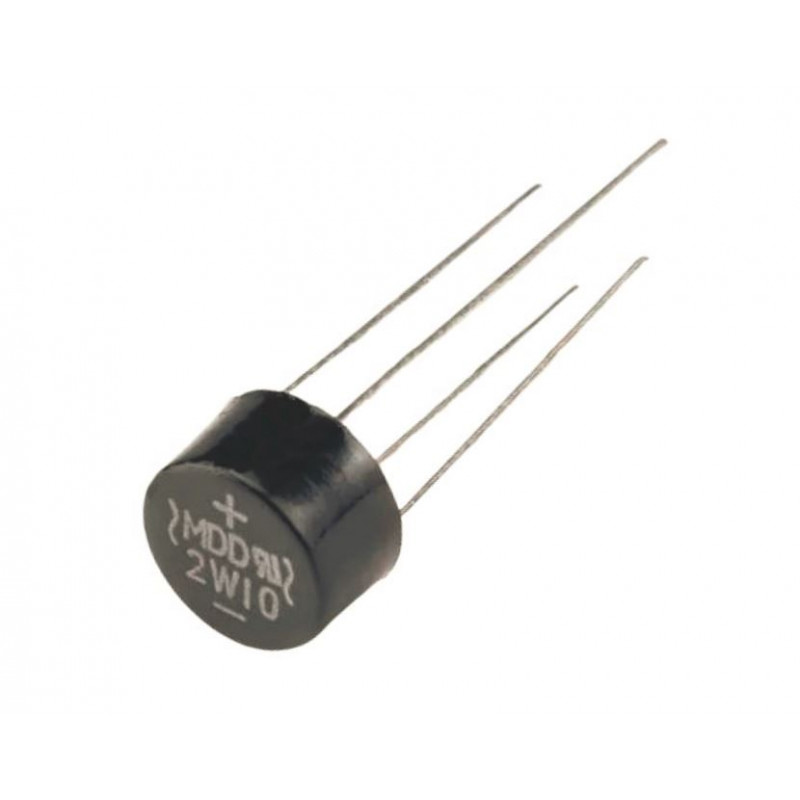

W10M 1.5A 1000V Full Wave Bridge Rectifier
