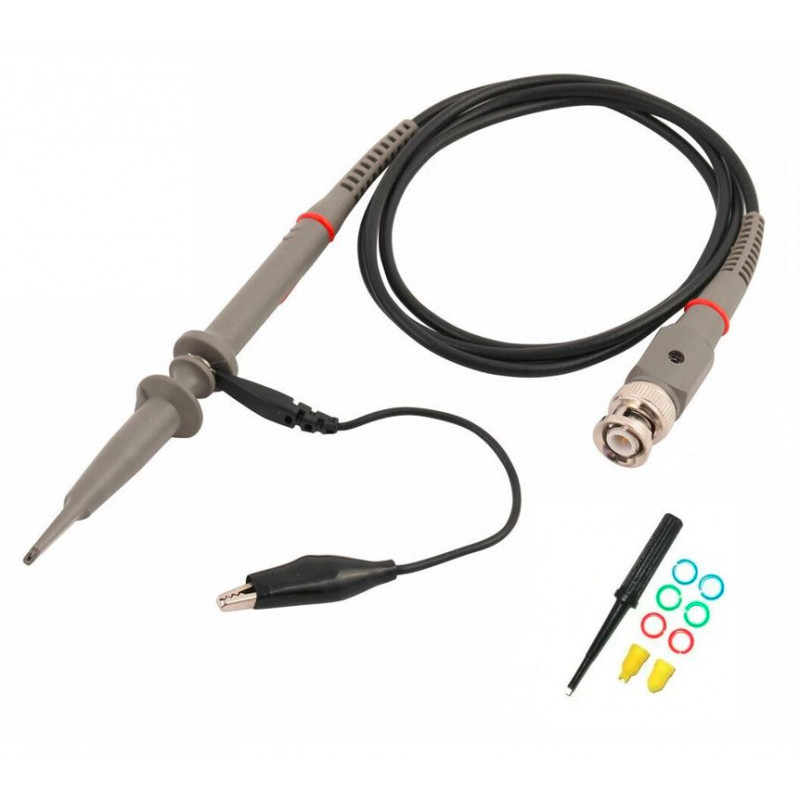

10x Oscilloscope Probe

• The BNC connector is very sturdy and fits nicely.
• Specially designed to make probing and measurement a much easier task.
• Scientific and industrial test oscilloscope probe kits, and long life, suitable for complex electromagnetism
• environment.

Specifications:-

• Bandwidth: 60MHz
• Rise time: 5.8ns
• Attenuation Ratio: 1X & 10X
• Input Resitance: 1X:1M ohm +/-2%, 10X:10M ohm +/-2%
• Input Capacitance: 1X:70pF~120pF 10X:14pF~18pF
• Maximum Input: 1X:200 Working Voltage(Vp-p)

                                  10X:600 Working Voltage(Vp-p)

• Compensation Range: 15~45pF
• Operation Environment: 0~50 C , 0~80%RH
• Storage Environment: -20~60 C , 0~90%RH
• Length: 120±2cm
• Weight: About 55gm

Package Includes:-

1 x 10x Oscilloscope Probe
