The B1203S-2WR3 DC to DC Power Module is a reliable converter designed to efficiently transform 12V input to a stable 3.3V output, delivering 2W of power with a current of 606mA. Notably, it features isolation with a voltage rating of 1500, ensuring electrical safety. This compact module is ideal for applications requiring voltage regulation and isolation, providing a versatile solution for various electronic systems.
Features:
- Easy to use
- Easy to mount
- Good quality product
- characteristic: Constant voltage input, isolated non-stabilized voltage single output,2W
- High reliability and long life design, continuous working time MTBF3.5 million hours (3500000Hrs)
Specifications:
- Product: Power Module Converter
- Model: B1203S-2WR3
- Power: 2 W
- Current: 606mA
- Output Voltage: 3.3v
- Input Voltage: 12v
- Working environment temperature: -40 to +85
- Storage temperture: -40 to +125
- Isolation voltage 1500VDC
- Transfer efficiency up to 90%
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable. Voltage variation range10%Vin
- Small SIP package
- International standard pin direct installation of PCB board.
Package Includes:
1 x 12V to 3.3V 2W 606mA DC to DC Isolation Voltage 1500VDC Power Module Converter B1203S-2WR3
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

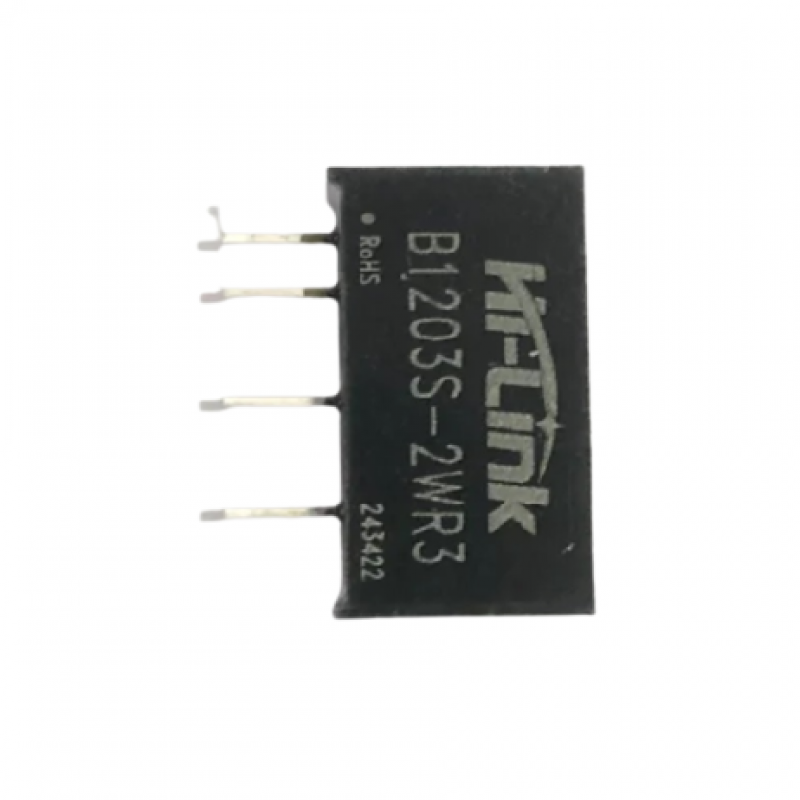

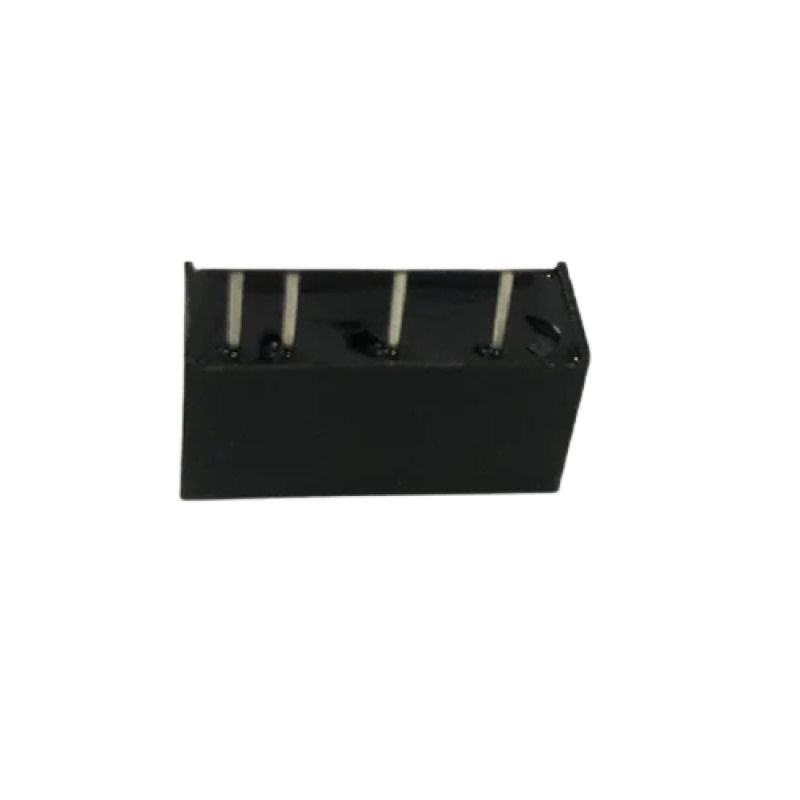

12V to 3.3V 2W 606mA DC to DC Isolation Voltage 1500VDC Power Module Converter B1203S-2WR3
- Product Code: EC-18565
- Availability: 1
-
Rs.149.00
- (Excluding 18% GST)
