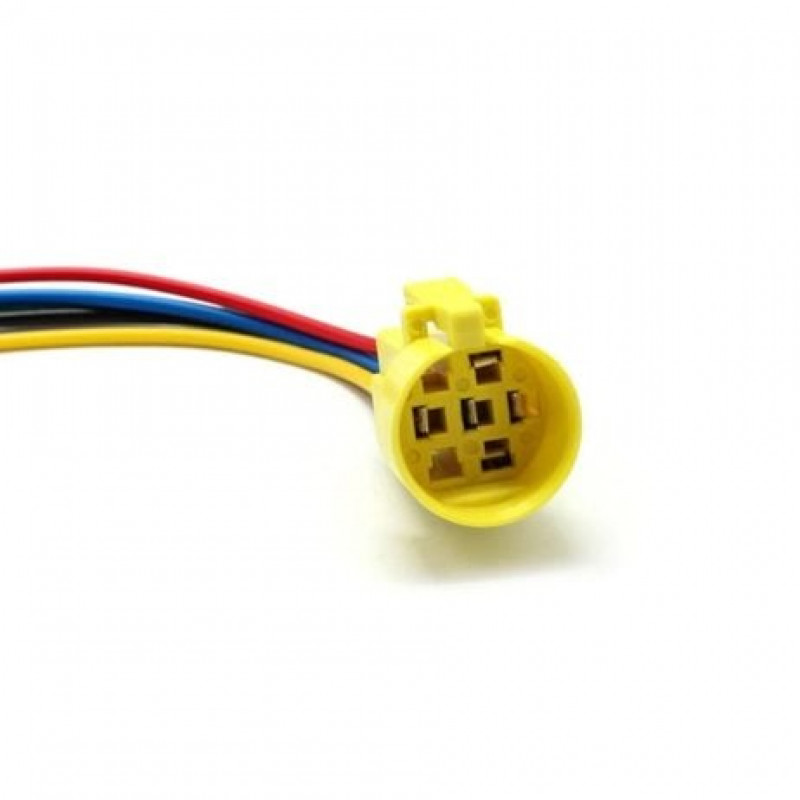

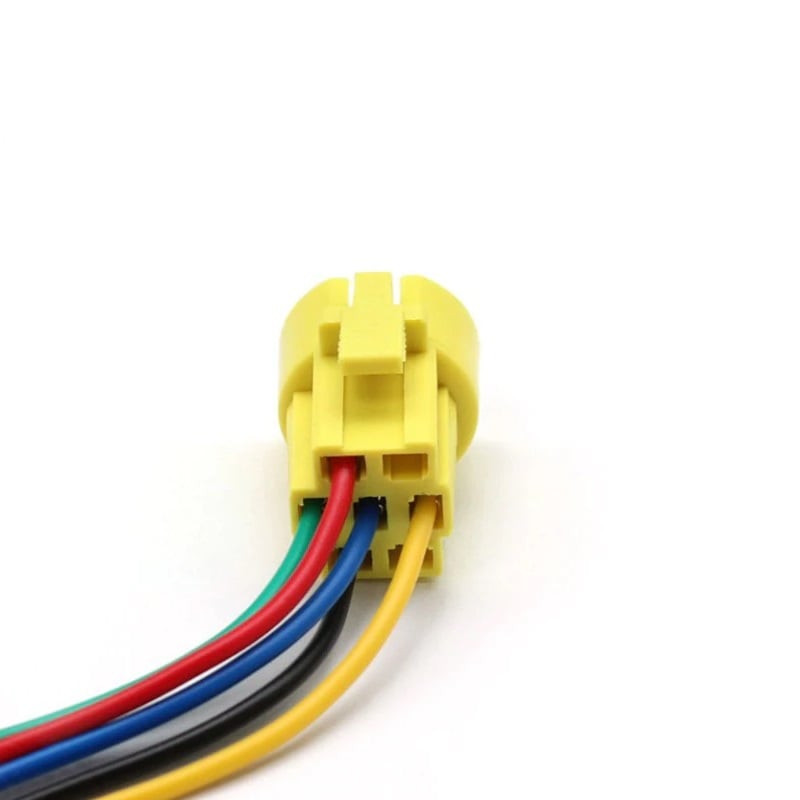

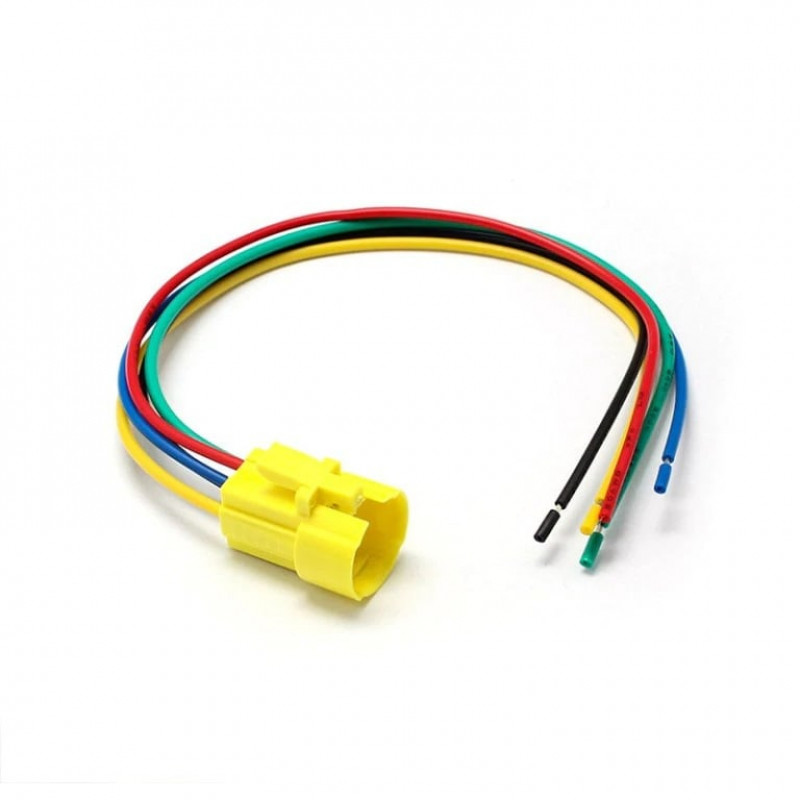

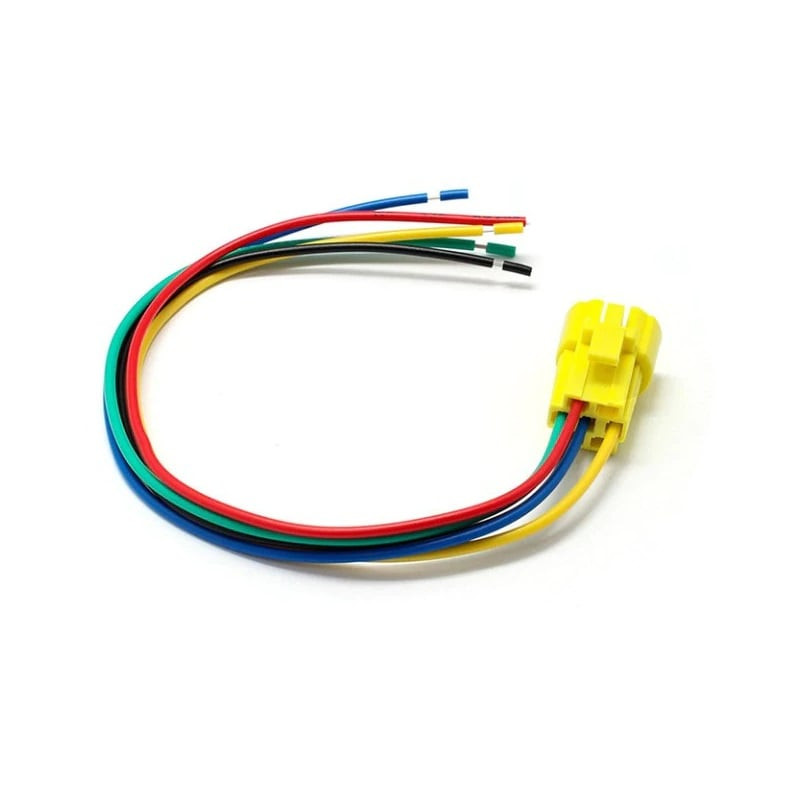

The standard tail has 5 wires. The red wire is connected to the positive pole of the LED lamp pin, the black wire is connected to the negative pole of the LED lamp pin, the green wire is the common pin (C) of the switch, and the blue wire is the normally open pin of the switch. (NO), the yellow wire is the normally closed pin (NC) connected to the switch.
Features:
- Latching Push Button Switch Socket Plug
- Compact in size
- Easy to connect
- Material: Plastic
- Color: yellow
- Mounting hole size: 16mm
- Widely used in for various additional electric equipment, relay, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light) or any circuit controls.
- LED can be on all the time or only on when switch is on, depending on how you wire it.
- Switch rating: 5A/250V AC, 5A/30V DC
Packages Includes:
1 x 16 mm switch connector
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
16 mm Latching switch connector switch
- Product Code: EC-24259
- Availability: 36
-
Rs.96.00
- (Excluding 18% GST)
