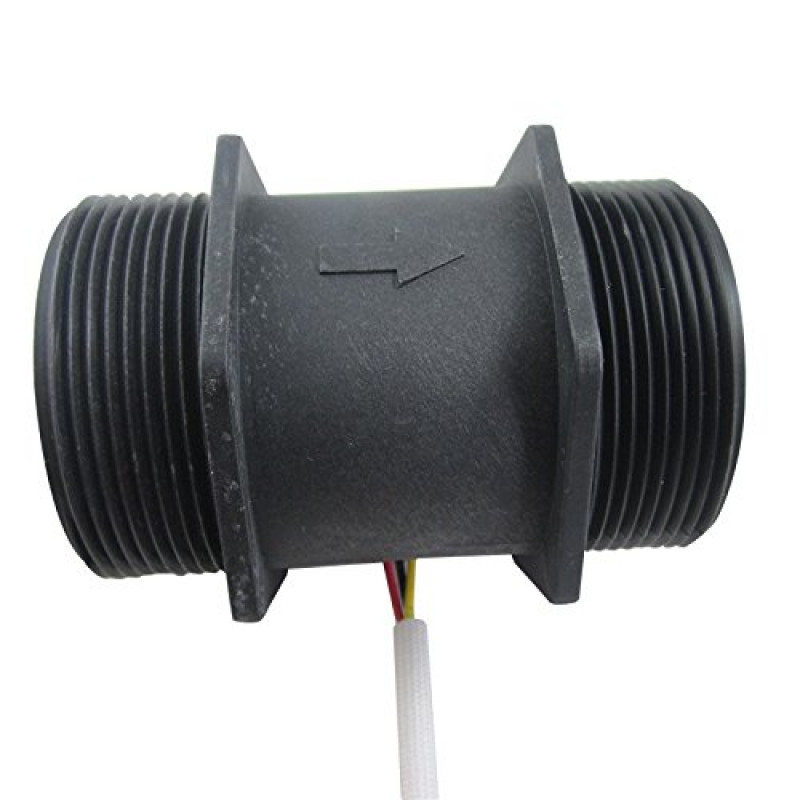

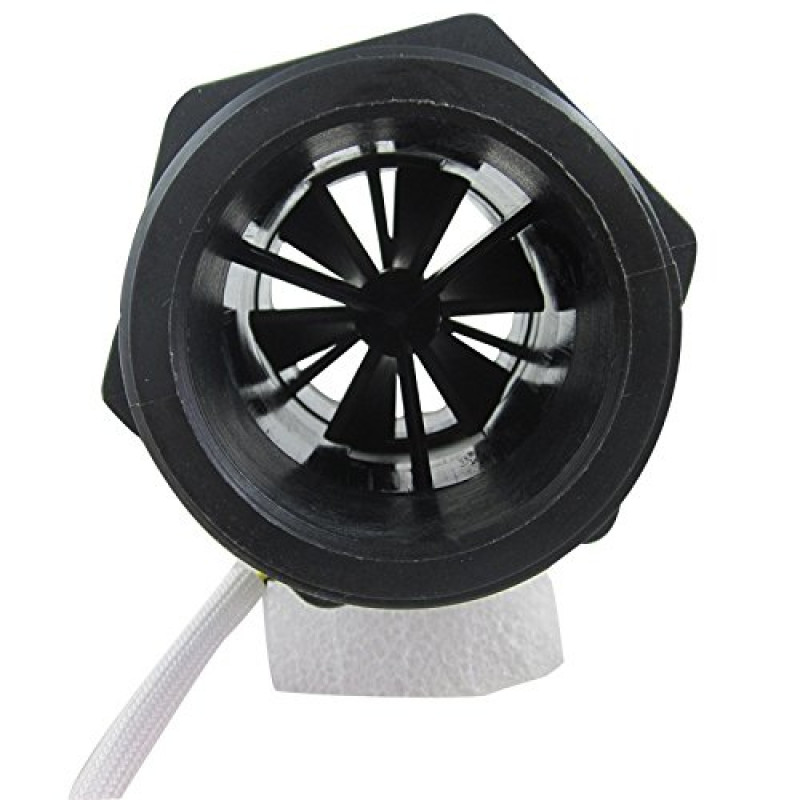

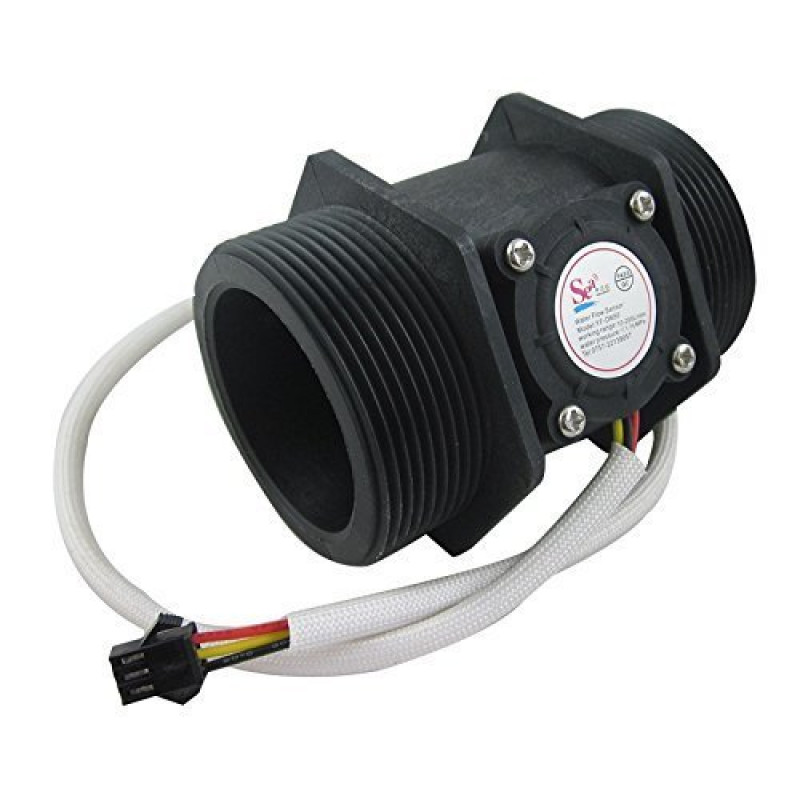

YF-DN50 is a large 2 inch diameter Water Flow meter Sensor that can be used to measure flow rate from 10 - 200 Liter/min.


Specifications Of 2 inch WATER FLOW SENSOR YF-DN50:-

  • Working voltage range:DC 5-18 V
  • Waterproof, Heat resistance, pressure resistance, cold resistance, Easy to install.
  • Flow range: 10-200 Liter per min
  • Sensor: Hall effect
  • Maximum current:15 mA (5 volt DC)
  • Operating Temp: up to 80C,Operating humidity:35%-90%RH
  • Allow compression: Water pressure 1.75 Mpa below
  • Insulation resistance: >100M OHM
  • Storage Temperature: -25-80C
  • Storage humidity: 25%-95%RH
  • Output Waveform: Square Wave,output pulse signal.
  • Size: 92mm x 68mm

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1745.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

2 inch Water Flow Sensor - YF-DN50

  • Product Code: EC-3056
  • Availability: 107
  • Rs.1679.00
  • (Excluding 18% GST)
