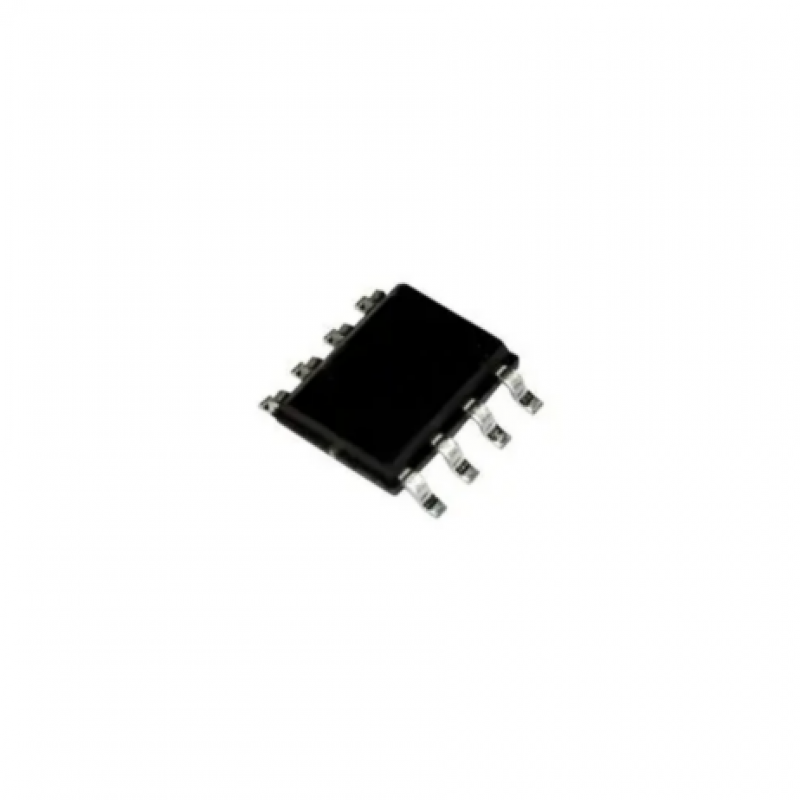

The 24LC64-I/SN is a 64Kbit serial I2C EEPROM (Electrically Erasable Programmable Memory) in 8 pin SOIC package. The device is organized as a single block of 8K x 8bit memory with a two wire serial interface. Low voltage design permits operation down to 1.7V with standby and active currents of only 1A and 3mA respectively. It has been developed for advanced low power applications such as personal communications or data acquisition. The 24LC64 has a page write capability for up to 32Bytes of data. Functional address lines allow up to eight devices on the same bus for up to 512Kbits address space. It features more than 1 million erase/write cycles and data retention is greater than 200 years.

Specifications:

IC Case / Package: SOIC
Operating Temperature Min: -40C
No. of Pins: 8Pins
Product Range: 64Kbit I2C Serial EEPROM
IC Mounting: Surface Mount
Operating Temperature Max: 85C
Supply Voltage Min: 2.5V
Supply Voltage Max: 5.5V
Interfaces: Serial I2C (2-Wire)
Memory Density: 64Kbit
Clock Frequency Max: 400kHz
Memory Configuration: 8K x 8bit

Package Includes:

1 x 24LC64-I/SN-MICROCHIP-24LC64-I/SN-EEPROM, 64 Kbit, 8K x 8bit, Serial I2C (2-Wire), 400 kHz, SOIC, 8 Pins
