These are also called as Elastomer Couplings because they are equipped with plastic or rubber material between the pair of aluminum jaws. Elastomeric types of couplings are capable of providing shock absorption. Minimum backlash is another great advantage of this Aluminum OD:25mm L:33mm Flexible Spider Shaft Coupling Bore: 5x12mm.

This Flexible coupling with the outer diameter of 25mm and the length of 33mm is machined aluminum coupling. They consist pair of jaw hubs that mate with elastomeric spiders.

The screws that clamp the shafts will be tightened, but not too much. These types of clamping couplings will not damage the shafts. It offers a very easy connection and disconnection. They are useful in reducing the angular and axial misalignment.

The main attraction of this Aluminum OD:25mm L:33mm Flexible Spider Shaft Coupling Bore: 5x12mm is its vibration damping ability.

One important thing to consider is all elastomers will break down over time. Avoid using elastomeric couplings in environments that will expose it to high temperatures or UV light because operating in these environments will reduce the couplings lifecycle considerably.

Some of the important features of flexible shaft coupling are,

  1. A coupling is a device which transmits power and torque. Couplings do not normally allow disconnection of shafts during operation. However, there are torque limiting couplings which can slip or disconnect when some torque limit exceeds.
  2. By careful selection, installation and maintenance of couplings, substantial savings are possible in reduced maintenance costs and downtime.
  3. It can protect the driving and driven shaft members against harmful effects because of misalignment of the shafts, sudden shock loads, shaft expansion or vibrations etc.


Features :

  1. Corrosion resistance and High Durability
  2. The structure is simple which makes it easy to install
  3. Torsional stiffness: Zero backlash
  4. Low moment of inertia offering constant velocity


Package Includes :

1 x Aluminum OD:25mm L:33mm Flexible Spider Shaft Coupling Bore: 5x12mm



Specifications :-

Material

Aluminum

Length (mm)

33

Outer Diameter (OD)(mm)

25

Bore Diameter [d1] (mm)

5

Bore Diameter [d2] (mm)

12

Weight(gm)

34

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 463.74 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

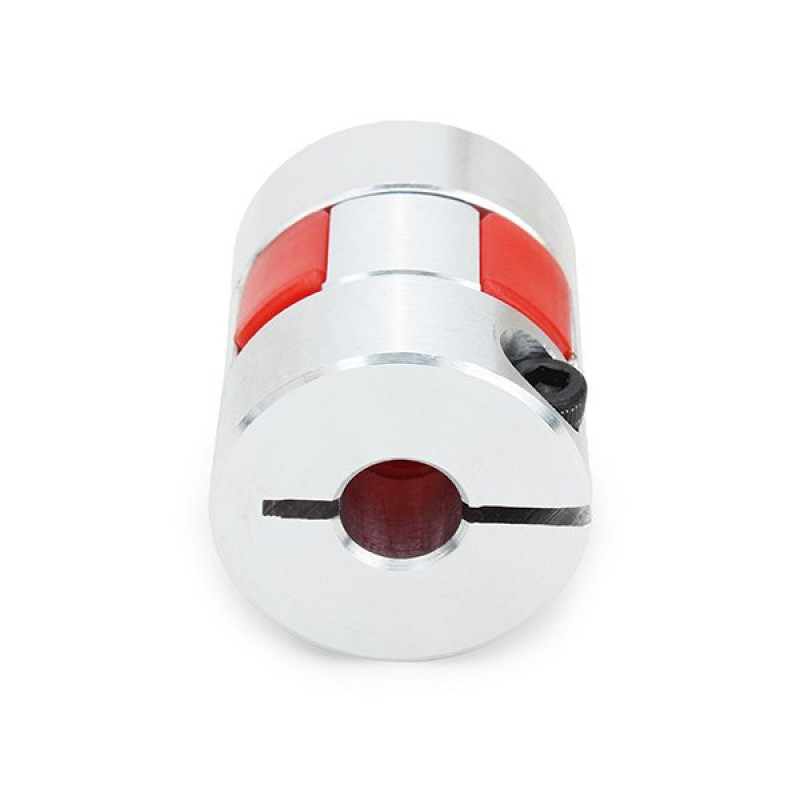

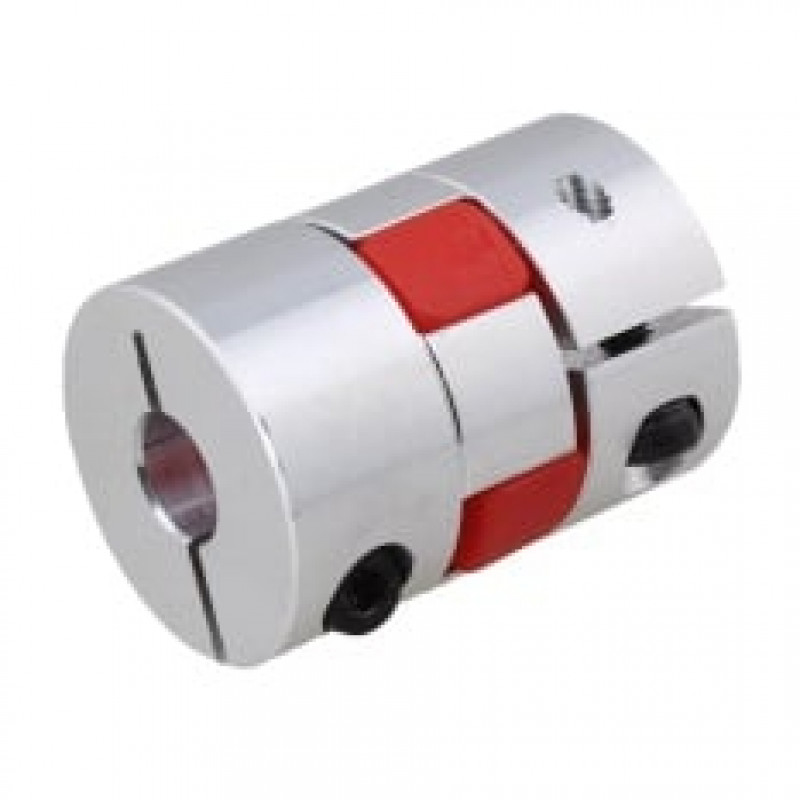

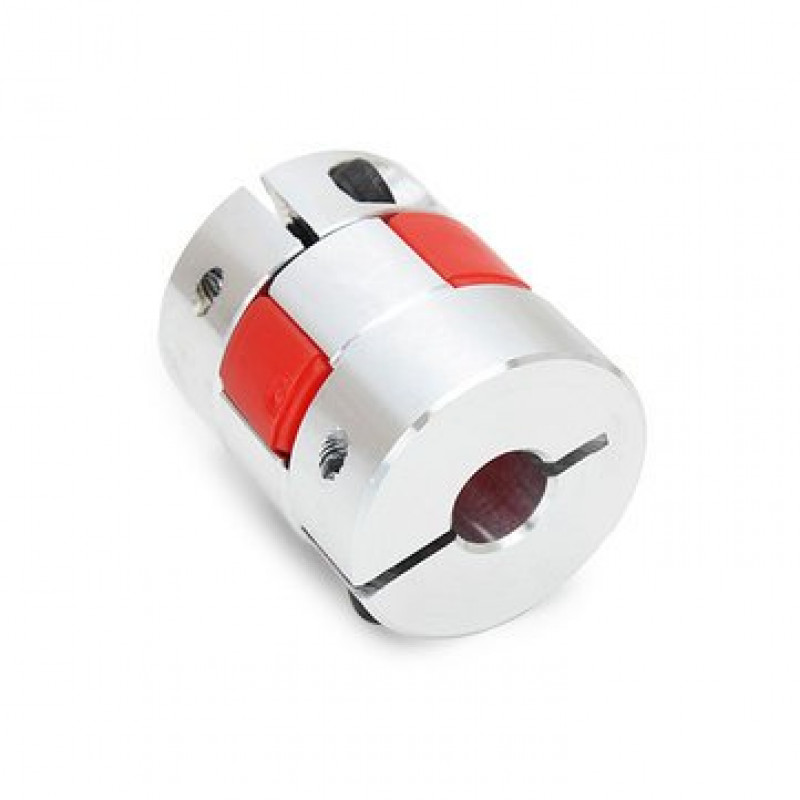

Aluminum OD:25mm L:33mm Flexible Spider Shaft Coupling Bore: 5x12mm

  • Product Code: EC-6186
  • Availability: 6
  • Rs.393.00
  • (Excluding 18% GST)
