This MS NEMA17 Shaft Coupling 5mm X 8mm is made up of hardened Mild Steel. The Mild Steel is much heavier and much denser material than the Aluminum.
The Mild Steel NEMA Shaft Coupling is slightly cheaper than the Aluminium Coupling but yet stronger than Aluminium coupling. Hence they are more rigid couplings.
This MS coupling is painted with the black colour to make it corrosion resistant which also makes it more attractive in look. By careful installation and maintenance of couplings, substantial savings can be made to reduce maintenance costs and annoying downtime.
They can firmly hold the shaft of the motor and other peripherals with the help of Grub Screws which can be tightened rigidly by using Allen Key which we have included in this product pack.
Aluminium couplings are found in 3D Printers, CNC machines and other DIY projects to couple Stepper motors and 8mm rods/threaded rods/precision trapezoidal rods.
Note: That the bore diameters of this product are as d1=5mm and d2=8mm.
Features :
- Exhibits good strength.
- Hardened Mild Steel couplings.
- Fit for all CNC projects

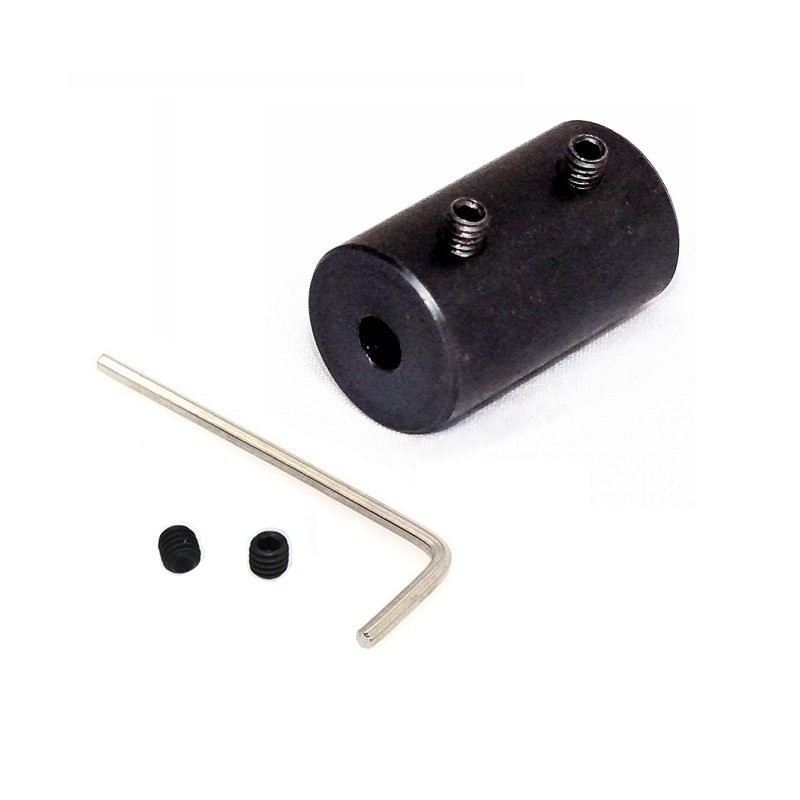

Package Includes :
1 x MS NEMA17coupling.

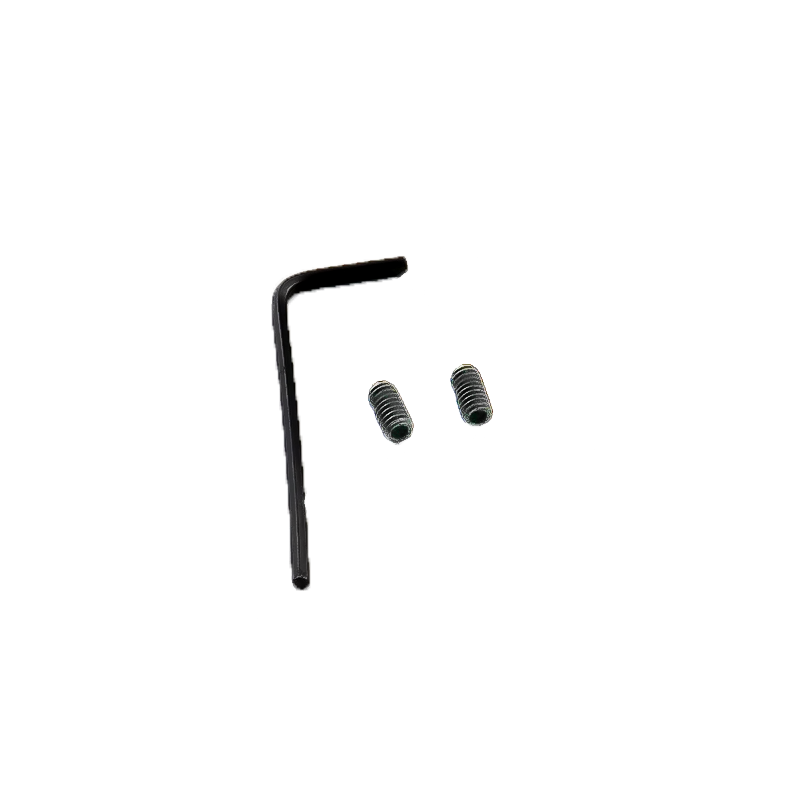

1 x Medium Quality Allen Key 2mm
2 x MS M4x6 Socket Set Screws(Allen Grub)
Specifications :-
| Material | Mild Steel |
| Length (mm) | 30 |
| Outer Diameter (OD)(mm) | 16 |
| Bore Diameter [d2] (mm) | 8 |
| Bore Diameter [d1] (mm) | 5 |
| Weight(gm) | 38 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 93.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

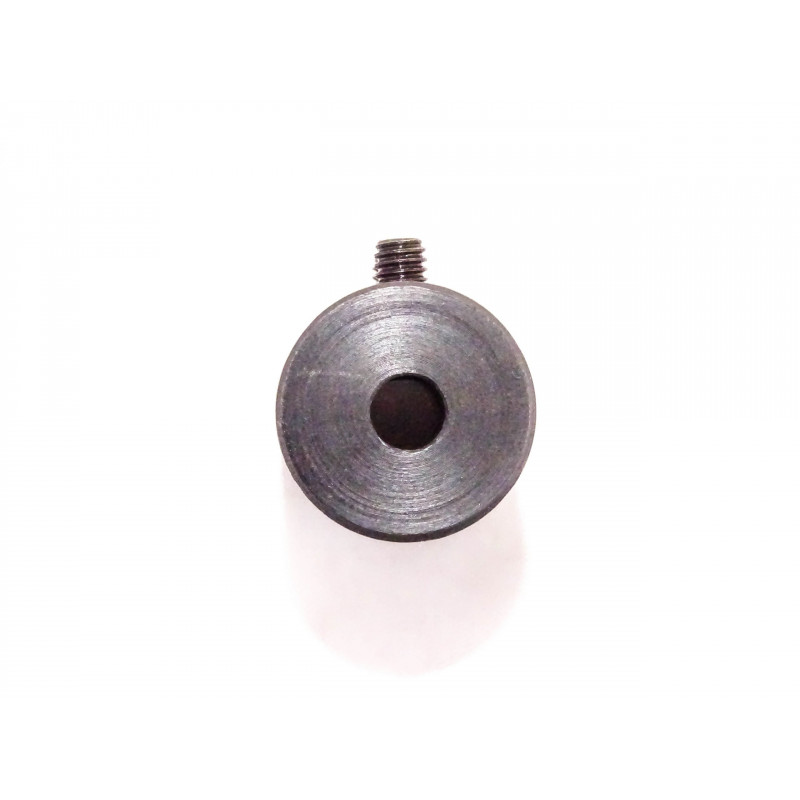

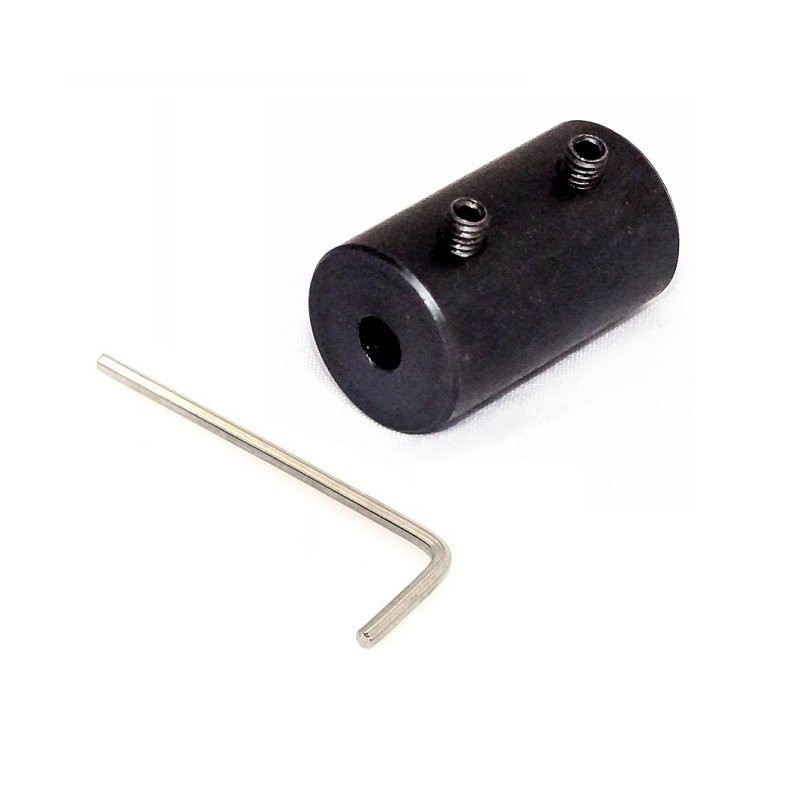

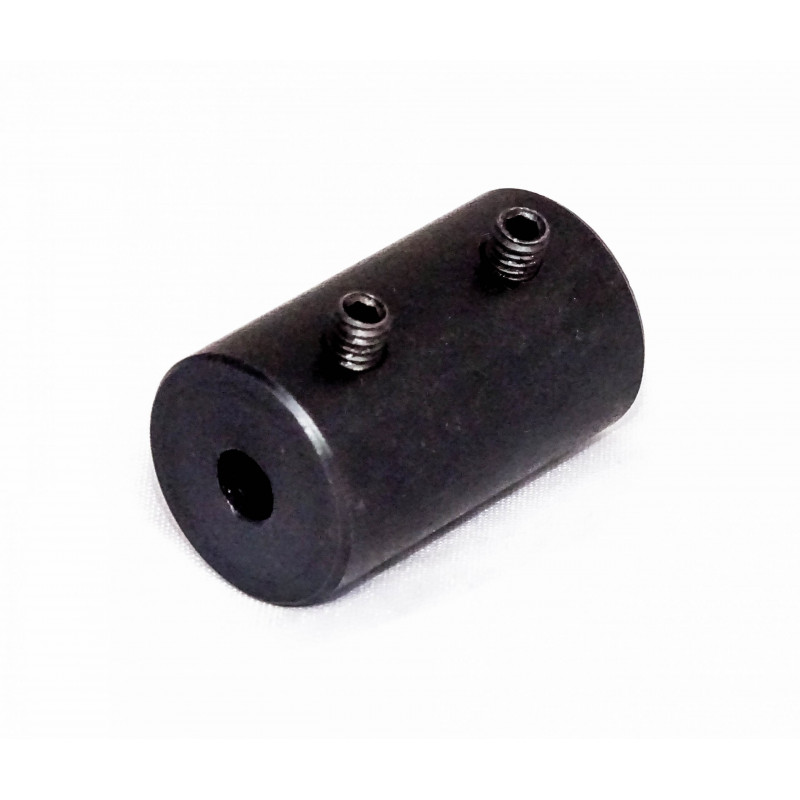

MS NEMA17 Shaft Coupling 5mm X 8mm
- Product Code: EC-6193
- Availability: 74
-
Rs.70.00
- (Excluding 18% GST)
