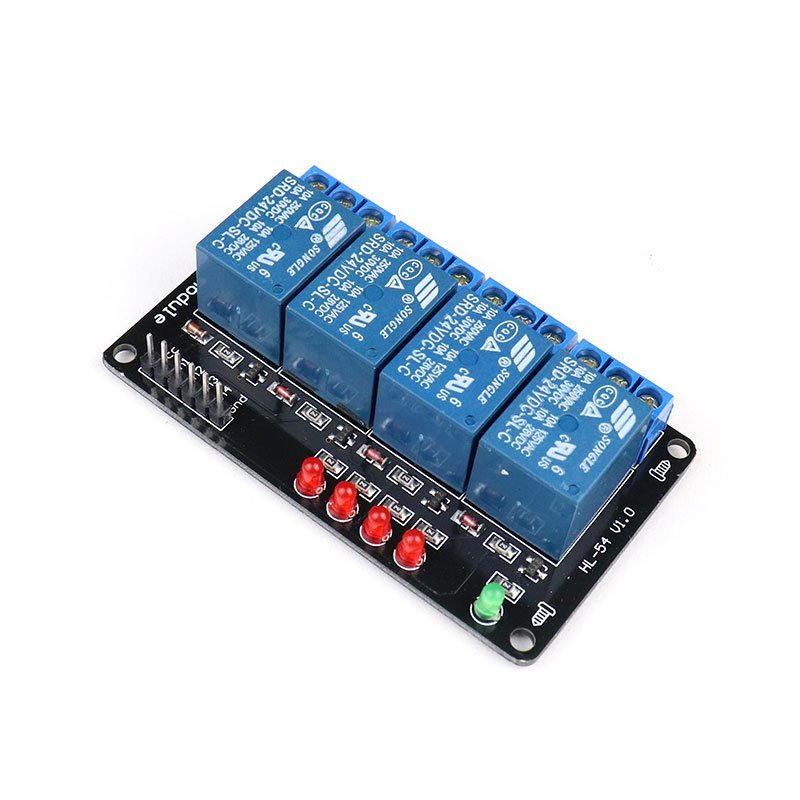

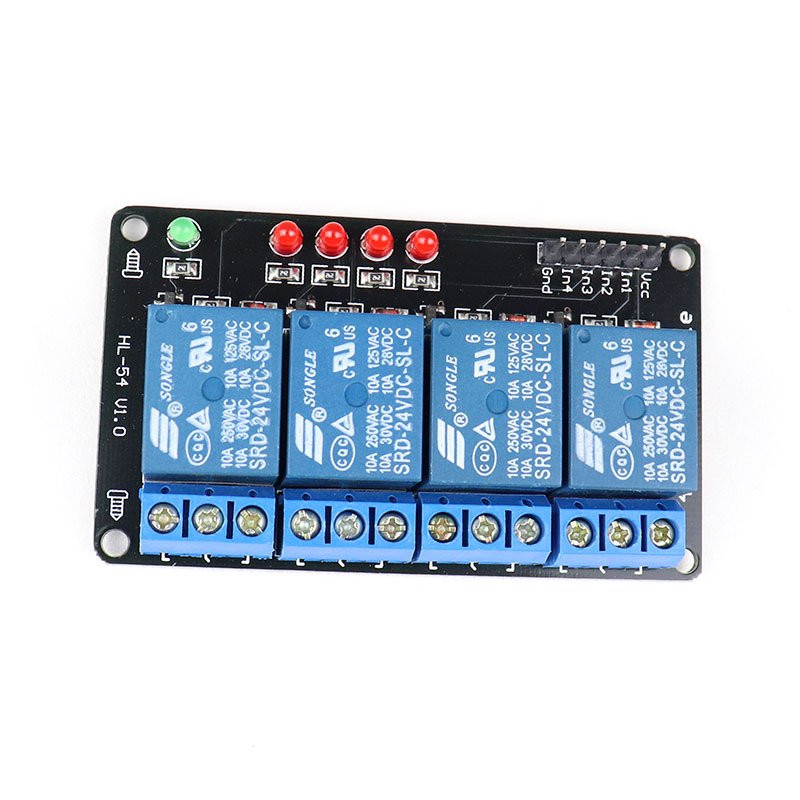

This is a 4 Channel 24V Relay Module. Using a high-power relay, the maximum control load DC 30V 10A / AC 250V 10A. In line with international safety standards, the control area and the load area with isolation slot. Each channel has a relay on the LED indication.


Features:

  1. Header Connector for connecting power and trigger voltage.
  2. LED on each channel indicates relay status.
  3. Power Battery Terminal (PBT) for easy relay output and aux power connection.


Package Includes:

1 x 4 Channel 24V Relay Module



Specifications :-

Trigger Voltage (VDC)

24

Trigger Current (mA)

20

Switching Voltage (VAC)

250@10A

Switching Voltage (VDC)

30@10A

Operating Temperature (C)

-40 to 85

Opt. Relative Humidity(RH)

20% 85%

Storage condition ()

65 to 125

Length (mm)

74

Width (mm)

44

Height (mm)

17

Weight (gm)

50

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 247.8 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

4 Channel 24V Relay Module

  • Product Code: EC-6585
  • Availability: 8
  • Rs.151.00
  • (Excluding 18% GST)
