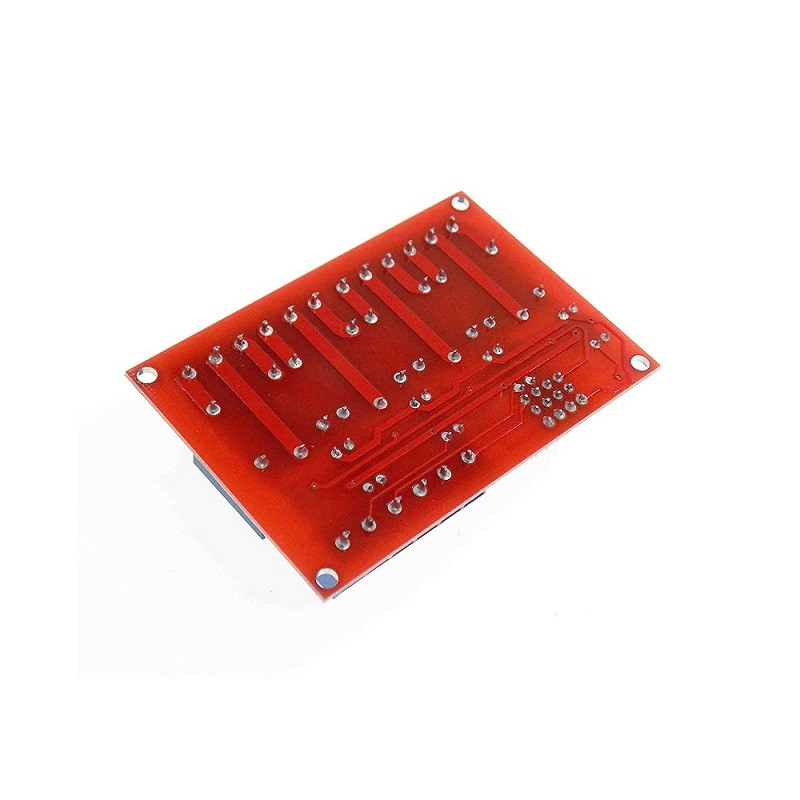

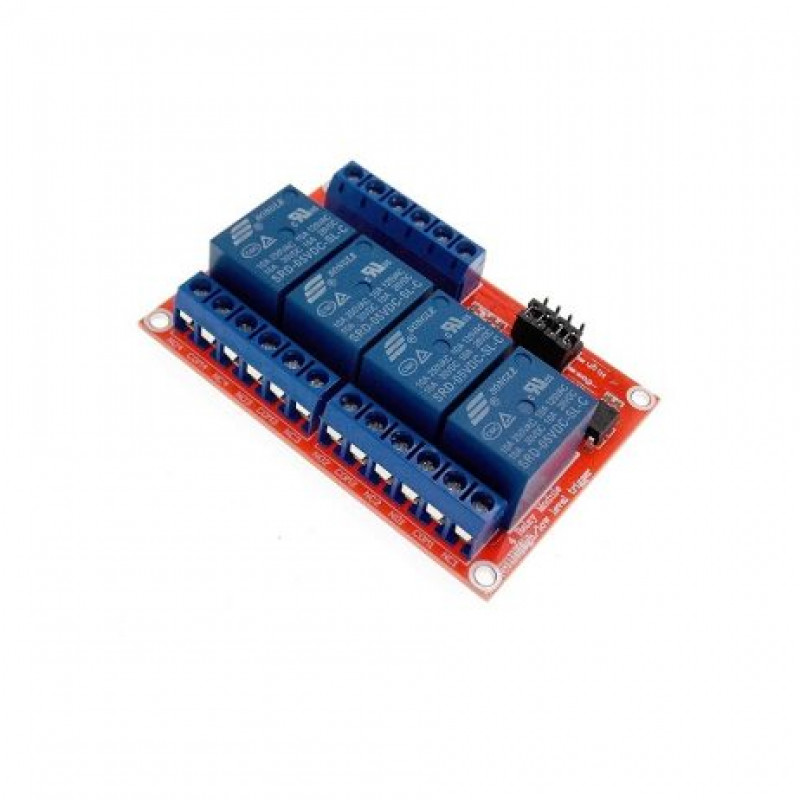

This 4-Channel Relay Module 5V High and Low-Level Trigger Relay Module comes with max Load for Output: AC 250V/10A, DC 30V /10A. Trigger current of 20 mA can be used to all kinds of single-chip microcomputer IO control triggering, normally opening and closing two work modes. By switching the trigger level selection terminal to set 3-5V high level or 0-1.5V low-level trigger controlled,

Adopting patch piece opto-isolator, green power light, red relay status light, strong drive capability, stable performance, and clear work conditions This product is known as the 4 Channel 5V Relay Module, the 12V 4-Channel Relay Module, and the 5V 4 Channel Relay Optocoupler Isolation Module.

Trigger Mode Configuration:

The module has a trigger level selection terminal; for each relay, the trigger level can be individually controlled, through the short-circuit cap to control. COM side is common, in the middle; When the LOW (L) terminal is connected to the common terminal, it is a low-level trigger; when the HIGH (H) terminal is connected to the common terminal, it is a high-level trigger.

Input Interface:

1. DC+: 5V positive power supply
2. DC-: 5V negative power supply
3. IN: corresponding with trigger signal level of relay

Output Interface:

1. NO: normally open interface
2. COM: common interface
3. NC: normally close interface

Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability.

Features and Specifications:

1. Work Voltage: 5VDC
2. Quiescent Current: 5 mA
3. Max Current: 190 mA
4. Trigger Current: 3-5 mA
5. Low-Level Trigger Current: 0-1.5V
6. High-Level Trigger Current: 3-5V
7. 4 Fixed Holes for Screw: Diameter 3.1mm
8. Length: 73 mm
9. Width: 50 mm
10. Height: 18.5 mm
11. Weight: 57g

Package Includes:

1 x 4 Channel Relay Module 5V High and Low-Level Trigger Relay Module
