The NAND gate is monolithic complementary MOS (CMOS) integrated circuits. The N- and P-channel enhancement mode transistors provide a symmetrical circuit with output swings essentially equal to the supply voltage. This results in high noise immunity over a wide supply voltage range. No DC power other than that caused by leakage current is consumed during static conditions. All inputs are protected against static discharge and latching conditions.
Features:-
- Two Independent 4-input NAND Gates
- Standard Pin Configuration
- Wide Operating Voltage Range
- Operating Temperature to 85°C
- Low Power CMOS
Specifications:-
| Parameter | Specification |
| Voltage at Any Pin | VSS -0.3V to VDD +0.3V |
| Operating Temperature Range | -40°C to + 85°C |
| Storage Temperature Range (TS) | -65°C to +150°C |
| Power Dissipation (PD): Dual-In-Line | 700 mW |
| Operating Range (VDD) | VSS +3.0V to VSS +15V |
| Lead Temperature (TL) | 260°C |
(For detailed specification refer Data Sheet)
Related Document:-
|
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 14.16 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

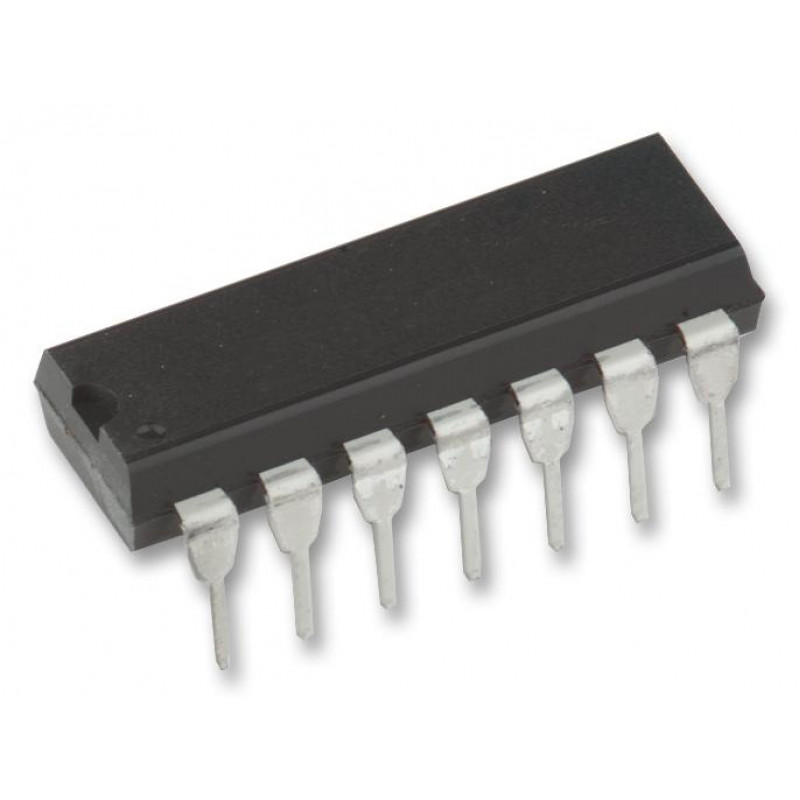

CD4012 Dual 4-Input NAND Gate IC DIP-14 Package
- Product Code: EC-1816
- Availability: 1534
-
Rs.12.00
- (Excluding 18% GST)
