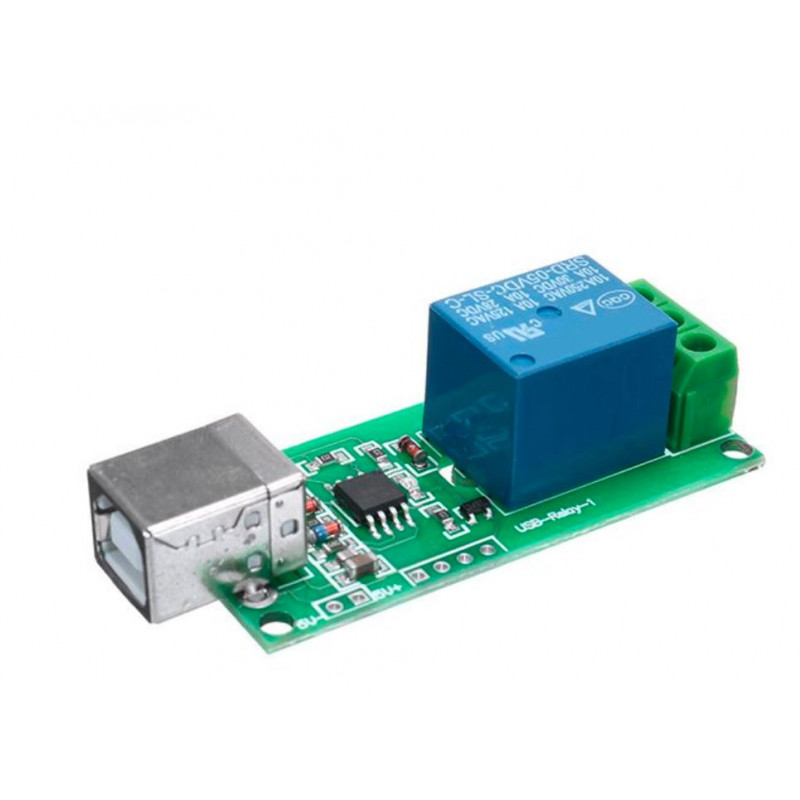

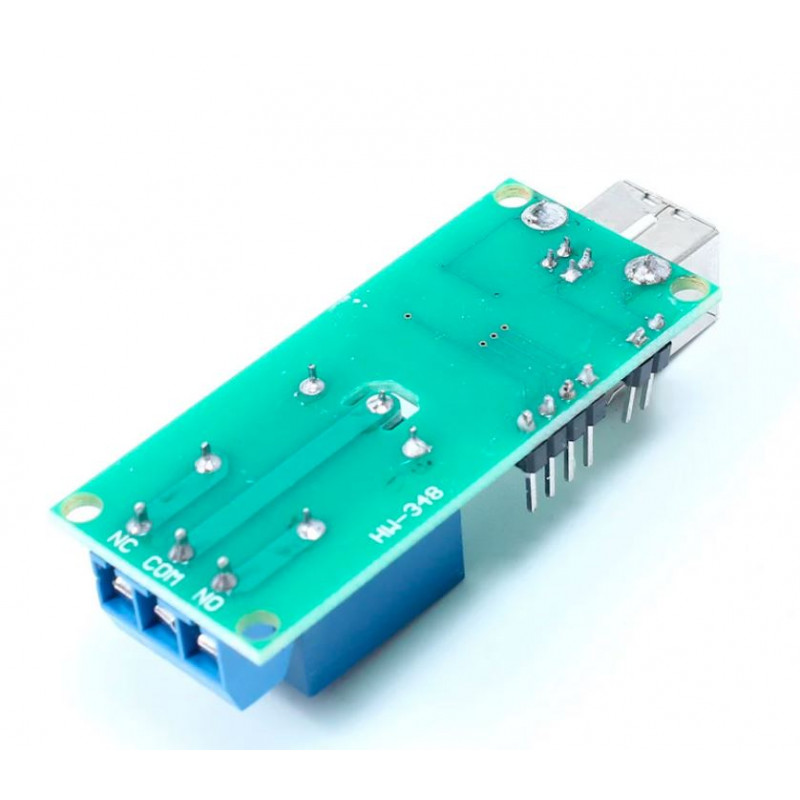

The USB Control 1 Channel Module 5V Relay Module has the Onboard USB Control Module with one 5V Relay Module with a square USB port, and the connection is stable.

It has a high-performance USB controlling chip and genuine relay on board as well as military-level PCB board workmanship. The USB Control 1 Channel Module 5V Relay Module supports Win7, XP 32 system.

The module board has fully machinery processing. And all patch parts manufacturing and each module are tested OK before shipment for high reliability.

Features:-

• The onboard square USB interface, stable connection.
• Use imported high-performance USB control chip.
• Application code: Green indicates that the  relay is in the closed state, the red disconnect
• Military-grade PCB board production.
• Use genuine pine music relay
• Support Windows 7, XP 32-bit systems

Specifications:-

• Operating Voltage (VDC) : 5
• Supply Current (A) : 0.3
• Switching Voltage (VAC) : 250@10A
• Switching Voltage (VDC) : 30@10A
• Operating Temperature (°C) : -40 to 85
• Opt. Relative Humidity(RH) : 20% ～ 85%
• Storage condition (℃) : -40 to 80

Package Includes:-

1 x 1 Channel 5V USB Control Relay Module
