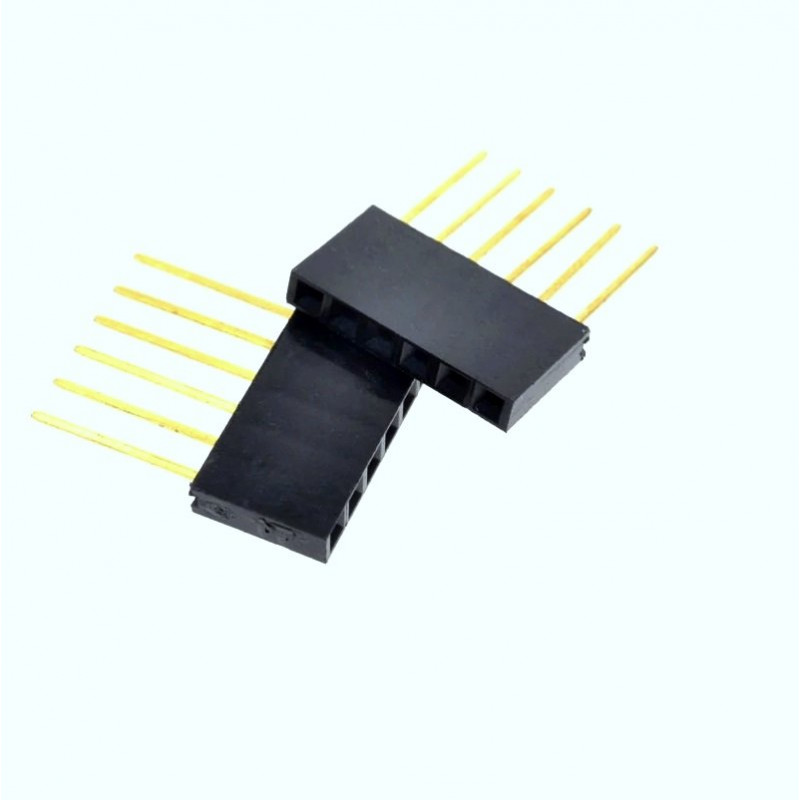

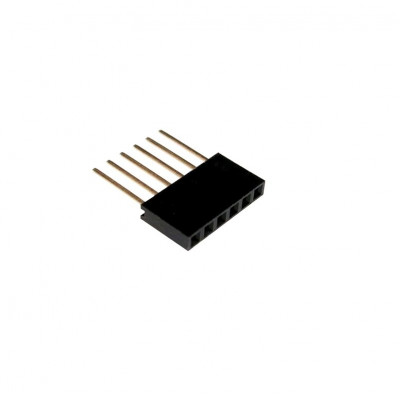

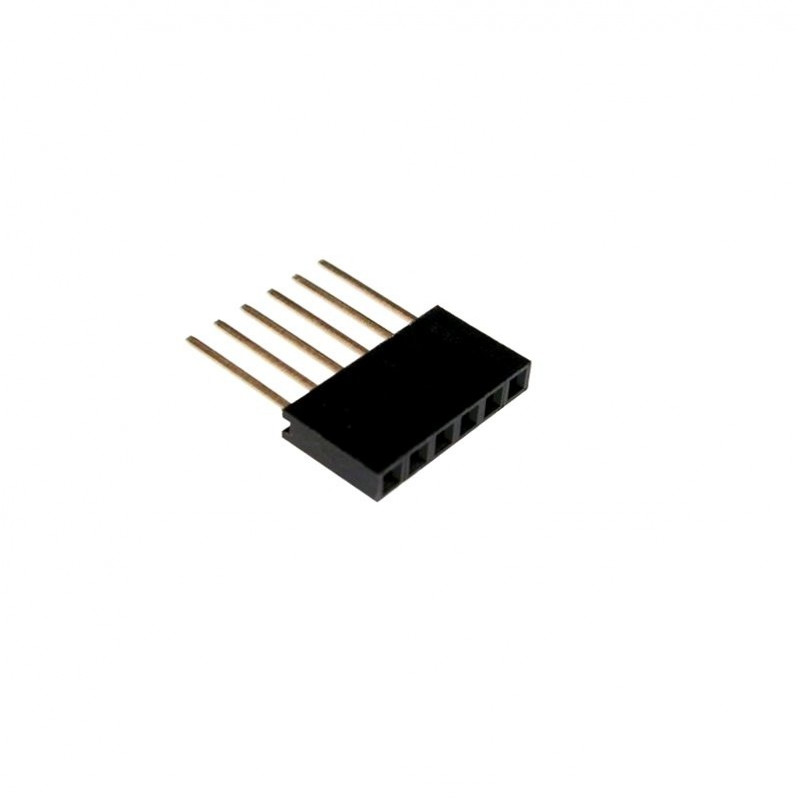

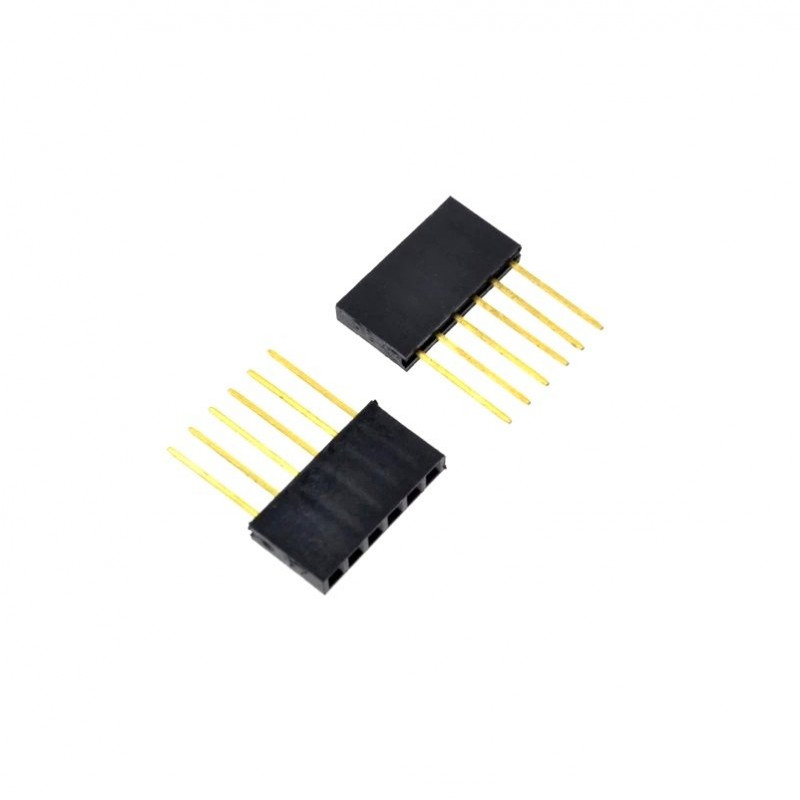

6 Pin Female 11mm tall stackable Header Connector for Arduino. The female header is suited for a variety of stuffing in Arduino shield board control panel. Stitch length is 11mm and great for stacking Arduino shields.
Stacking headers are a type of breadboard pitch female connector with extended male pins on the bottom. These extended male pins are compatible with the female sockets found on many popular microcontrollers (such as the Arduino) and allow for circuit boards to be connected (without a mess of wires) and still be removable.
This specific header has 1 row of 6 pins. The Female Sockets measure 8.5mm tall while the male pins measure 11mm long. Each order includes one 6 pin stacking header.
Features:
- Bass metal contact points
- Best Built Quality
- Breadboard compatible
Package Includes:
1 x 6 Pin Female 11mm tall stackable Header Connector for Arduino.
Specifications :-
| Pitch | 2.54mm. |
| Contact Pin Material | Brass |
| Plastic height | 8.5mm |
| Pin Length | 11mm |
| Gender of Connector | Female |
| Number of Pins | 6 Pin |
| Type of Row | Single-Row |
| Body Orientation | Straight |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 21.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
6 Pin Female 11mm tall stackable Header Connector for Arduino
- Product Code: EC-6432
- Availability: 11
-
Rs.18.00
- (Excluding 18% GST)
