The 74595 consists of an 8−bit shift register and an 8−bit D−type latch with three−state parallel outputs. The shift register accepts serial data and provides a serial output. The shift register also provides parallel data to the 8−bit latch. The shift register and latch have independent clock inputs. This device also has an asynchronous reset for the shift register. The 74595 directly interfaces with the SPI serial data port on CMOS MPUs and MCUs.
Features:-
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• ESD Performance: HBM 2000 V; Machine Model 200 V
• Chip Complexity: 328 FETs or 82 Equivalent Gates
• These are Pb−Free Devices
Specification:-
Symbol | Parameter | Value | Units |
VCC | Supply Voltage | – 0.5 to + 7.0 | V |
Vin | Input voltage | – 0.5 to VCC + 0.5 | V |
Vout | Output Voltage | – 0.5 to VCC + 0.5 | V |
Iin | Input Current | ±20 | mA |
Iout | Output Current | ±35 | mA |
Related Document:-
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 24.78 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

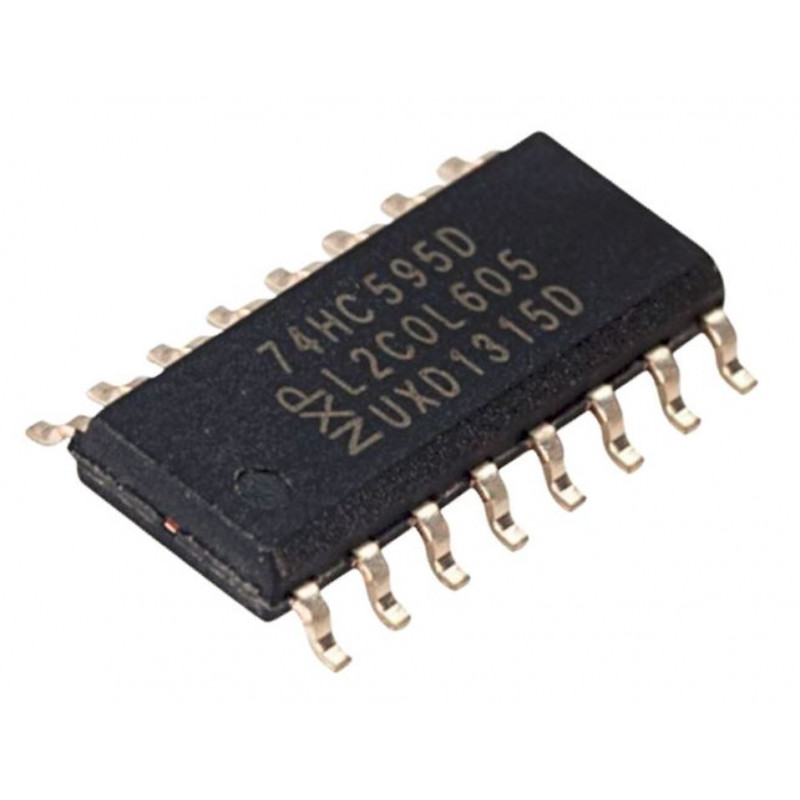

74595 IC (SMD Package)- 8-bit serial-in/serial or parallel-out shift register IC
- Product Code: EC-0649
- Availability: 27859
-
Rs.14.00
- (Excluding 18% GST)
