The 74HC273 edge triggered flip-flops utilize advanced silicon-gate CMOS technology to implement D-type flipflops. They possess high noise immunity, low power, and speeds comparable to low power Schottky TTL circuits. This device contains 8 master-slave flip-flops with a common clock and common clear. Data on the D input having the specified setup and hold times is transferred to the Q output on the LOW-to-HIGH transition of the CLOCK input. The CLEAR input when LOW, sets all outputs to a low state. Each output can drive 10 low power Schottky TTL equivalent loads. The 74HC273 is functionally as well as pin compatible to the 74LS273. All inputs are protected from damage due to static discharge by diodes to VCC and ground.
Features:-
• Typical propagation delay: 18 ns
• Wide operating voltage range
• Low input current: 1 µA maximum
• Low quiescent current: 80 µA (74 Series)
• Output drive: 10 LS-TTL loads
Specification:-
| Symbol | Parameter | Value | Unit |
| VCC | Supply Voltage | − 0.5 to + 7.0V | V |
| VIN | DC Input Voltage | − 1.5 to VCC + 1.5V | V |
| VOUT | DC Output Voltage | − 0.5 to VCC + 0.5V | V |
| IIK, IOK | Clamp Diode Current | ± 20 | mA |
| IOUT | DC Output Current, per pin | ± 25 | mA |
| ICC | DC VCC or GND Current, per pin | ± 50 | mA |
| TSTG | Storage Temperature Range | − 65°C to + 150 | °C |
| PD | Power Dissipation | 500 | mW |
| TL | Lead Temperature | 260 | °C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 44.84 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

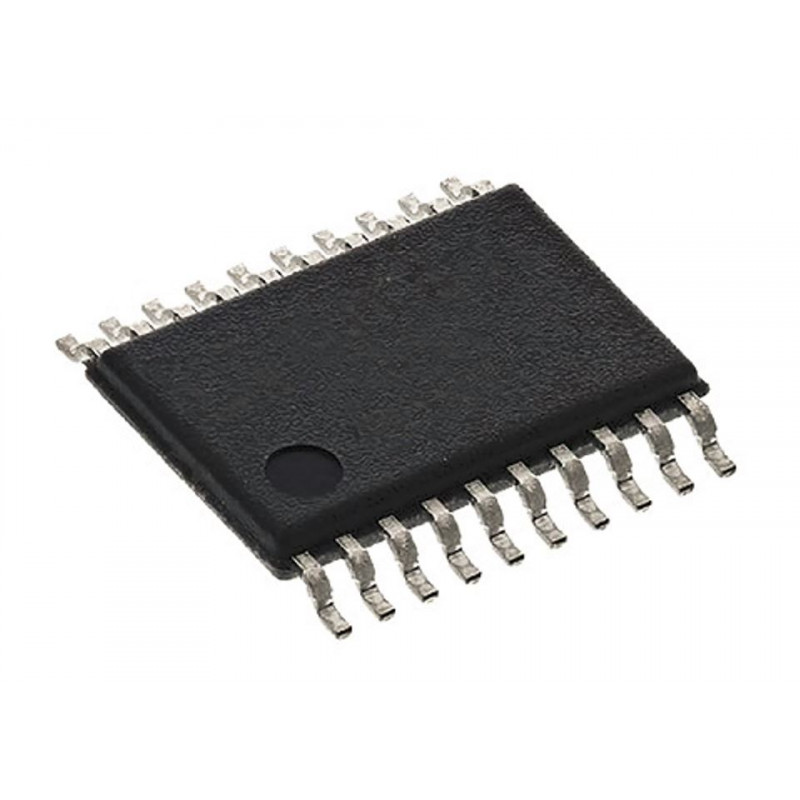

74HC273 IC - (SMD Package) - Octal D-Type Flip-Flop with Reset IC (74273 IC)
- Product Code: EC-2491
- Availability: 42
-
Rs.38.00
- (Excluding 18% GST)
