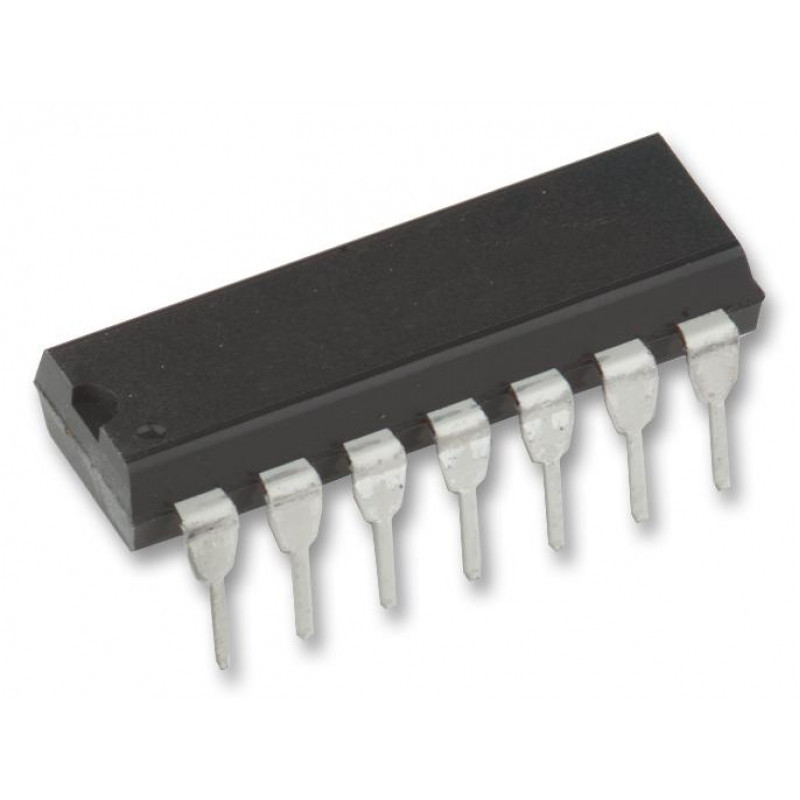

74HC4072 High Speed CMOS Dual 4-Input OR Gate IC (744072) DIP-14 Package
The 74HC4072 is a high speed CMOS DUAL 4-INPUT OR GATE fabricated in silicon gate C2 MOS technology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption. The internal circuit is composed of 3 stages including buffer output, which gives high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
Features:-
- HIGH SPEED
- tPD = 9 ns (TYP.) AT VCC =5V
- LOW POWER DISSIPATION
- ICC = 1 µA (MAX.) AT TA = 25 °C
- HIGH NOISE IMMUNITY
- VNIH = VNIL = 28 % VCC (MIN.)
- OUTPUT DRIVE CAPABILITY
- 10 LSTTL LOADS
- SYMMETRICAL OUTPUT IMPEDANCE
- |IOH|=IOL = 4 mA (MIN.)
- BALANCED PROPAGATION DELAYS
- tPLH = tPHL
- WIDE OPERATING VOLTAGE RANGE
- VCC (OPR) = 2 V TO 6 V
- PIN AND FUNCTION COMPATIBLE
- WITH 4072B
Symbol | Parameter | Min | Max | Unit |
VCC | Supply Voltage | -0.5 | +7 | V |
VI | DC Input Voltage | -0.5 | +0.5 | V |
VO | DC Output Voltage | -0.5 | +0.5 | V |
IOK | DC VCC or Ground Current | - | +20 | mA |
PD | Power Dissipation | - | 500 | mA |
IGND | ground current | +50 | - | mA |
Tstg | storage temperature | -65 | +150 | °C |
TL | Lead Temperature (10 sec) | - | 300 | °C |
Package Includes:-
1 x 74HC4072 High Speed CMOS Dual 4-Input OR Gate IC (744072) DIP-14 Package
* Product Images are shown for illustrative purposes only and may differ from actual product.
74HC4072 High Speed CMOS Dual 4-Input OR Gate IC (744072) DIP-14 Package
- Product Code: EC-11071
- Availability: 1252
-
Rs.35.00
- (Excluding 18% GST)
