The 74LS132 contains four independent gates each of which performs the logic NAND function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output.
Features:-
• Four Independent NAND Gates
• Each Input has Hysteresis for Noise Immunity
• Jitter Free Output
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC) | 7 V |
| Input Voltage (VI) | 7 V |
| Operating free-air temperature range | 0°C to +70°C |
| Storage temperature range | –65°C to +150°C |
Package Includes :-
1 X 74LS132 IC - (SMD Package) Quad 2-Input Schmitt Trigger IC (74132 IC)
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 28.32 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

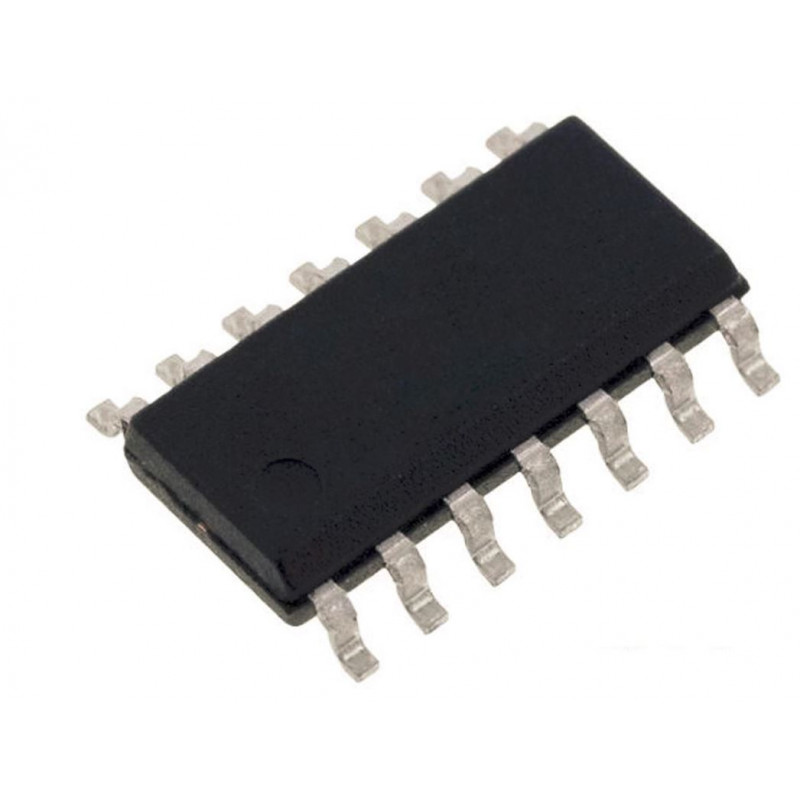

74LS132 IC - (SMD Package) Quad 2-Input Schmitt Trigger IC (74132 IC)
- Product Code: EC-11208
- Availability: 2271
-
Rs.24.00
- (Excluding 18% GST)
