In 74LS153 IC, Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections.
Features:-
• Permits multiplexing from N lines to 1 line
• Performs at parallel-to-serial conversion
• Strobe (enable) line provided for cascading (N lines to n lines)
• High fan-out, low impedance, totem pole outputs
• Typical average propagation delay times From data 14 ns From strobe 19 ns From select 22 ns
• Typical power dissipation 31 mW
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC) | 7 V |
| Input Voltage (VI) | 7 V |
| Operating free-air temperature range | 0°C to +70°C |
| Storage temperature range | –65°C to +150°C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

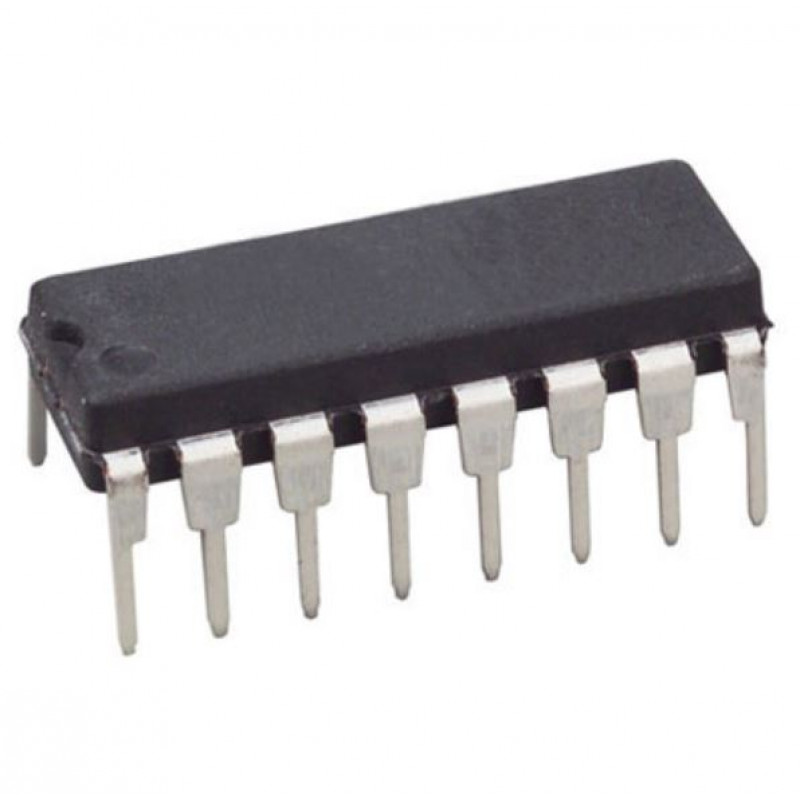

74LS153 Dual 1-of-4 Line Data Selector/Multiplexer IC (74153 IC) DIP-16 Package
- Product Code: EC-0396
- Availability: 1312
-
Rs.21.00
- (Excluding 18% GST)
