The 74LS245 SMD is an Octal Bus Transmitter/Receiver designed for 8-line asynchronous 2-way data communication between data buses. Direction Input (DR) controls transmission of Data from bus A to bus B or bus B to bus A depending upon its logic level. The Enable input (E) can be used to isolate the buses. The following are the features:-
• Hysteresis Inputs to Improve Noise Immunity
• 2-Way Asynchronous Data Bus Communication
• Input Diodes Limit High-Speed Termination Effects
• ESD > 3500 Volts
Specification:-
| Symbol | Parameter | Min | Type | Max | Units |
| VCC | Supply Voltage | 4.75 | 5 | 5.25 | V |
| TA | Operating Ambient Temperature Range | 0 | 25 | 70 | °C |
| IOH | Output Current — High | -3 | m A | ||
| -15 | m A | ||||
| IOL | Output Current — Low | 24 | m A |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 43.66 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

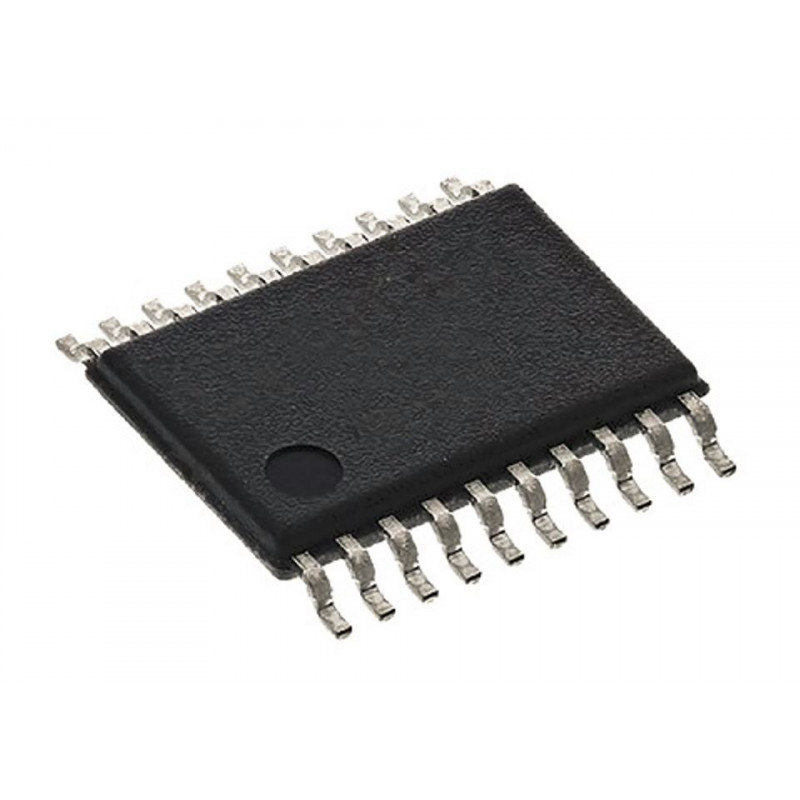

74LS245 IC - (SMD Package) - Octal Bus Transceiver IC (74245 IC)
- Product Code: EC-0955
- Availability: 357
-
Rs.37.00
- (Excluding 18% GST)
