This device contains four independent gates each of which performs the logic NAND function. The open-collector outputs require external pull-up resistors for proper logical operation. These gates feature high-voltage output ratings (up to 15V) for interfacing with 12V systems. Although the outputs are rated for 15V, the device supply is still rated for 5V
Specifications :-
- Supply Voltage : 4.75 – 5.25Vdc
- Maximum Clock Frequency : 40Mhz
- Power Dissipation : 2mW/gate @100kHz
- Minimum Output Current : 8mA
- Propagation Delay : 10nS
- Fan Out (TTL Loads) : 20
|
Symbol |
Parameter |
Min |
Max |
Unit |
|
VCC |
Supply Voltage |
4.75 |
5.25 |
V |
|
VIH |
HIGH
Level Input Voltage |
2 |
- |
V |
|
VIL |
LOW
Level Input Voltage |
- |
0.8 |
V |
|
VOH |
HIGH
Level Output Voltage |
- |
15 |
V |
|
IOL |
LOW
Level Output Current |
- |
8 |
V |
|
TA |
Free
Air Operating Temperature |
0 |
70 |
°C |
Package Includes :-
1 X 74LS26 Quad 2-Input High-Voltage Interface Positive NAND-Gate IC (7426 IC) DIP-14 Package
* Product Images are shown for illustrative purposes only and may differ from actual product.

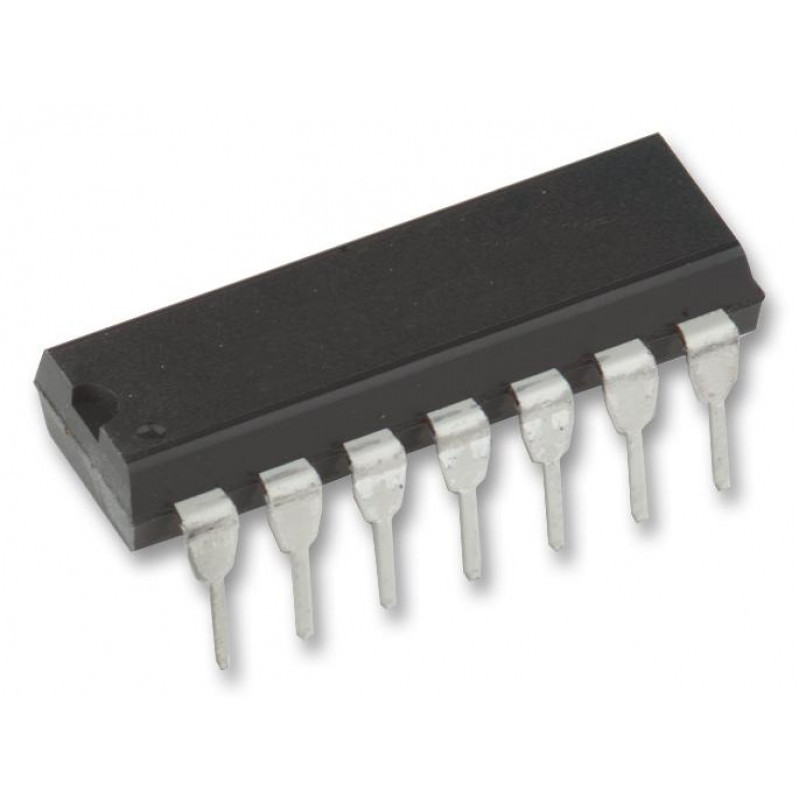

74LS26 Quad 2-Input High-Voltage Interface Positive NAND-Gate IC (7426 IC) DIP-14 Package
- Product Code: EC-11082
- Availability: 2342
-
Rs.20.00
- (Excluding 18% GST)
