The 74LS299 is an 8-bit universal shift/storage register with 3-STATE outputs. Four modes of operation are possible: hold (store), shift left, shift right and load data. The parallel load inputs and flip-flop outputs are multiplexed to reduce the total number of package pins. Separate outputs are provided for flip-flops Q0 and Q7 to allow easy cascading. A separate active LOW Master Reset is used to reset the register

Features :-

• Common I/O for reduced pin count
• Four operation modes: shift left, shift right, load and store
• Separate shift right serial input and shift left serial input for easy cascading
• 3-STATE outputs for bus oriented applications

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• Input HIGH Voltage : 2.0V
• Input LOW Voltage : 0.8V
• HIGH Level Output Current : -0.4mA
• LOW Level Output Current : 24mA
• Free Air Operating Temperature : 70°C

Package Includes :-

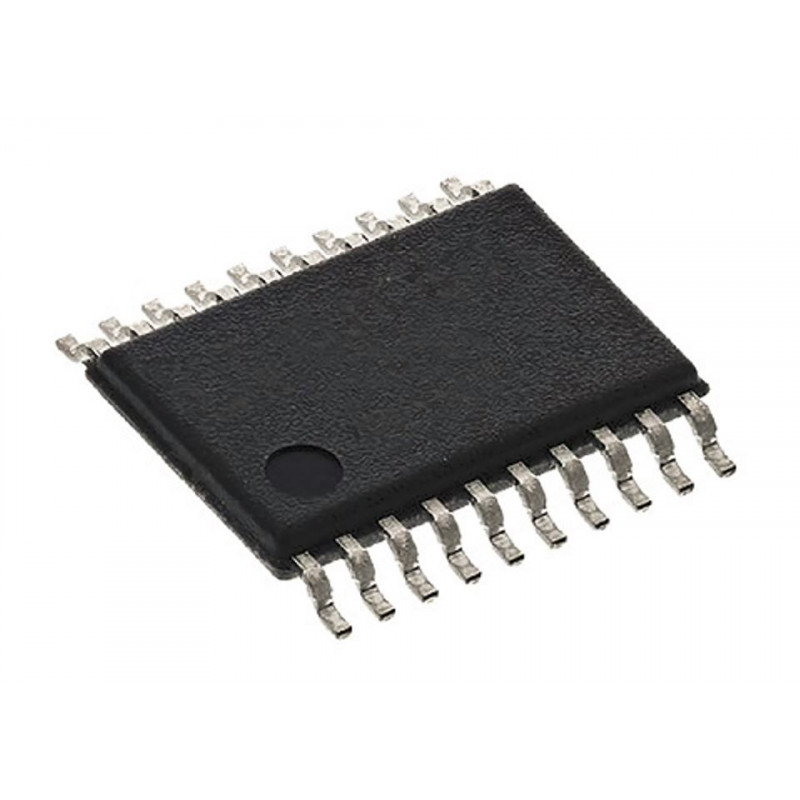

1 X 74LS299 IC - (SMD Package) 8-Input Universal Shift/Storage Register IC (74299 IC)
