The 74LS323 is an 8-Bit Universal Shift/Storage Register with 3-state outputs. Its function is similar to the 74LS299 with the exception of Synchronous Reset. Parallel load inputs and flip-flop outputs are multiplexed to minimize pin count. Separate inputs and outputs are provided for flip-flops Q0 and Q7 to allow easy cascading. Four operation modes are possible: hold (store), shift left, shift right, and parallel load. All modes are activated on the LOW-to-HIGH transition of the Clock.
Features :-
- Common I/O for Reduced Pin Count
- Four Operation Modes: Shift Left, Shift Right, Parallel Load and Store
- Separate Continuous Inputs and Outputs from Q0 and Q7 Allow Easy Cascading
- Fully Synchronous Reset
- 3-State Outputs for Bus Oriented Applications
- Input Clamp Diodes Limit High-Speed Termination Effects
- ESD > 3500 Volts
Specifications :-
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- Input Clamp Diode Voltage : -1.5V
- Power Supply Current : 53mA
Package Includes :-

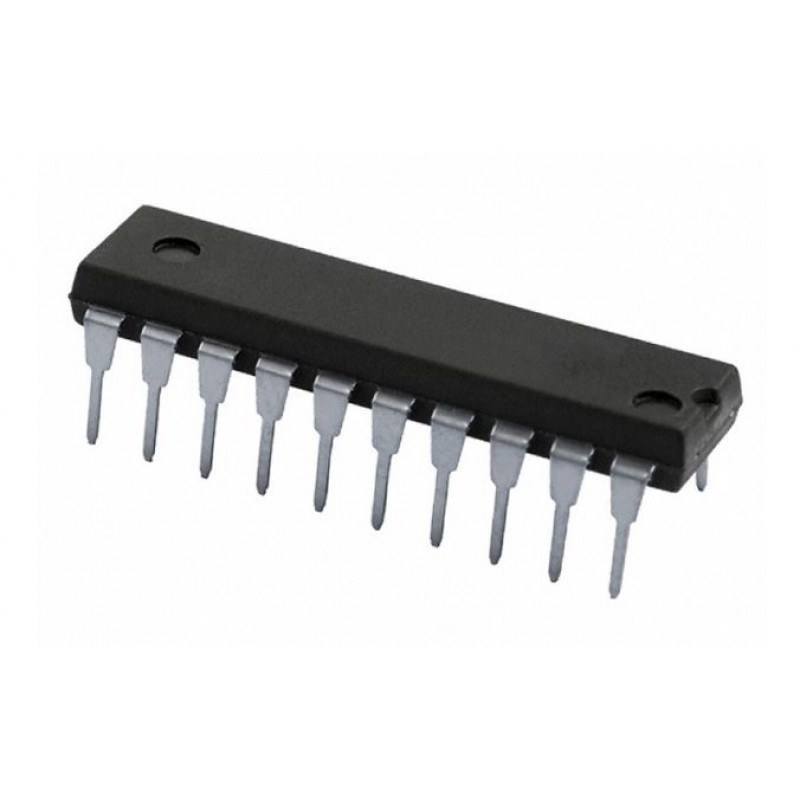

1 X 74LS323 3-Stage 8-Bit Universal Shift/Storage Register IC (74323) DIP-20 Package
* Product Images are shown for illustrative purposes only and may differ from actual product.
74LS323 3-Stage 8-Bit Universal Shift/Storage Register IC (74323) DIP-20 Package
- Product Code: EC-11113
- Availability: 2541
-
Rs.35.00
- (Excluding 18% GST)
