Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections
Features :-
- Inverting version of DM54/74LS153
- Permits multiplexing from N lines to 1 line
- Performs parallel-to-serial conversion
- Strobe (enable) line provided for cascading (N lines to n lines)
- High fan-out, low-impedance, totem-pole outputs
- Typical power dissipation 31mW
Specifications :-
- Supply Voltage : 4.75 - 5.25V
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- High Level Output Current : -0.4mA
- Low Level Output Current : 8mA
- Free Air Operating Temperature : 70°C
Package Includes :-
1 X 74LS352 IC - (SMD Package) Dual 4-input Multiplexer IC (74352 IC)
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 64.9 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

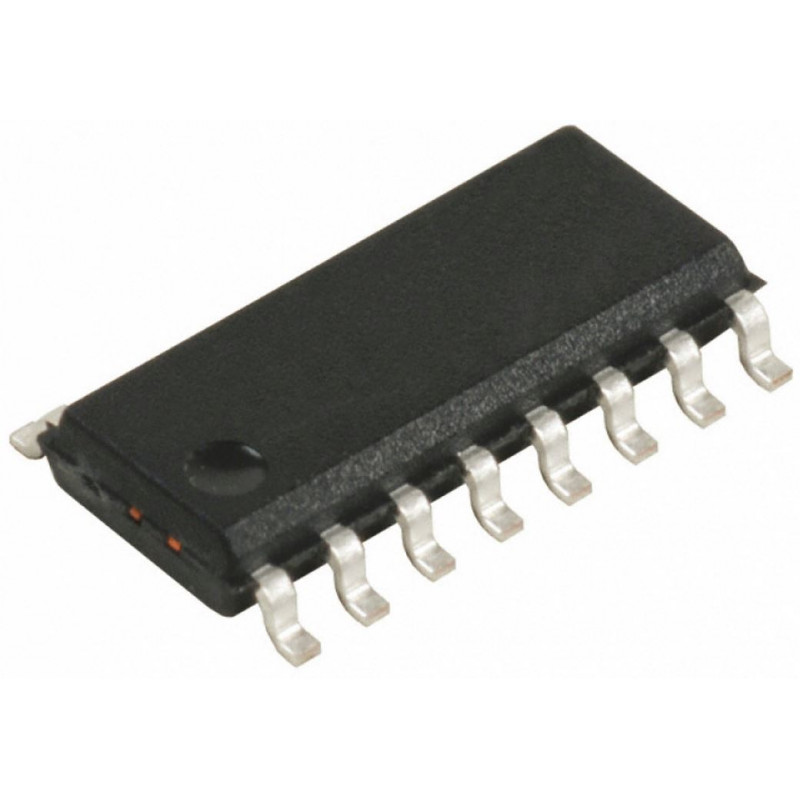

74LS352 IC - (SMD Package) Dual 4-input Multiplexer IC (74352 IC)
- Product Code: EC-11228
- Availability: 1808
-
Rs.55.00
- (Excluding 18% GST)
