The ’LS573 is a high speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs. This device is functionally identical to the ’LS373, but has different pinouts.
Features :-
- Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
- Useful as input or output port for microprocessors
- Functionally identical to ’LS373
- Input clamp diodes limit high speed termination effects
- Fully TTL and CMOS compatible
Specifications :-
- Supply Voltage : 4.75 to 5.25V
- High Level Input Voltage : 2V
- Low Level Input Voltage : 0.8V
- High Level Input Current : -2.6V
- Low Level Output Current : 24V
- Free Air Operating Temperature : 70˚C
Package Includes :-

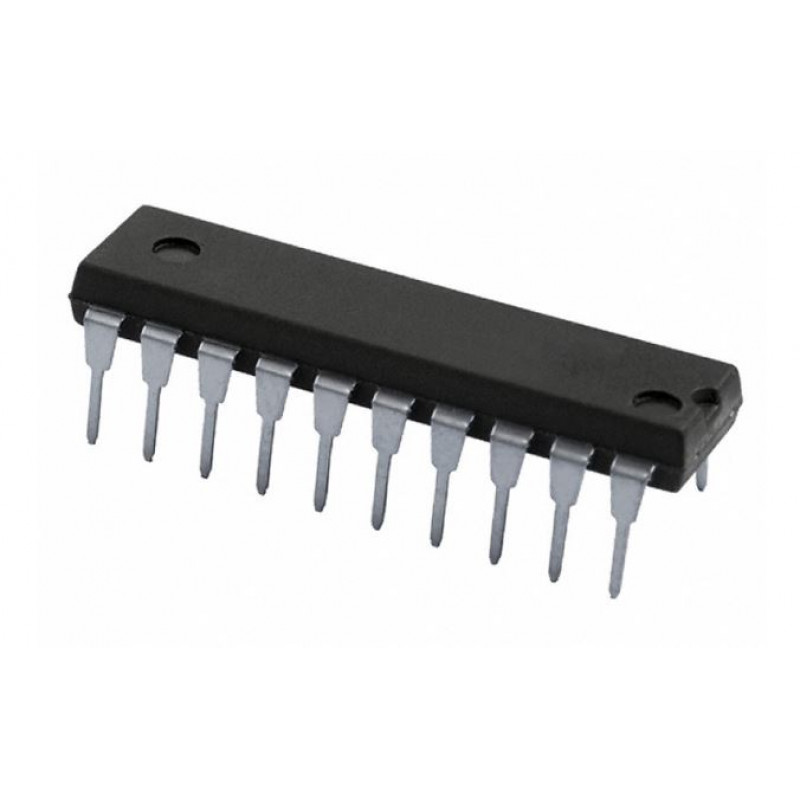

1 X 74LS573 3-State Octal D-Type Latch IC (74573) DIP-20 Package
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 46.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
74LS573 3-State Octal D-Type Latch IC (74573) DIP-20 Package
- Product Code: EC-11120
- Availability: 1856
-
Rs.39.00
- (Excluding 18% GST)
