77GHz Traffic Flow Radar MR76S is from series 77GHz MMW radar and is the latest one compact type 77GHz frequency channel millimeter wave radar which researched and developed by Nanoradar. MR76S detect the reflection situation of millimeter wave through forward launch millimeter wave, feedback the relative distance, speed and angle information between obstacles and radar, able to real time detect and trace the big, small vehicles, e-bike and other information on road. This product adopt DBF digit wave beam combine, MIMO invented hold diameter, far and near wave beam-forming and other multiply items advanced technology, realize 1.2-300m measure distance, support to detect 128 pieces objects, small and exquisite body, high sensitivity, stable performance, light weight and easy to integrate.

Features:

1. It supports two-way multi-lane multi-target trajectory tracking and detection, software real-time online simulation, lateral 4-8lanes, longitudinal 300 meters;
2. It supports multi-target real-time speed monitoring, with a maximum of 128 targets and a speed measurement range of -200km/h ~ +250km/h;
3. It supports multi-row virtual coil setting, coil size and position software can be adjusted, and real-time output of vehicle presence information;
4. It supports multi-section lane-dividing statistical data output, including traffic, speed, occupancy rate, headway, maximum queue length, etc;
5. It supports traffic incident detection, including slow congestion, retrograde, abnormal parking, lane change, too close to the car, etc;
6. It supports customized data output;
7. It supports all-day and all-weather work, including rain, snow, fog, strong wind, ice, dust, etc;
8. Easy to use & install
9. Good quality product

Note: Refer to user manual and brochure in the ATTACHMENTS section for more info.

Package Includes:

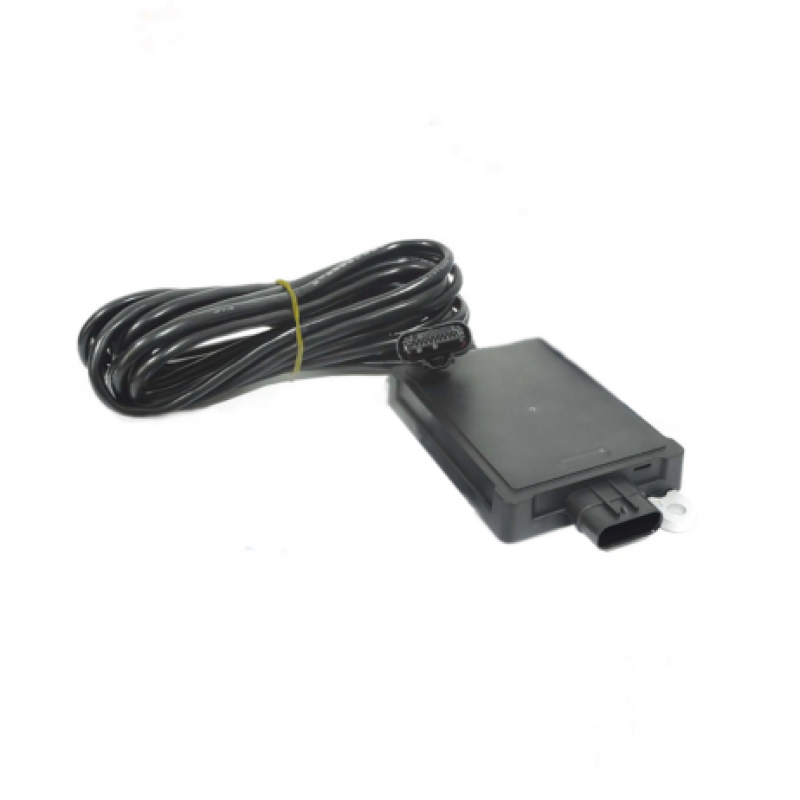

1 x 77GHz Traffic Flow Radar MR76S with cable
