This sensor module has 8 IR LED/phototransistor pairs mounted on a 0.375" pitch, making it a great detector for a line-following robot. Pairs of LEDs are arranged in series to halve current consumption, and a MOSFET allows the LEDs to be turned off for additional sensing or power-savings options. Each sensor provides a separate analog voltage output.
Applications:-
- Line following robot
- DIY electronics and robotics projects
Features and Specifications:-
- 8 IR Sensors with High Range
- Operating voltage: 3.3 to 5V
- Current supply: 100mA
- Output format: 8 digital I/O compatible signal
- Optimal sensing distance: 3 mm
- Maximum recommended sensing distance: 6 mm
- Distance between each IR Sensor: 15mm
- Analog and Digital Output pins
- Potentiometer to adjust the sensitivity of the individual sensors
- Applications Line Follower Robots Object Array Sensing
- No analogue to digital conversion requires
- Improved sensitivity over voltage-divider analogue output
Package Includes:-
1 x 8 Channel IR Sensor Array Infrared Detection Module
Brand/Manufacturer | |
Country Of Origin | |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 324.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

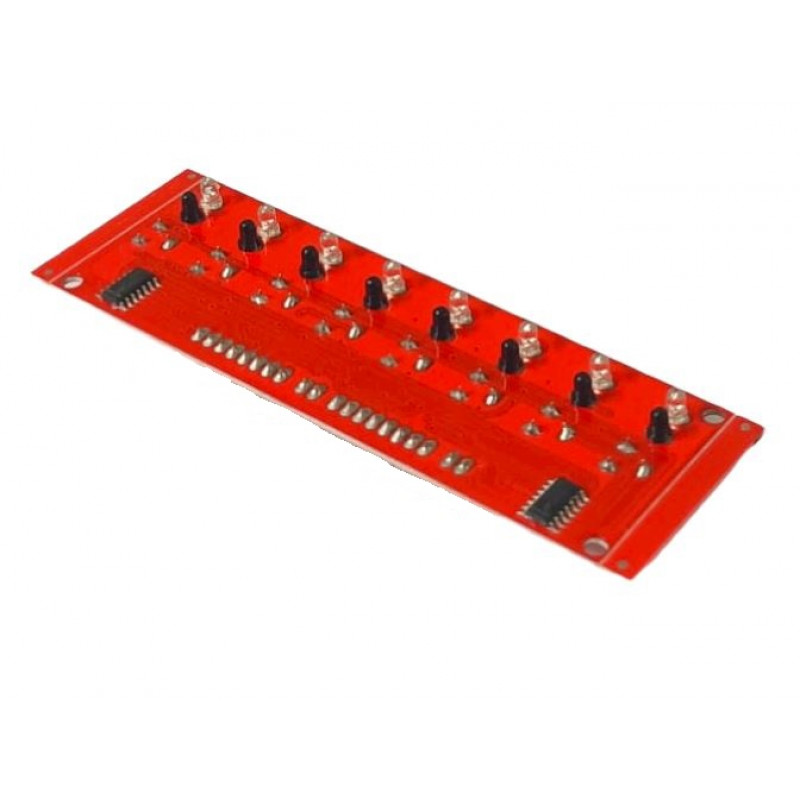

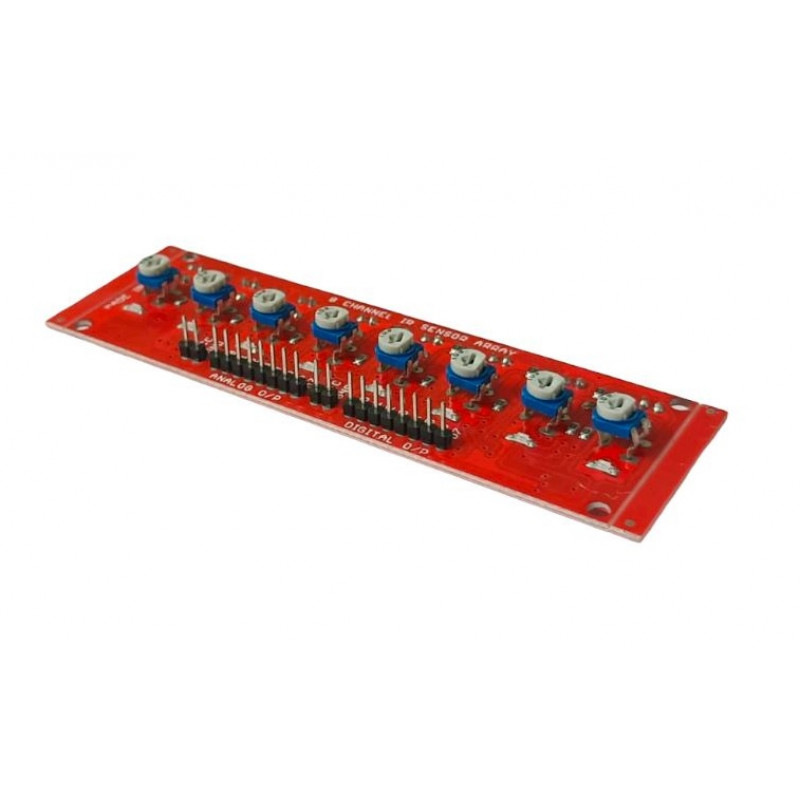

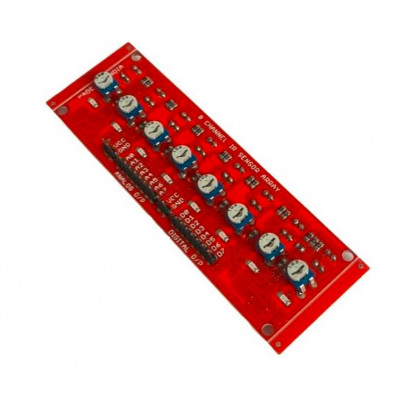

8 Channel IR Sensor Array Infrared Detection Module
- Product Code: EC-11380
- Availability: 359
-
Rs.275.00
- (Excluding 18% GST)
