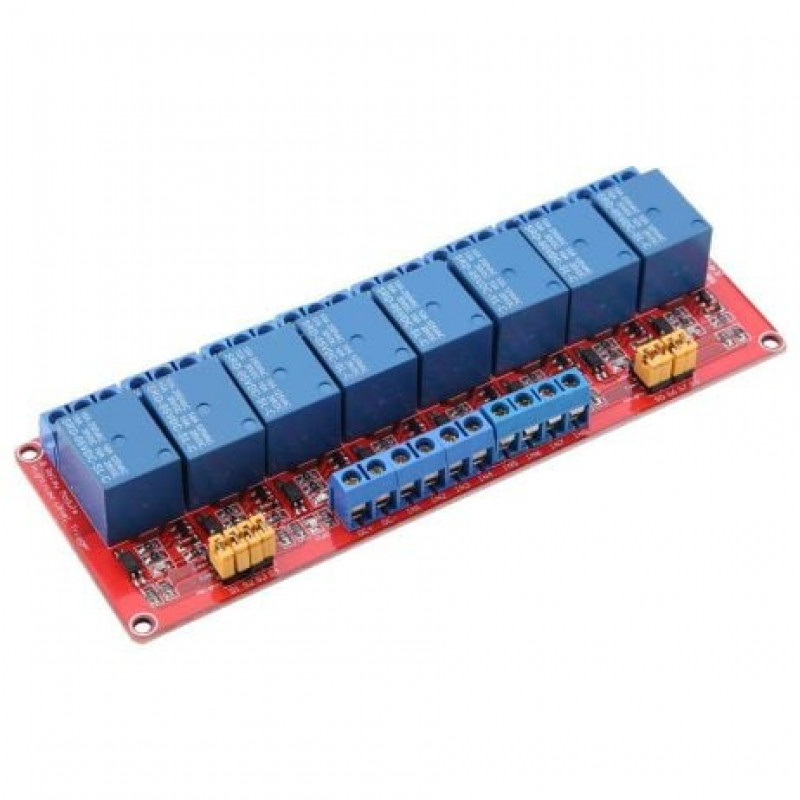

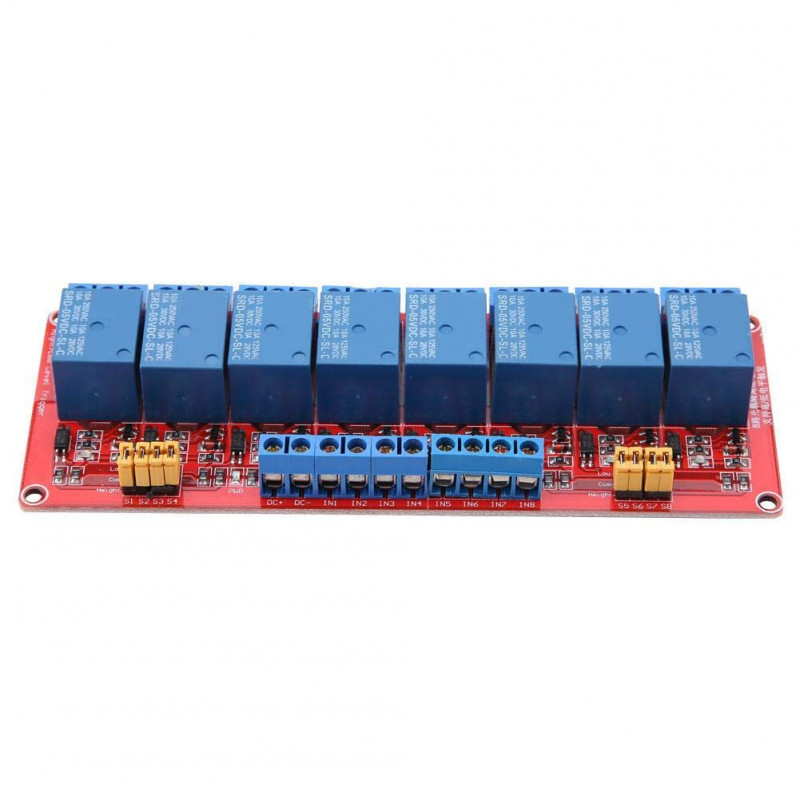

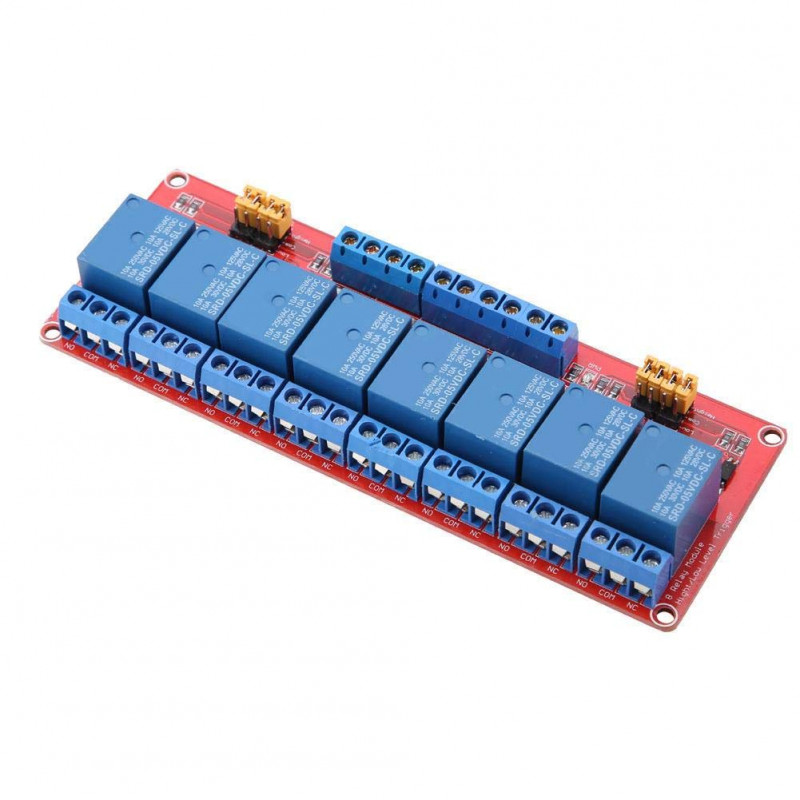

Upgrade your electronic projects with 8 Channel Relay Module 5V High and Low Level Trigger Relay Module. Boasting genuine high-quality relays, it handles AC 250v/10a and DC 30v/10a effortlessly. The SMD Optocoupler Isolation ensures a seamless switch without affecting the signal circuit. Choose between High or Low Level Control with a user-friendly jumper cap, adapting to various scenarios.

The fault-tolerant design guarantees non-actuation even if the control line breaks. Enjoy hassle-free connectivity through the user-friendly interface design, making installation a breeze. Elevate your projects with the reliability and versatility of our 8 Channel Relay Module.

Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability.

Features:

1. Genuine High-Quality Relays:
   • Handles AC 250v/10a and DC 30v/10a for versatile applications.
2. SMD Optocoupler Isolation:
   • Utilizes advanced technology for fully isolated power supply systems.
   • Ensures zero impact on the signal circuit during relay switching.
   • Offers the choice between high-level and low-level drive modes.
   • Low trigger current of 5mA enhances efficiency.
3. High or Low Level Controllable:
   • Jumper cap allows seamless adaptation to different control scenarios.
4. Fault-Tolerant Design:
   • Non-actuation even in the event of a broken control line for enhanced reliability.
5. User-Friendly Interface Design:
   • All interfaces connect directly through a convenient terminal block.
   • Simplifies installation for both professionals and DIY enthusiasts.

Specifications:

1. Operating Voltage: 5V DC
2. Maximum Load: AC: 250v/10a and DC: 30v/10a
3. Isolation: SMD Optocoupler Isolation with two fully isolated power supply systems
4. Drive Modes: High-level and Low-level drive mode
5. Trigger Current: 5mA
6. Control Options: High or Low level controllable with a jumper cap.
7. Fault Tolerance: Non-actuation in case of a broken control line.
8. Interface: User-friendly terminal block for easy connectivity.
9. Product Dimensions (mm): 135 x 50 x 18
10. Product Weight (g):111

Package Includes:

1 x 8 Channel Relay Module 5V High and Low-Level Trigger Relay Module
