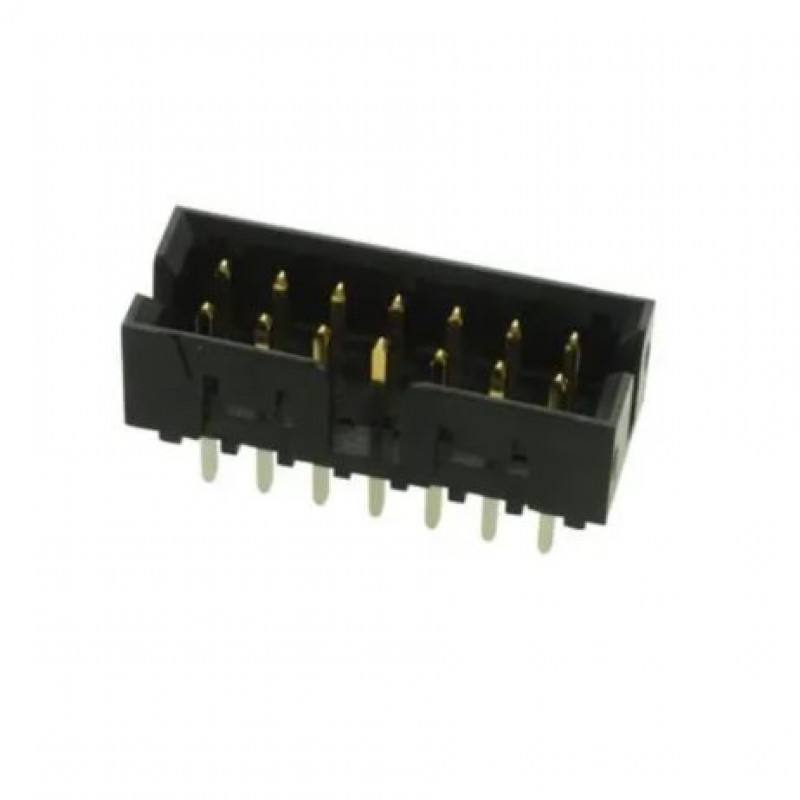

Pin Header, Square Pin, Wire-to-Board, 2 mm, 2 Rows, 14 Contacts, Through Hole Straight
Features:
- Early entry system crimp terminals
- Centre polarization key
- Locking ramps
- Centre polarization slot
- Locking windows
- Marking feature
- Operating temperature range from -55C to +105C
- UL94V-0 flammability rating
- Maximum current per contact is 2A
- Maximum voltage is 125V
Specifications:
- Operating temperature range: -55C to +105C
- Maximum voltage: 125V
- Color: Resin Black
- Durability: (mating cycles max) 100
- First Mate / Last Break: No
- Flammability: 94V-0
- Glow-Wire Capable: No
- Guide to Mating Part: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material: Metal Phosphor Bronze
- Material: Plating Mating Gold
- Material: Plating Termination Tin
- Material: Resin Nylon
- Net Weight: 0.716/g
- Number of Rows: 2
- Orientation Vertical
- PC Tail Length: 2.50mm
- PCB Locator: No
- PCB Retention: None
- PCB Thickness: Recommended 1.60mm
- Packaging Type: Tube
- Pitch: Mating Interface 2.00mm
- Pitch: Termination Interface 2.00mm
- Plating min: Mating 0.381m
- Plating min: Termination 1.905m
- Polarized to PCB: No
- Shrouded: Yes
Package Includes:
1 x 87831-1420-CONNECTOR, HEADER, 14POS, 2ROW
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
87831-1420-Connector, Header, 14Pos, 2Row
- Product Code: EC-21760
- Availability: 1
-
Rs.123.00
- (Excluding 18% GST)
