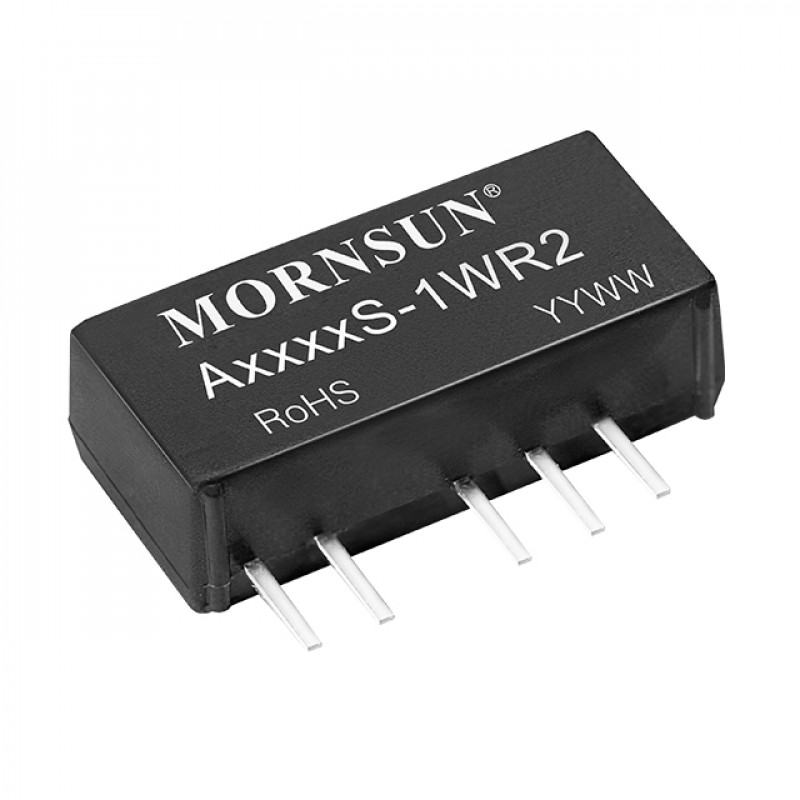

This A1212S-1WR2 Mornsun 12V to ±12V DC-DC Converter 1W Power Supply Module from Mornsun is specially designed for applications where an isolated voltage is required in a distributed power supply system. Equipped with numerous features, including a subminiature SIP package, high efficiency and an operating temperature of -40°C to +105°C.

Features:

1. Meet UL, CE requirements.
2. High power density
3. High efficiency of up to 80%
4. Operating ambient temperature range: -40℃ to+105℃
5. Ultra compact SIP package
6. Industry standard pin-out
7. I/O isolation test voltage 1.5k VDC
8. UL60950/EN60950 Approved

Specifications:-

Model Number:            A1212S-1WR2

Input Voltage range:    10.8-13.2

Nominal voltage:         12 Vdc

Output voltage:           +12V,-12V

Output current:           ±42/5(mA)

Wattage:                    1W

Isolation Voltage:        1.5 kVdc

Package:                    SIP

Size:                          19.50mm(Length) X 6.00mm(Width) X 9.30mm (Height)

Weight:                      2.4gm

Package Includes:-

1 x A1212S-1WR2 Mornsun 12V to ±12V DC-DC Converter 1W Power Supply Module

Related Documents:-

 Mornsun A1212S-1WR2 Datasheet
