ACE 100ml No Clean Soldering Liquid Flux has been designed for use in the electronic industry to improve effectiveness in dip and wave soldering of conventional PCB assemblies.
Process Considerations:-
- The flux needs to be pre-heated post application in order to activate it.
- Recommended temperature may be anywhere between 90˚C to 150˚C (194˚F to 302˚F) depending upon circuit board design, board thickness, length of contact time with molten solder, speed of solder flow and preheating time.
- Solder pot temperature should be set between 245- 260˚C (473-500˚F) for Sn63Pb37/Sn60Pb40 alloy and between 260-270˚C (500-518˚F) for SnCu/SnAgCu alloys.
- Please note that the above are only guidelines and the optimum settings for a given assembly may vary keeping in mind the above mentioned factors.
- Flux residues are non-corrosive and non-conductive, thus do not require removal in most applications. In case residue removal is required our PCB Cleaner may be used for the same.
Storage and Shelf Life:-
- It is flammable, thus must be stored in a cool and dry place away from all sources of ignition. Shelf life is indefinite at room temperature when stored properly.
Applications :
- Application may be done manually using a brush or via spraying.
Specifications :
- Specific Gravity: 0.82±0.005
- Percent solids (theoretical): 1.5
- State: Liquid
- Acid number: 35.0mg KOH/g
- Volume : 100ml
Package Includes :
1 x ACE 100ml No Clean 0% Soldering Liquid Flux
| Brand/Manufacturer | ACE Soldering Solutions |
| Country Of Origin | India |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 116.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

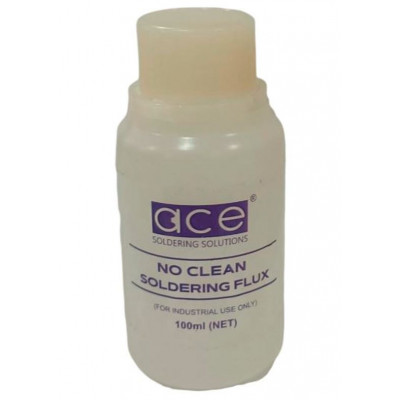

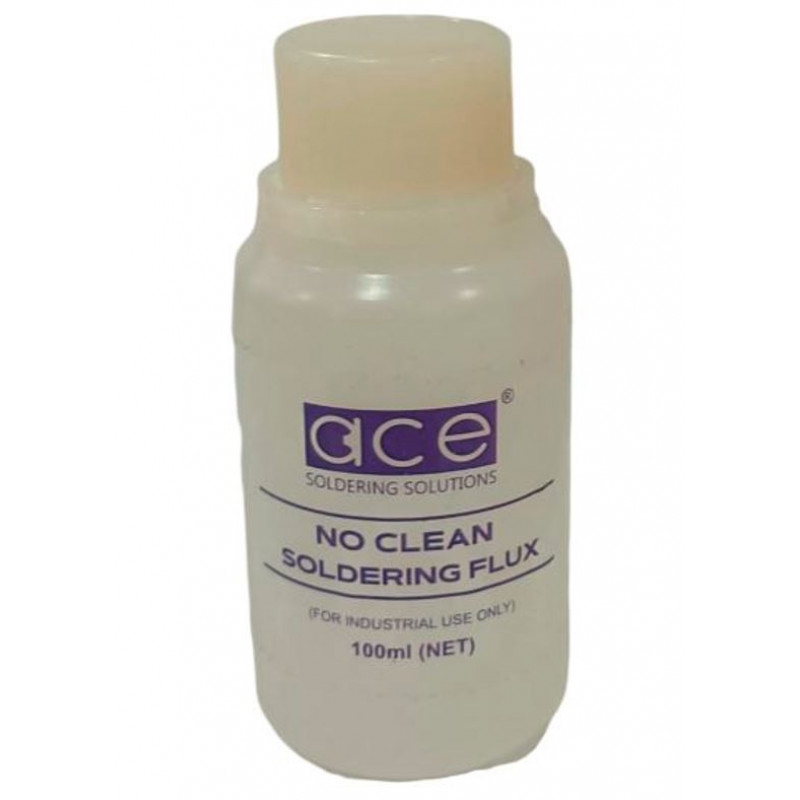

ACE 100ml No Clean 0% Soldering Liquid Flux
- Product Code: EC-12100
- Availability: 433
-
Rs.99.00
- (Excluding 18% GST)
