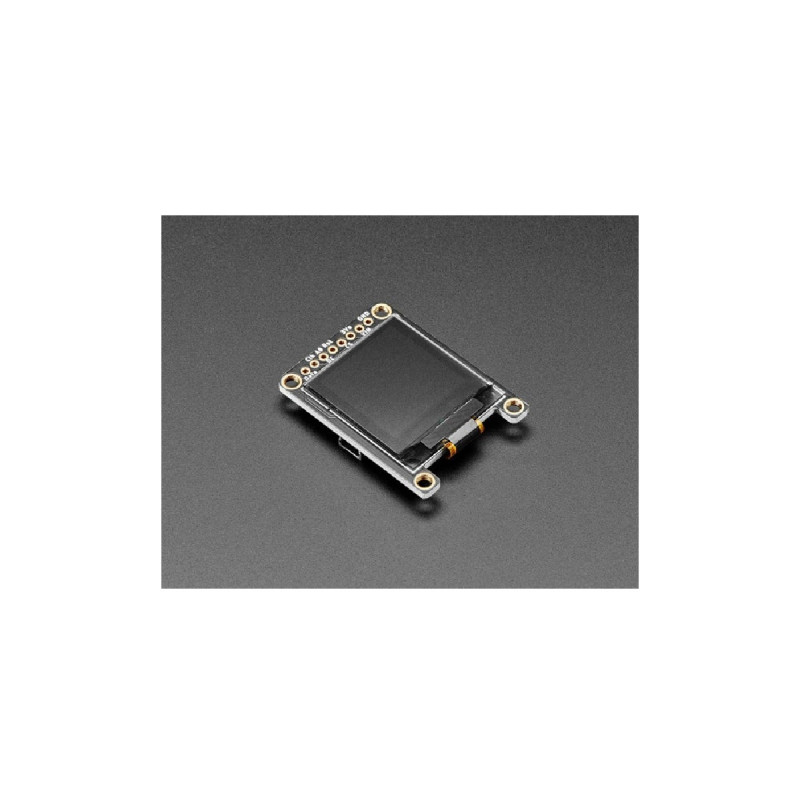

This OLED goes out to all the fans who wantmore pixels in a smaller size! Normally our 12864 OLEDs are the biggest ones weve stocked that can use I2C. This one is a whopping 128128 pixels in crisp monochrome.

This display is a petite 1.12 diagonal, but very readable due to the high contrast of an OLED display. This display is made of 128128 individual white OLED pixels, each one is turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like these miniature displays for their crispness!

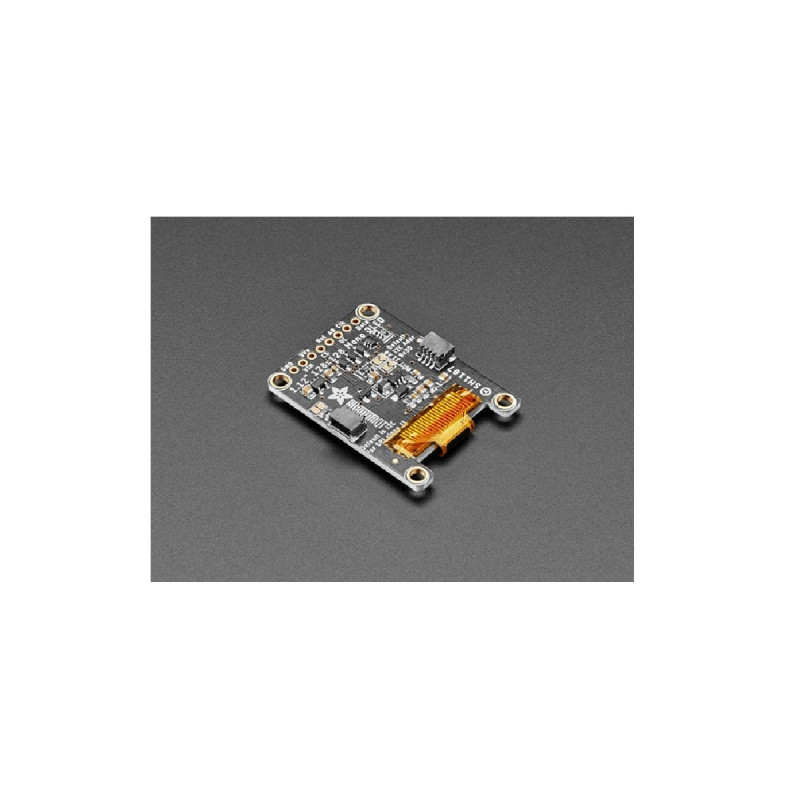

The driver chip, SSD1107 can communicate in two ways: I2C or SPI. The OLED itself requires a 3.3V and 12V power supply and 3.3V logic levels for communication. We include a 3.3V regulator and 12V boost converter, and all pins are fully level shifted so you can use them with 3V or5V devices!

If you are using I2C, weve included SparkFun qwiic compatibleSTEMMA QTconnectors for the I2C bus soyou dont even need to solder!Plug and play with any board that has a Qwiic or STEMMA QT connector for effortless prototyping and development.QT Cable is not included, but we have a variety in the shop.

This display, being 128128 pixels, requires 128 * 128 = 2KB of SRAM just to buffer the display. Soyou cant use it with a small chip such as the Arduino UNO (ATmega328 or 32u4). Pick a microcontroller or microcomputer with 16KB+ RAM a SAMD21, SAMD51, ESP, nRF52, Teensy, etc will do an excellent job. As long as you have an I2C or SPI interface available, youre good to go SPI will be much faster but I2C requires fewer pins.

We have both Arduino and CircuitPython support for this display chipset (SH1107).

Please note that OLED displays are made of hundreds ofOLEDs! That means each pixel is a little organic LED, and if its kept on for over 1000 hours itll start to dim. If you want to keep the display uniformly bright, please turn off the display (set the pixels off) when it isnt needed to keep them from dimming.

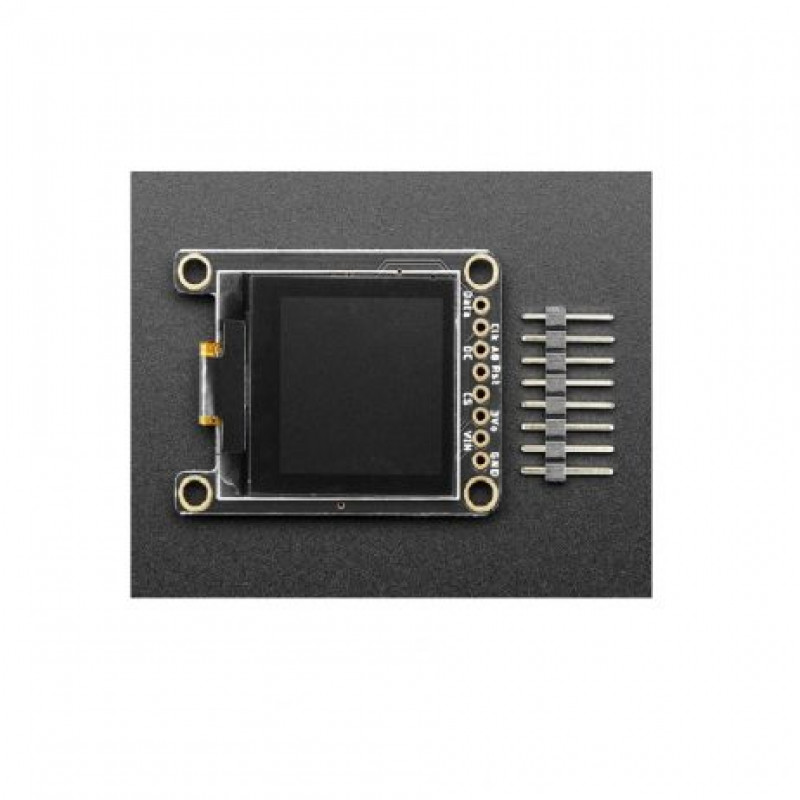

Package Includes:

1 x Monochrome 1.12 128128 I2C/SPI OLED Display
1 x 2.54 chip-mounting pin-6P
