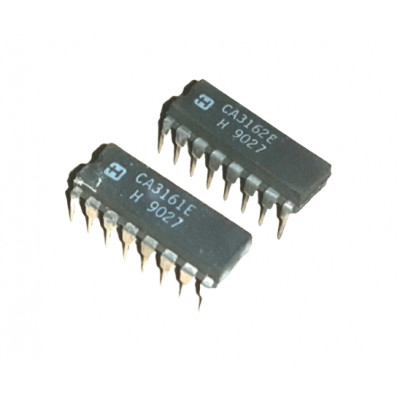

  • CA3161 IC + CA3162 IC Pair A/D Converter for 3 Digit Display DIP-16 Package

The CA3161 is a monolithic integrated circuit that performs the BCD to seven segment decoding function and features constant current segment drivers. When used with the CA3162 A/D Converter the CA3161 provides a complete digital readout system with a minimum number of external parts.

The CA3162 and CA3162 are I2L monolithic A/D converters that provide a 3 digit multiplexed BCD output. They are used with the CA3161 BCD-to-Seven-Segment Decoder/Driver and a minimum of external parts to implement a complete 3-digit display. The CA3162 is identical to the CA3162 except for an extended operating temperature range


Features of CA3161 IC:-

• TTL Compatible Input Logic Levels

• 25mA (Typ) Constant Current Segment Outputs

• Eliminates Need for Output Current Limiting Resistors

• Pin Compatible with Other Industry Standard Decoders

• Low Standby Power Dissipation . . . . . . . .18mW (Typ)


Features of CA3162 IC:-

• Dual Slope A/D Conversion

• Multiplexed BCD Display

• Ultra Stable Internal Band Gap Voltage Reference

• Capable of Reading 99mV Below Ground with Single Supply

• Differential Input

• Internal Timing - No External Clock Required

• Choice of Low Speed (4Hz) or High Speed (96Hz) Conversion Rate

• “Hold” Inhibits Conversion but Maintains Delay

• Over range Indication - “EEE” for Reading Greater than +999mV, “-” for Reading More Negative than -99mV When Used With CA3161


Specification of CA3161 IC:-

Parameters Specification
DC V SUPPLY +7.0 V
Input Voltage +5.5 V
Output Voltage Output “Off” +7 V

Output “On” +10 V


Specification of CA3162 IC:-

Parameters Specification
DC V SUPPLY +7.0 V
Input Voltage +15 V
Temperature Range 0 to 75


Related Documents:-

 CA3161 IC Datasheet

 CA3162 IC Datasheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2330.5 (Inclusive of all Taxes)
