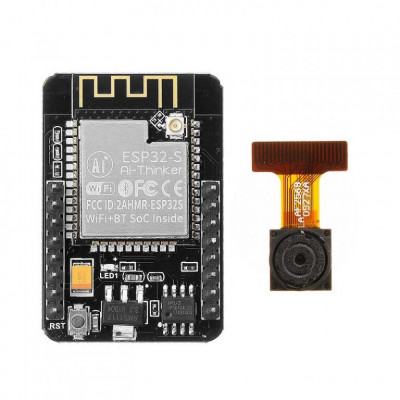

The ESP32-CAM is an Ai-Thinkers Original ESP32 CAM WiFi+Bluetooth with OV2640 Camera Module based on the ESP32 chip with the additional facility of using a camera. It is ideal for various IoT applications. The ESP32-CAM has a very competitive small-sized camera module that can operate independently as a minimum system.

Ai-Thinker ESP32 CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

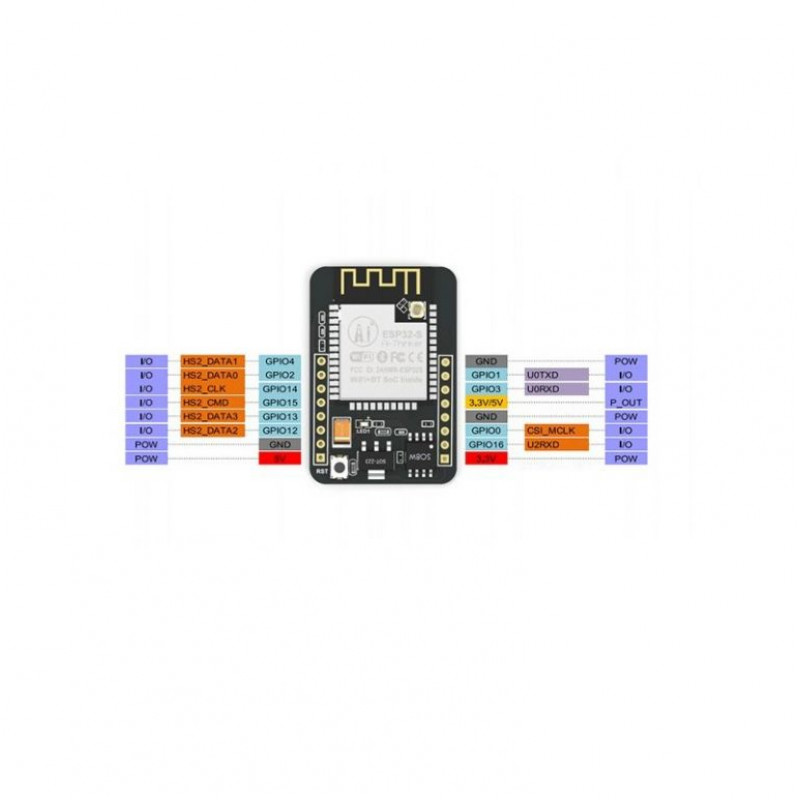

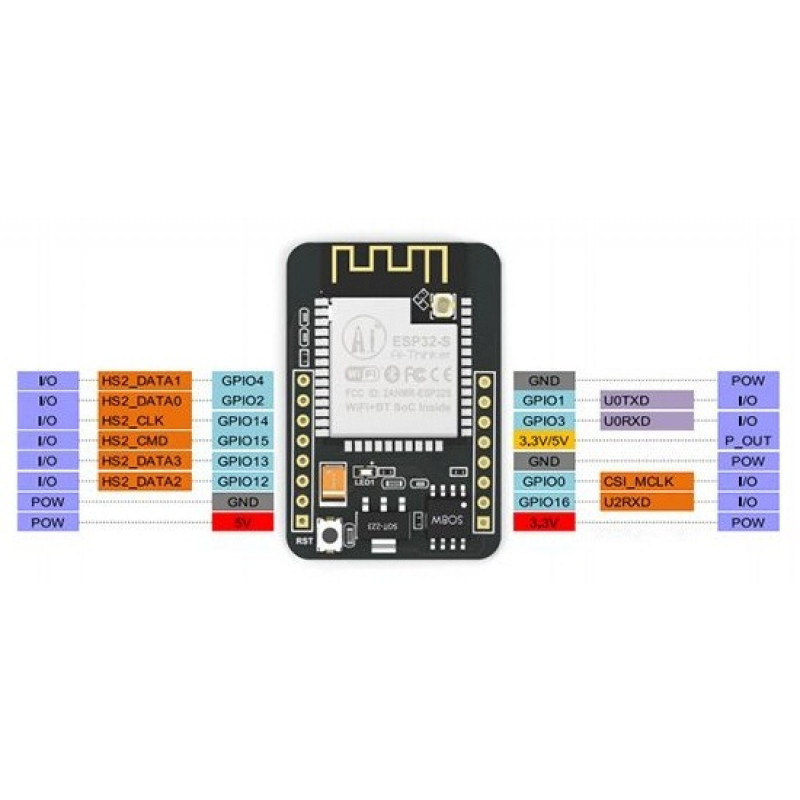

Pin Configuration:

ESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.


Features:

  1. Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
  2. Low-power dual-core 32-bit CPU for application processors
  3. Up to 240MHz, up to 600 DMIPS
  4. Built-in 520 KB SRAM, external 4M PSRAM
  5. Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
  6. Support OV2640 and OV7670 cameras with built-in flash
  7. Support for images WiFI upload
  8. Support TF card
  9. Support multiple sleep modes
  10. Embedded Lwip and FreeRTOS
  11. Support STA/AP/STA+AP working mode
  12. Support Smart Config/AirKiss One-click distribution network
  13. Support for serial local upgrade and remote firmware upgrade (FOTA)

Package Includes:

1 xAi-Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module


Additional information

Module Model

ESP32-CAM

Custom IO Port

9

SPI Flash

Default 32Mbit

RAM

520KB SRAM +4M PSRAM

WIFI

802.11 b/g/n/e/i

Bluetooth Version

4.2

Antenna Type

IPEX and PCB

Input Supply Range (VDC)

3.6 ~ 5

Current Dissipation (mA)

180
310

Transmit Power (dBm)

802.11b: 172 dBm (@11Mbps)
802.11g: 142 dBm (@54Mbps)
802.11n: 132 dBm (@MCS7)

Receiving Sensitivity

54 Mbps (3/4 64-QAM): -70dBm
6 Mbps (1/2 BPSK): -88dBm
CCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBm

UART Baudrate

Default 115200 bps

Operating Temperature (C)

-20 to 80

Security

WPA/WPA2/WPA2-Enterprise/WPS

Length (mm)

41

Width (mm)

27

Height (mm)

5

Weight (gm)

8

Shipment Weight

0.01 kg

Shipment Dimensions

4 4 1 cm

Brand/Manufacturer Ai Thinker
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 942.82 (Inclusive of all Taxes)
