The ESP-C3-12F-Kit development board is a core development board designed by ESP-C3-12F for the ESP-C3-12F module. The development board continues the classic design of the NodeMCU development board, leading all I/O to the With pin headers, developers can connect peripherals according to their needs. When using the breadboard for development and debugging, the standard headers on both sides can make the operation easier and more convenient.
Features:-
- Support Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps
- Support BLE5.0, does not support classic Bluetooth, rate support: 125Kbps, 500Kbps, 1Mbps, 2Mbps
- RISC-V 32-bit single-core processor, supports a clock frequency of up to 160 MHz, has 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM
- Support UART/PWM/GPIO/ADC/I2C/I2S interface, support temperature sensor, pulse counter
- The development board has RGB three-in-one lamp beads, which is convenient for the second development of customers
- Support multiple sleep modes, deep sleep current is less than 5u
- Serial port rate up to 5Mbps
- Support STA/AP/STA+AP mode and promiscuous mode
- Support Smart Config (APP)/Air Kiss (WeChat) of Android and IOS, one-click network configuration
- Support serial port local upgrade and remote firmware upgrade (FOTA)
- General AT commands can be used quickly
- Support secondary development, integrated Windows and Linux development environment
- About Flash configuration ESP-C3-12F uses the built-in 4MByte Flash of the chip by default, and supports the external Flash version of the chip.
Specifications:-
- Model : ESP-C3-12F
- Package : DIP-30
- Size :25.5x18.0x3.1(±0.2)mm
- Antenna : PCB antenna/IPEX port
- Spectrum range : 2400~2483.5MHz
- Power Supply : Voltage 5V,current >500mA
- Working Temperature : -40 ℃ ~ 85 ℃
- Storage Environment : -40 ℃ ~125 ℃ , < 90%RH
- Interface : UART/GPIO/ADC/PWM/I2C/I2S
- IO port : O0,IO1,IO2,IO3,IO4,IO5,IO8,IO9,IO10,IO18,IO19,IO20,IO21
- Serial Port : Support 110 ~ 4608000 bps, default 115200 bps
- Bluetooth : BLE5.0
- Safety : WEP/WPA-PSK/WPA2-PSK
- SPI Flash : Default 4M Byte support 2M Byte version
- Onboard RGB interface : IO5 connects to RGB blue lamp beads;IO3 connects to RGB red lamp beads;IO4 connects to RGB green lamp beads
Package Includes:-
1 x Ai Thinker NodeMCU-ESP-C3-12F Development Board
Brand/Manufacturer | Ai Thinker |
Country Of Origin | |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

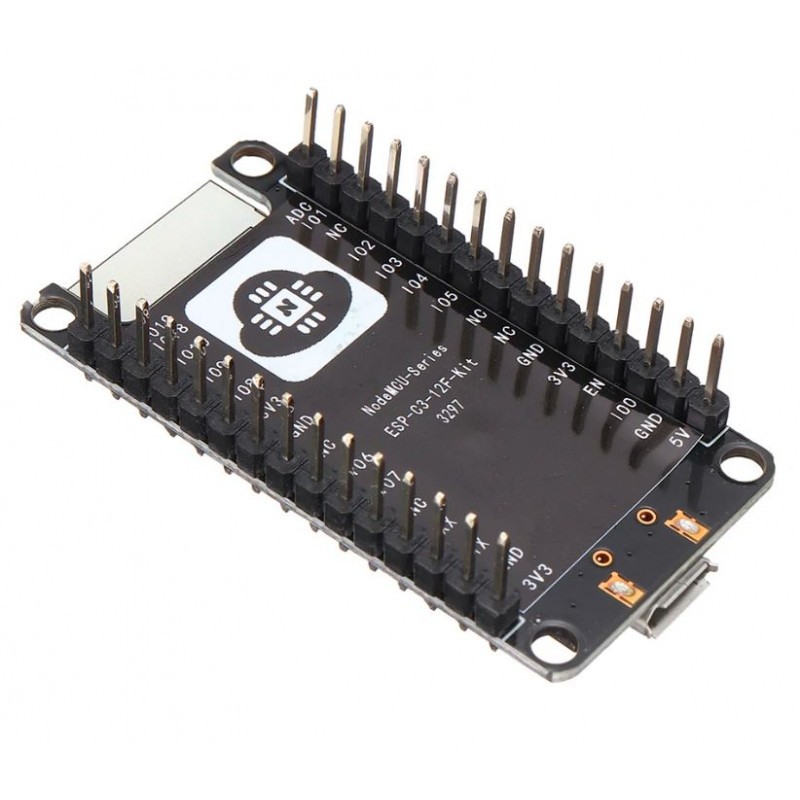

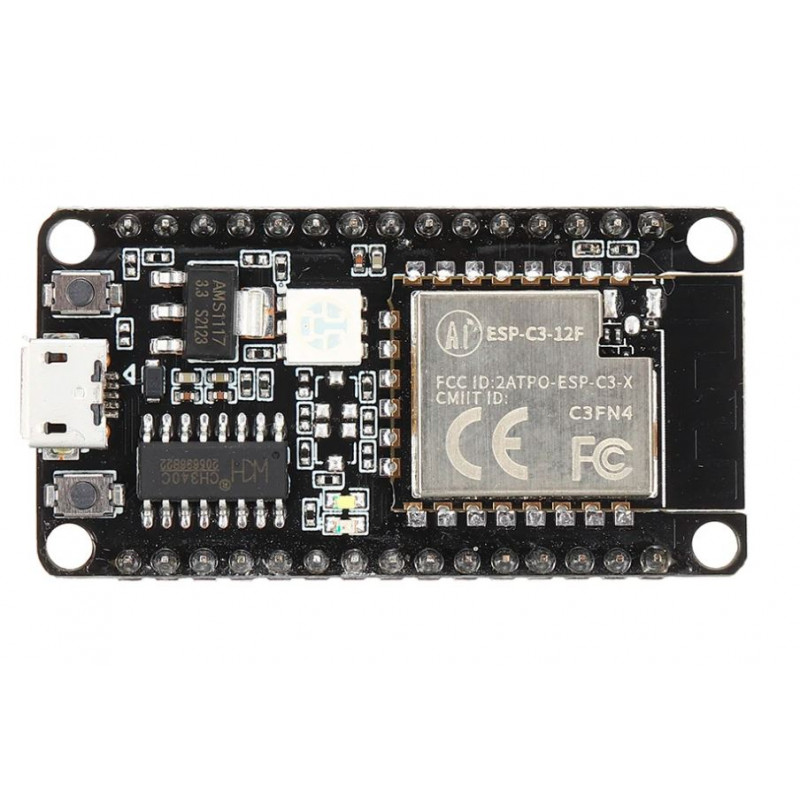

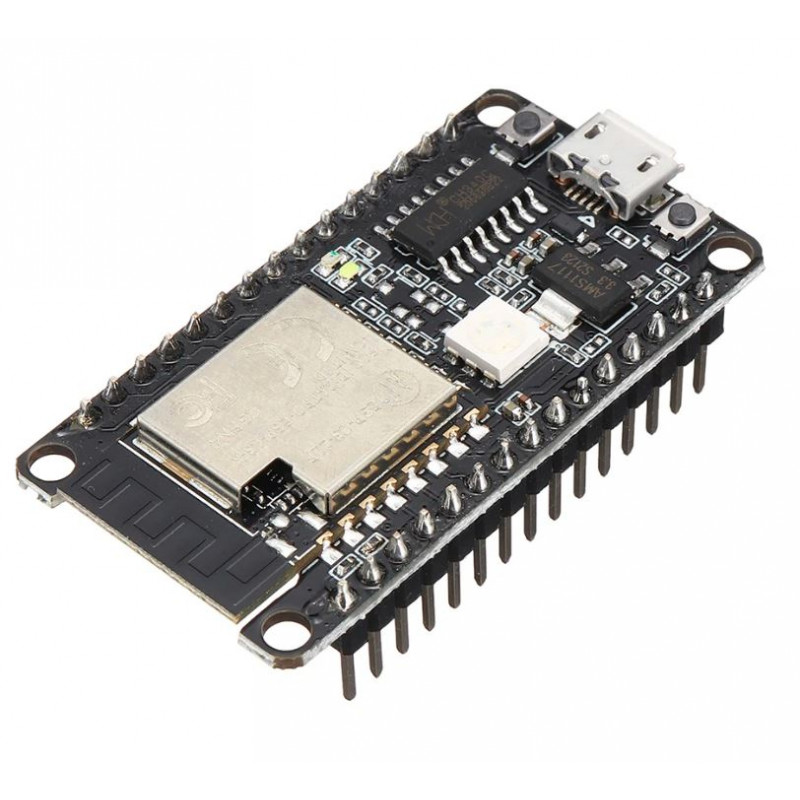

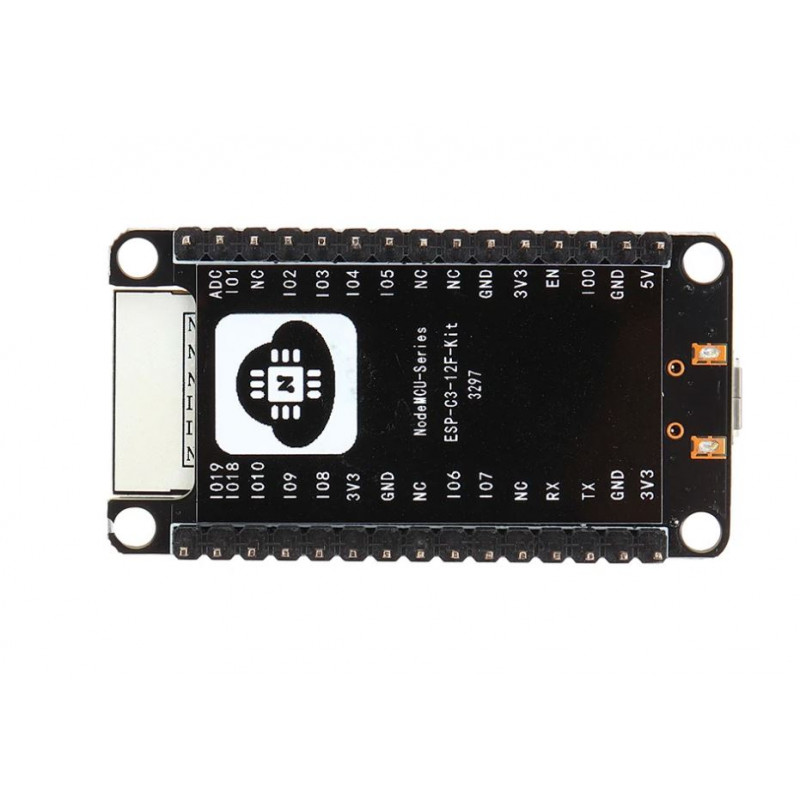

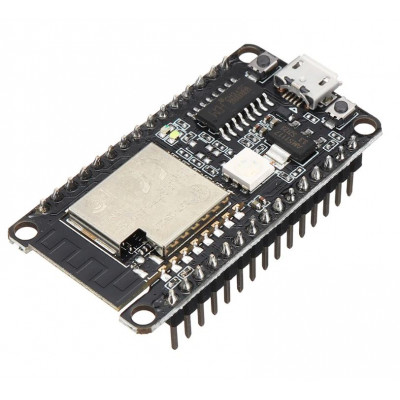

Ai Thinker NodeMCU ESP-C3-12F Development Board
- Product Code: EC-11727
- Availability: Out Of Stock
-
Rs.459.00
- (Excluding 18% GST)
