Introduction Arducam MT9D111 camera breakout incorporates Aptina 1/3.2inch CMOS activepixel digital imaging sensor MT9D111 with an active pixel array of 1668 x 1248 including border pixels. The entire system-on-a-chip (SOC) has low power requirements and low-light performance that is particularly suitable for IoT applications. It has onchip AEC/AGC/AWB/AF functions, and supports RAW/YUV/RGB/JPEG different output format.
Features:
- Aptina MT9D111 camera module with Auto Focus Lenss
- Flex Calbel0.4mm pin pitch
- Provide pin out and mating connector datasheet and technical supports
- DigitalClarity CMOS imaging technology
- Ultra low-power, low-cost, progressive scan
- 2-megapixel resolution (1,600H x 1,200V)
- 1/3.2-inch optical format
- 15 frames per second (fps) at full resolution
- Integrated auto focus and optical zoom
- Real-time JPEG encoder
- Integrated microcontroller for flexibility
- On-chip image flow processor for single-chip camera module
- On-chip auto focus with configurable GPIO interface
- Mechanical shutter support
- Numerous automatic functions for on-the-fly image correction and enhancement
- Fully automatic Xenon- and LED-type flash support,including fast exposure
- Adaptation
- On-chip, 10-bit analog-to-digital converter
- Two-wire serial interface
Application:
- Digital video cameras
- Digital still cameras
- Microscopy camera
- IoT cameras
Package include:

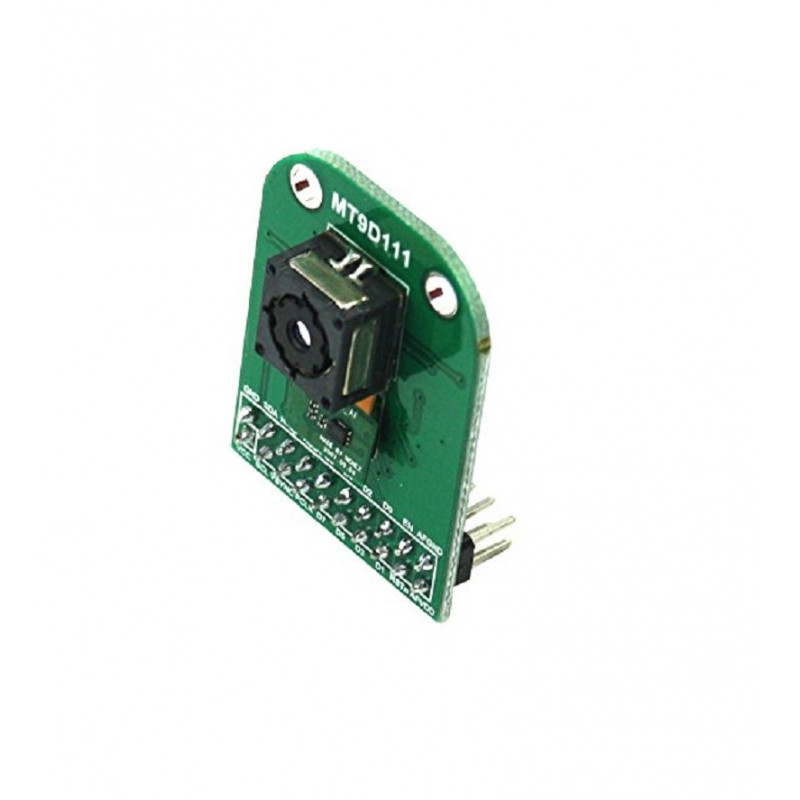

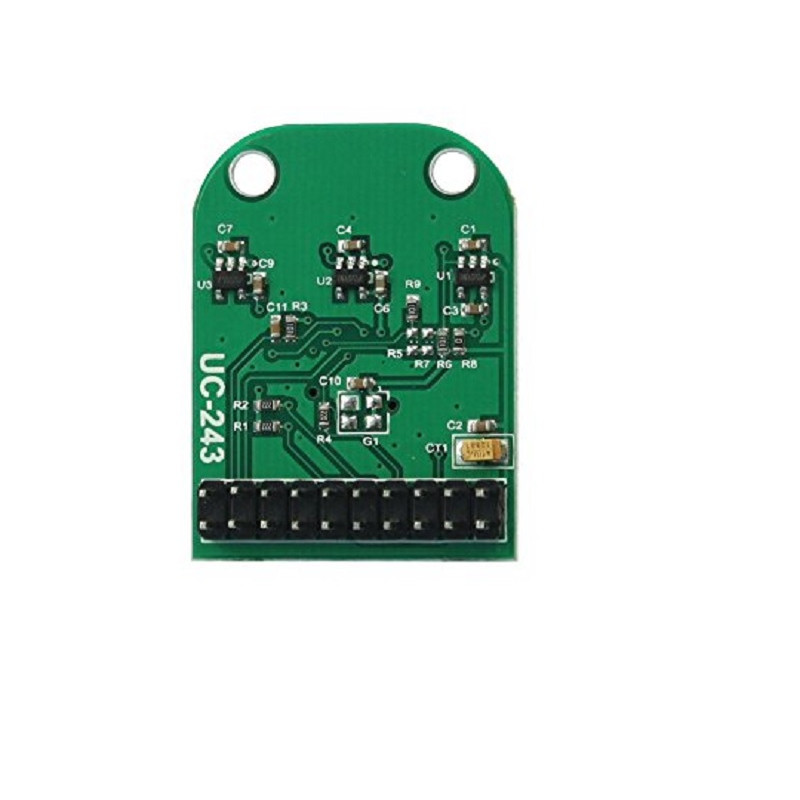

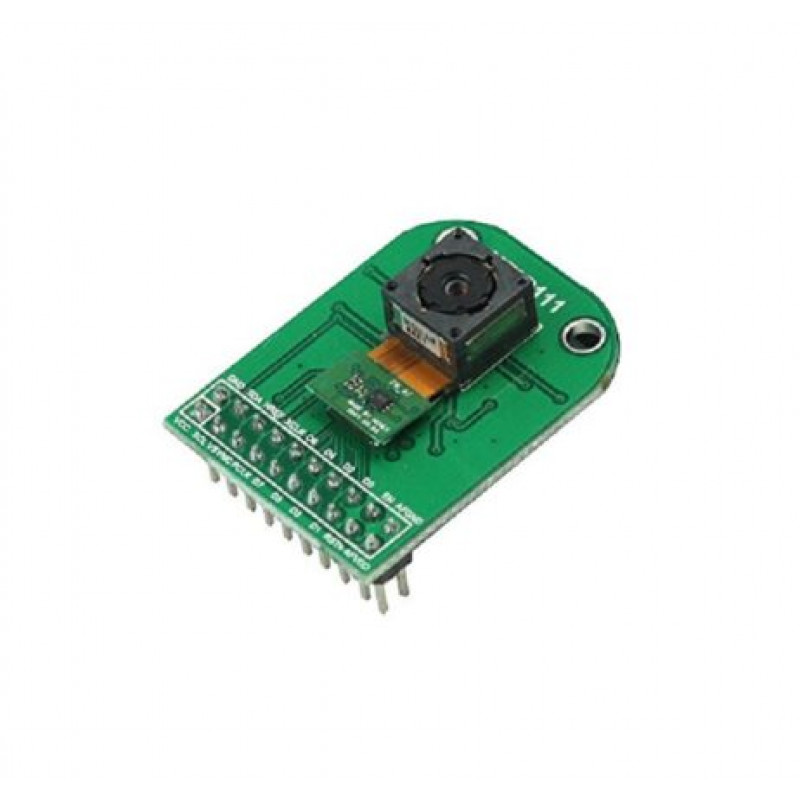

1 x Arducam 2 Megapixels MT9D111 Auto Focus Lens Camera Flex Module with Adapter Board
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Arducam 2 Megapixels MT9D111 Auto Focus Lens Camera Flex Module with Adapter Board
- Product Code: EC-30202
- Availability: 1
-
Rs.854.00
- (Excluding 18% GST)
