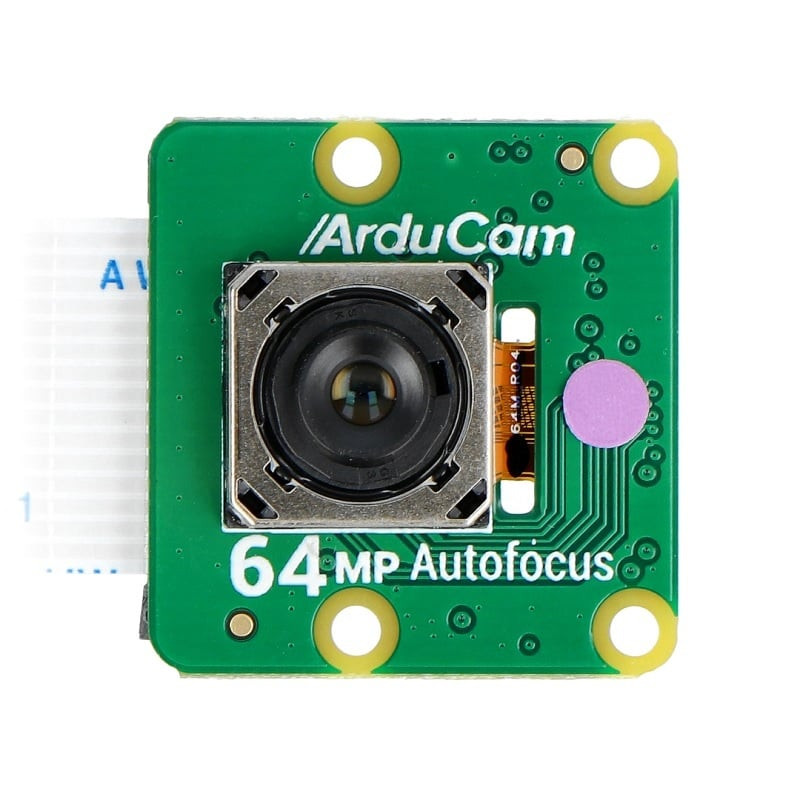

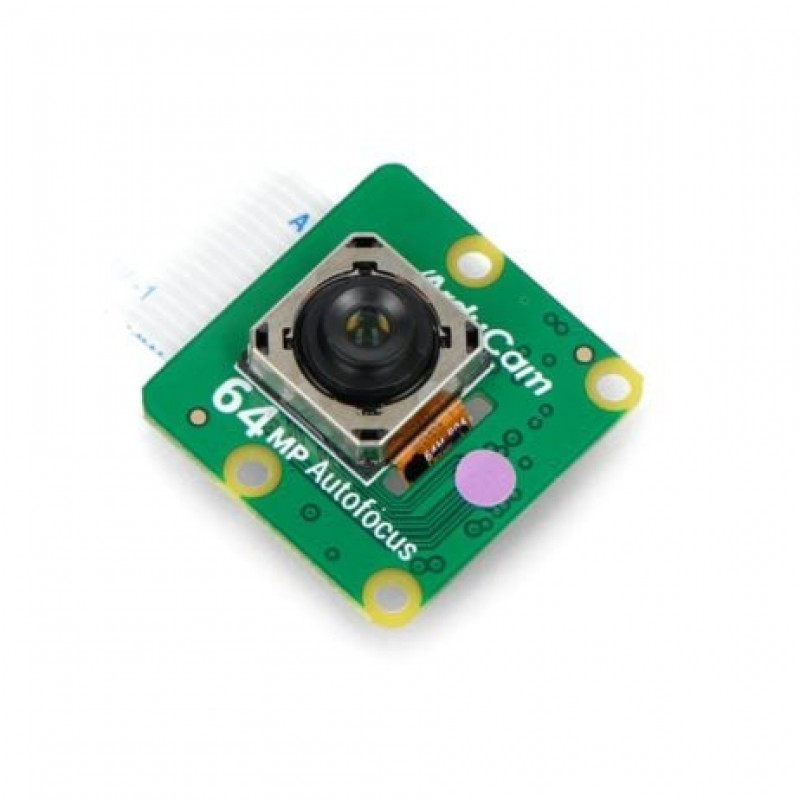

This is a Arducam 64MP Autofocus Camera Module for Raspberry Pi.

The ArduCam camera module is designed to work with Raspberry Pi minicomputers. The camera is based on a Sony sensor with a resolution of up to64 MPx, 9152 x 6944 px. Equipped withmanual and automatic focus, supportsePTZ with 10x digital zoom.Pi Hawk-eye is compatible with official Raspberry Pi V1 and V2 cameras. It connects to the minicomputer via the MIPI CSI-2 connector. It is compatible with libcamera software.

Specifications and Features:

• Optical format: 1 / 1.7
• Type of focus: manual / automatic
• Resolution: 64 MPx, 9152 x 6944 px
• Video mode (Raspberry Pi):
  • 1080p / 30 fps
  • 720p / 60 fps
  • 640 x 480p / 60/90 fps
• Video mode (camera module):
  • 1280 x 720 px / 120 fps
  • 1920 x 1080 px / 60 fps
  • 2312 x 1736 px / 30 fps
  • 3840 x 2160 px / 20 fps
  • 4624 x 3472 px / 10 fps
  • 9152 x 6944 px / 2.7 fps
• Color Filter: Quad Bayer Coding (QBC)
• Supported platforms (for 64 MPx resolution): Raspberry Pi 4B / CM4
• Supported platforms (for 16 MPx resolution): Raspberry Pi 2/3 / CM3 / Zero W / Zero 2 W
• Raspberry Pi OS: Bullseye (32-bit / 64-bit)
• Focus: 8 cm to infinity
• Focal ratio: F1.8
• Focal length: 5.1 mm
• Viewing angle: 84
• Shutter type: rolling
• Output format: JPEG / YUV / RGB / RAW10
• Dimensions: 25 x 24 mm

Package Includes:

1x Arducam 64MP Autofocus Camera Module for Raspberry Pi

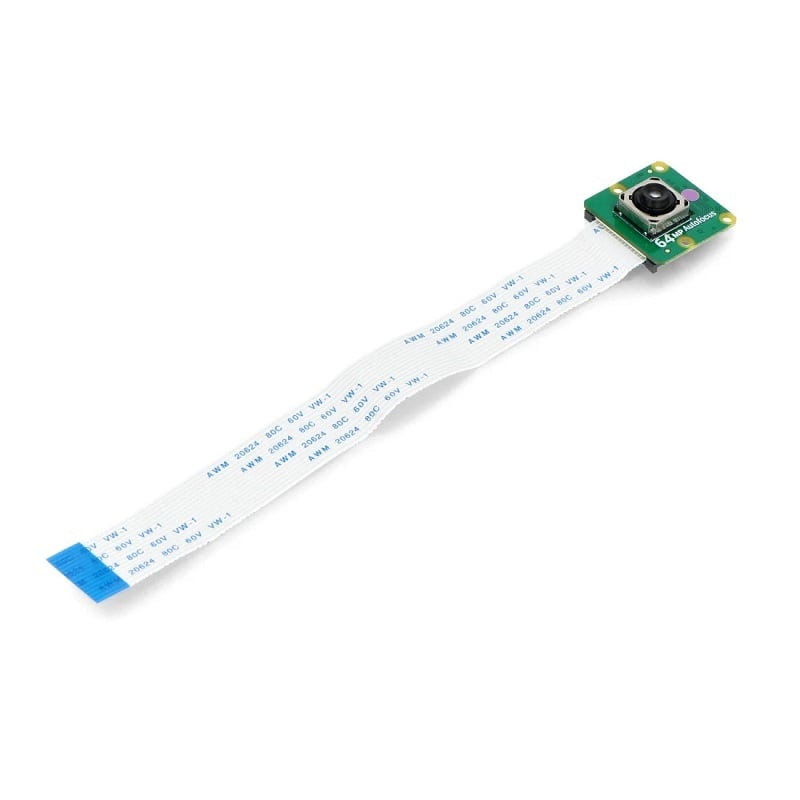

1x 15-pin FPC ribbon cable with a length of 15 cm
