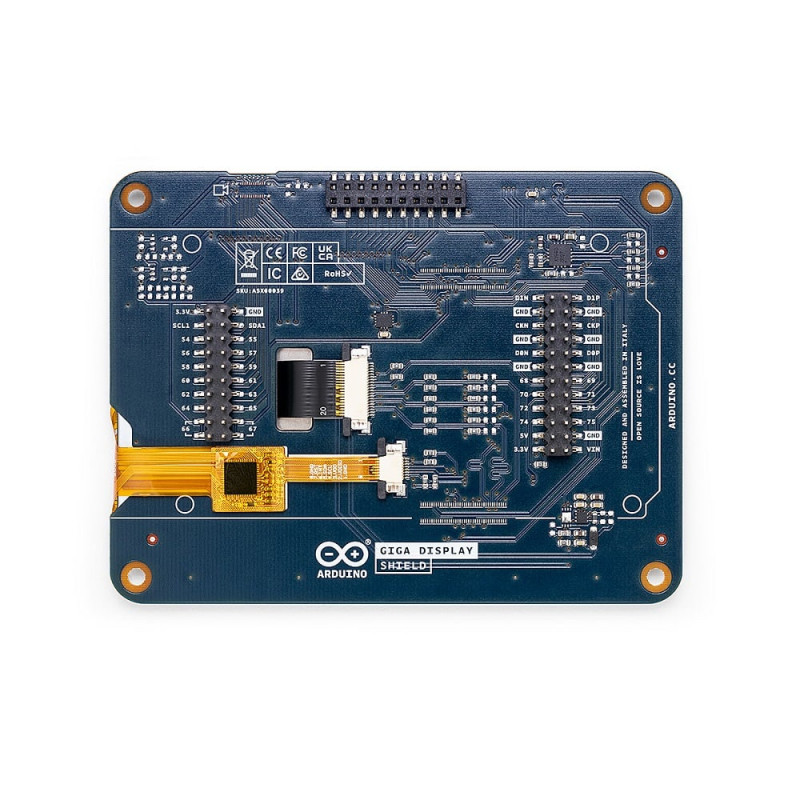

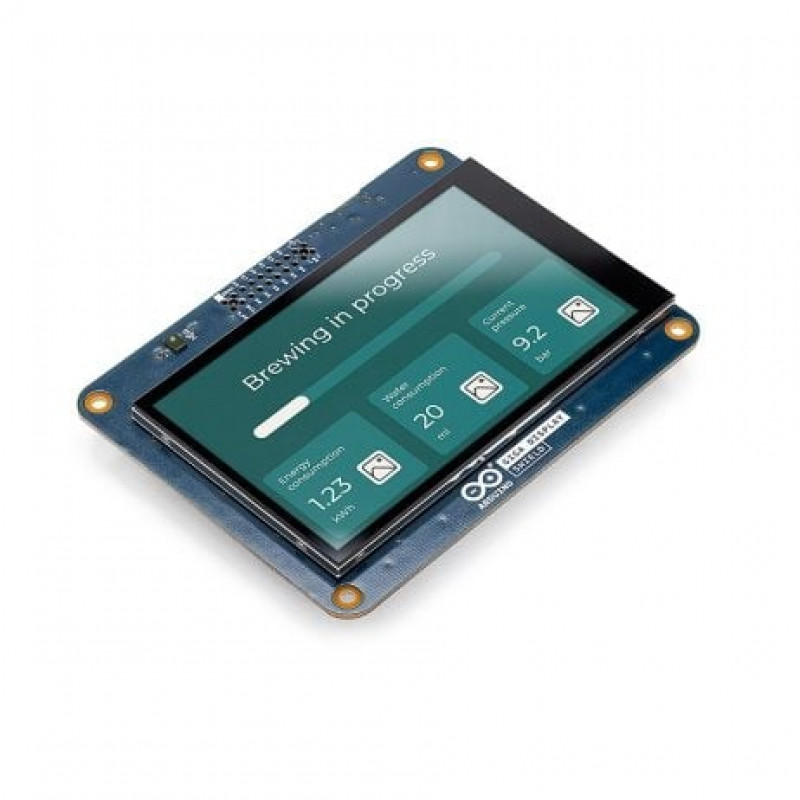

The Arduino GIGA Display Shield (from now on referred to as GIGA Display Shield) is an easy way to add a touchscreen
display with orientation detection to your Arduino GIGA R1 WiFi (from now on referred to as GIGA R1 WiFi) board. The GIGA Display Shield provides easy cross-form factor support for an external touch display, together with several useful peripherals.
Human-Machine Interface Systems: The GIGA Display Shield can be paired together with a GIGA R1 WiFi board for rapid development of a Human-Machine Interface system. The included gyroscope allows for easy orientation detection to adjust the visual element orientation.
Interaction Design Prototyping: Quickly explore novel interaction design concepts and develop new ways to communicate with technology, including social robots that respond to sound.
Voice Assistant Use the included microphone, together with the edge computing power of the GIGA R1 WiFi for voice automation with visual feedback

Note: The GIGA Display Shield requires a GIGA R1 WiFi board to function. It has no microcontroller and cannot be
programmed independently


Features:

  1. Display: KD040WVFID026-01-C025A 3.97 TFT Display
  2. Resolution: 480800 pixels
  3. Color Depth: 16.7 million colors
  4. Pixel Size: 0.108 mm
  5. Touch Sensor: Capacitive with 5-point and gesture support
  6. Backlight: Edge LED backlight
  7. IMU (Inertial Measurement Unit): 16-bit BMI270 6-axis IMU
  8. Accelerometer: 3-axis with 2g/4g/8g/16g range
  9. Gyroscope: 3-axis with 125dps/250dps/500dps/1000dps/2000dps range
  10. SMLP34RGB2W3 RGB LED
  11. Acoustic Overload Point (AOP): 122.5 dbSPL
  12. Signal-to-Noise Ratio: 64 dB
  13. Sensitivity: 26 dBFS 3 dB sensitivity
  14. Display Driver: IS31FL3197-QFLS2-TR Driver with integrated charge pump
  15. Connector: GIGA Connector
  16. Camera Connector: 2.54 mm Camera Connector

Package Includes:

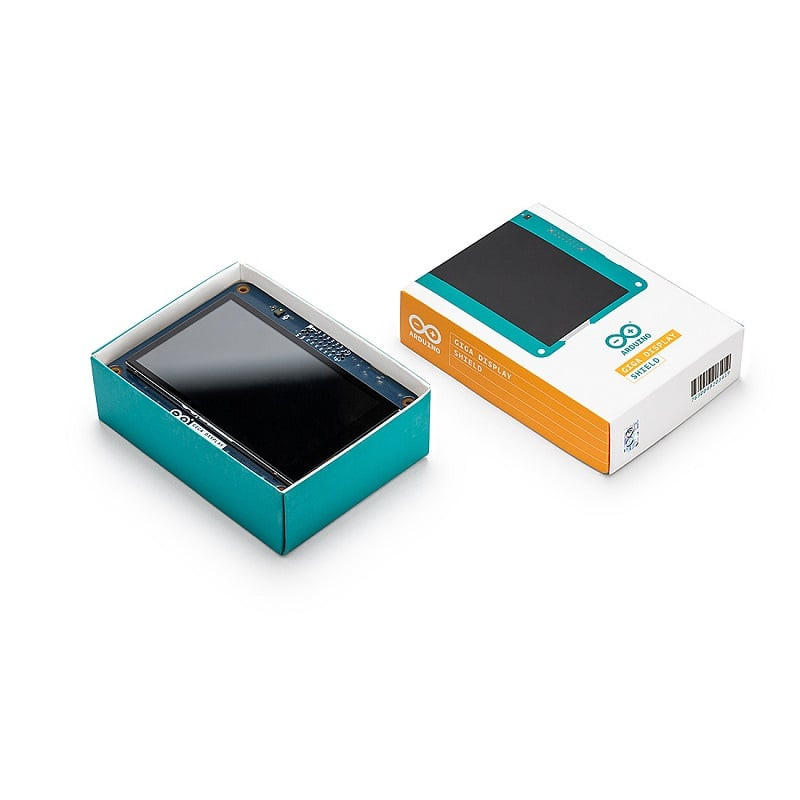

1 x Arduino GIGA Display Shield
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
