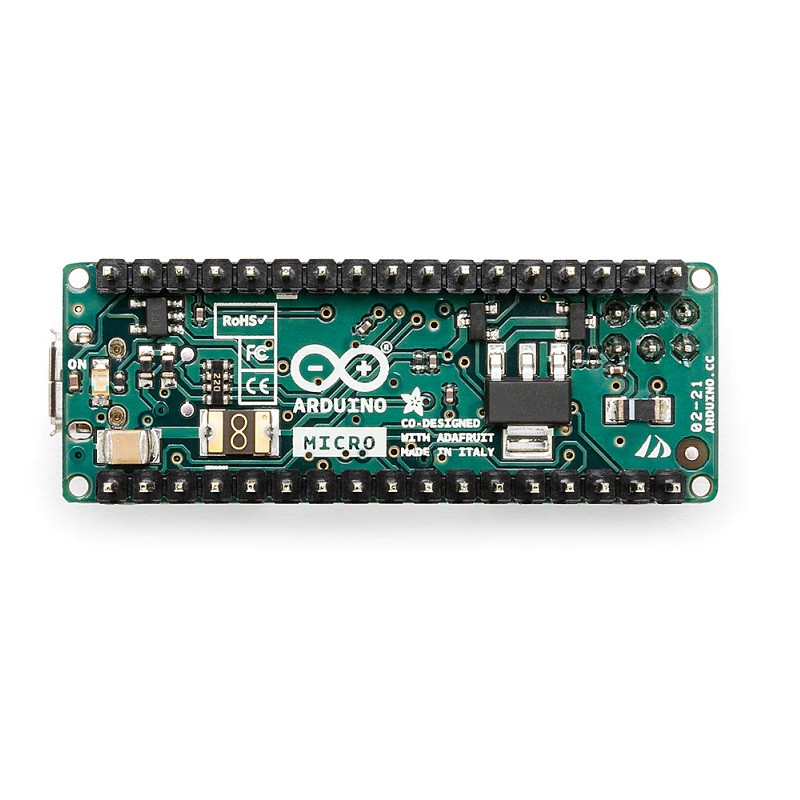

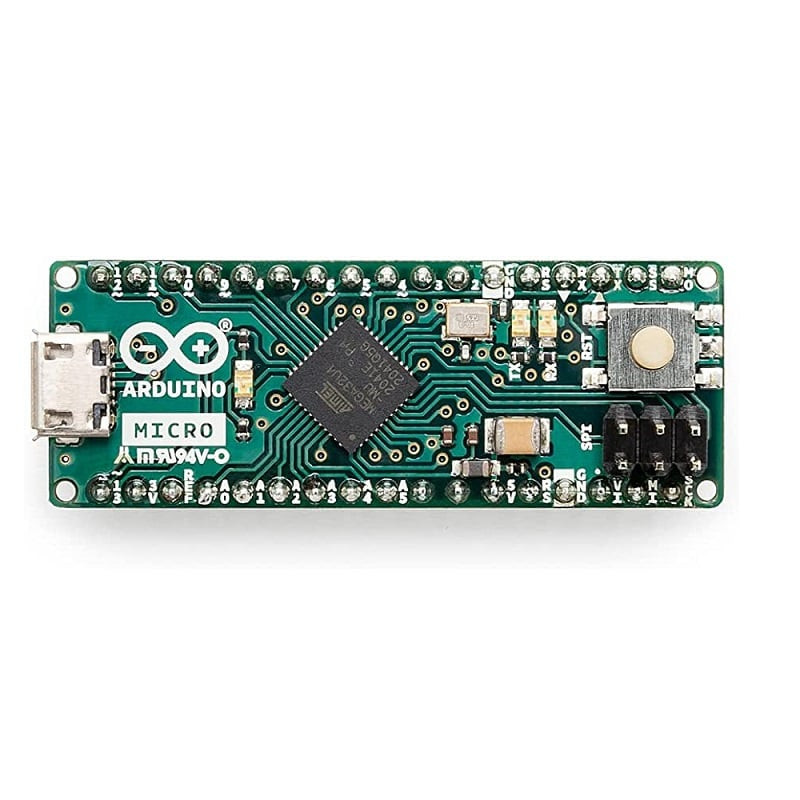

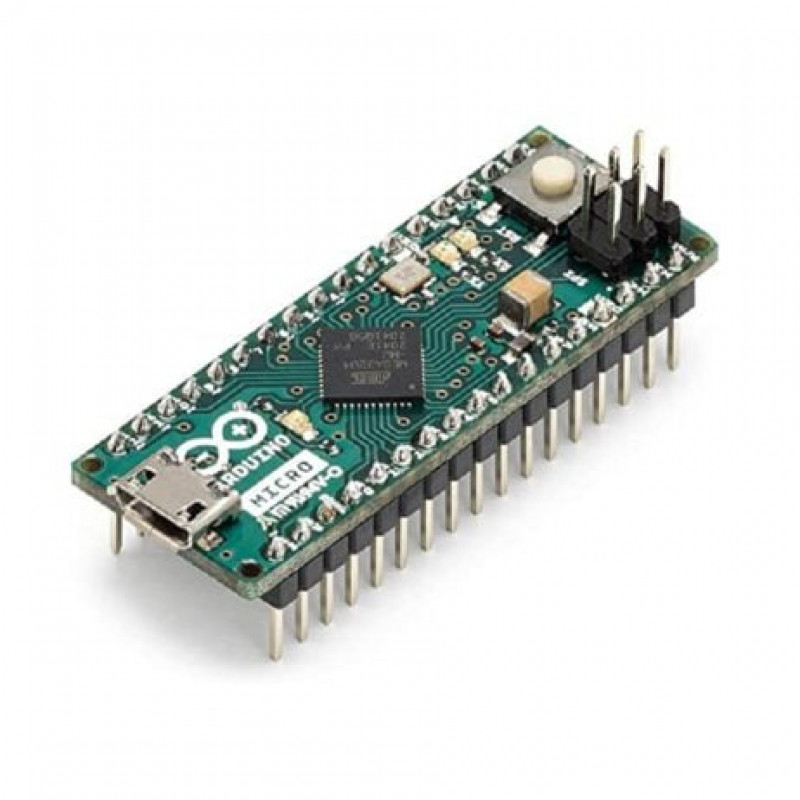

The Micro is a microcontroller board based on the ATmega32U4, developed in conjunction with Adafruit. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:

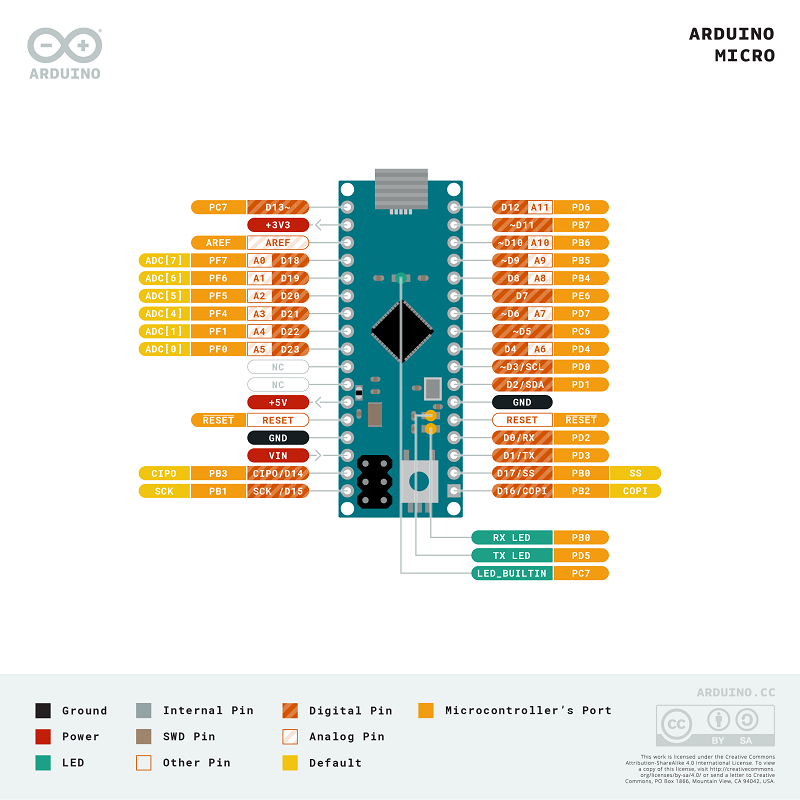

- It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs)
- With a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, a reset button.
- Easy to use
- Easy to install
- Good quality product
Package Includes:
1 x ARDUINO MICRO With Headers
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
ARDUINO MICRO With Headers
- Product Code: EC-20951
- Availability: 33
-
Rs.2155.00
- (Excluding 18% GST)
