If you are experimenting with monitoring fleets, high-altitude scientific experiments, or any kind of project requiring localization of devices, the MKR GPS Shield will offer you the functionality you need, and it is plug n play!

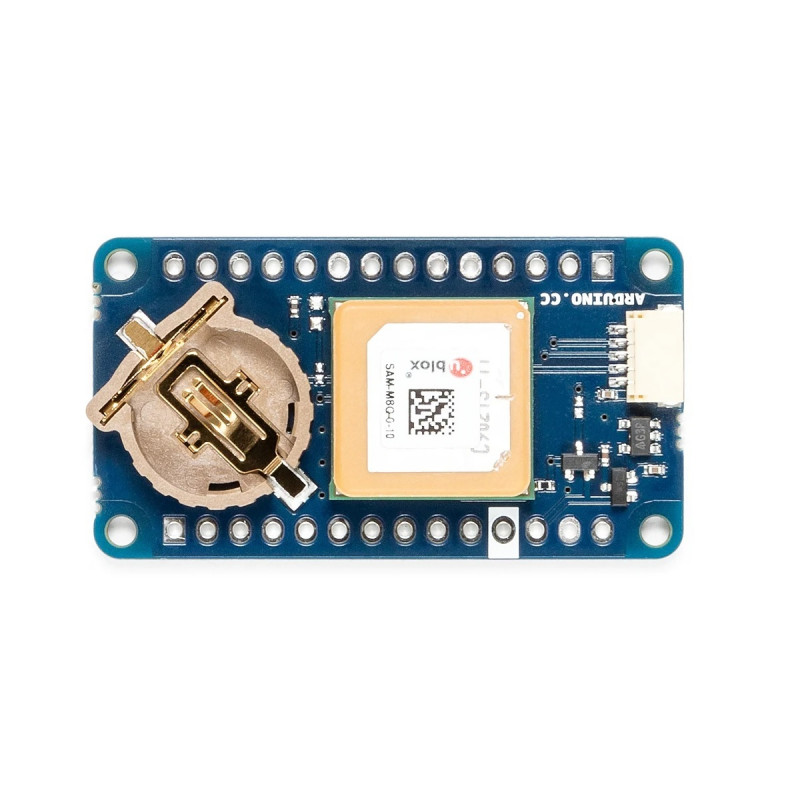

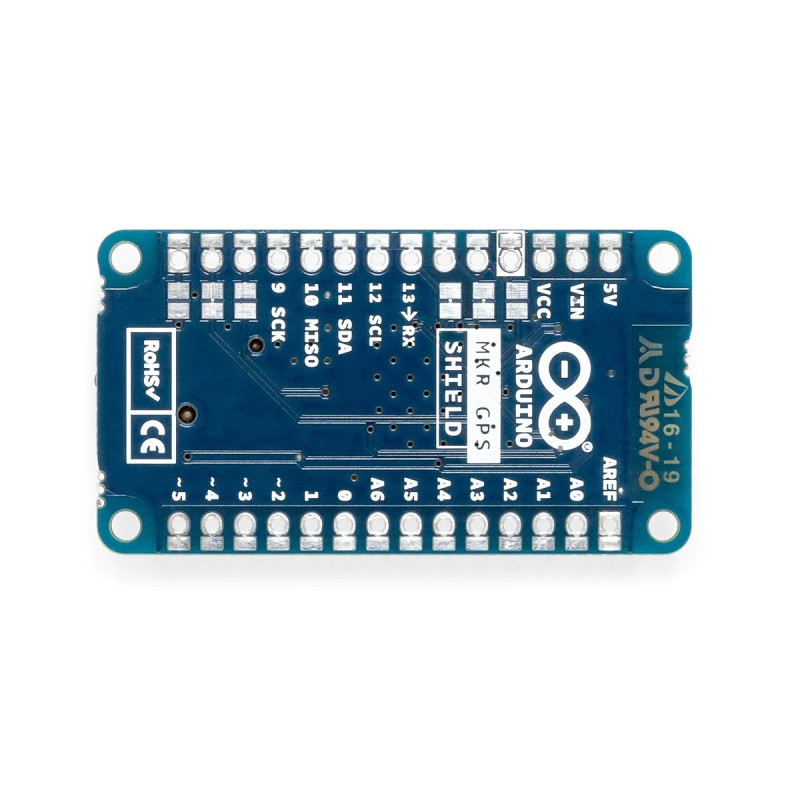

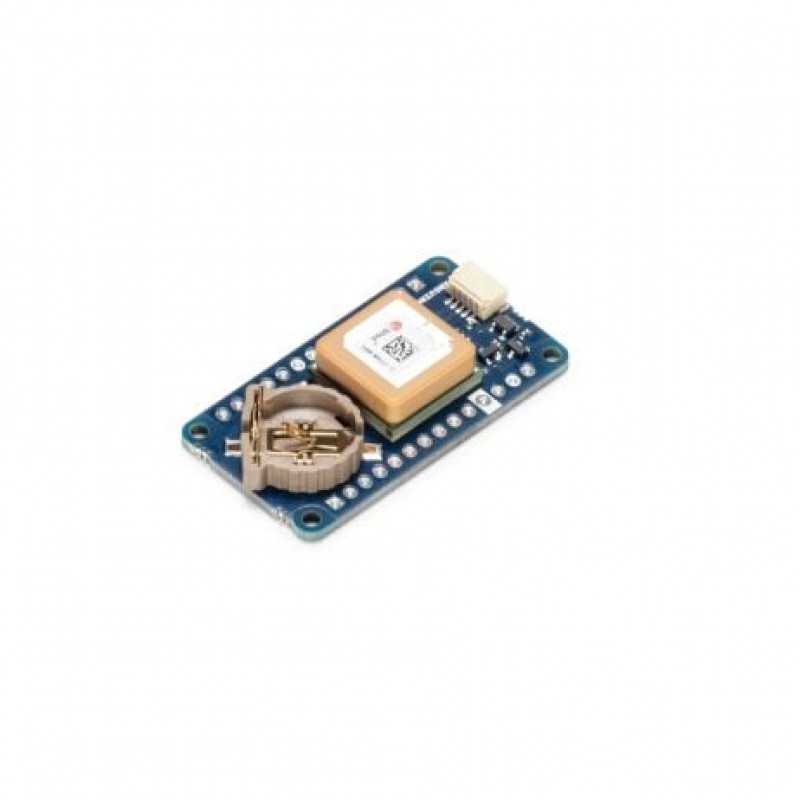

The MKR GPS Shield is based on the u-blox SAM-M8Q GNSS (Global Navigation Satellite System) module. It is meant to be used on top of boards in the MKR format, but thanks to its Eslov connector, it is also possible to hook it up to any board having that kind of connector available using a cable.

This module is designed to operate with different positioning services concurrently. It receives and processes the signals fromGPS,GLONASS, andGalileo. It interfaces with Arduino boards either through a serial interface when used with headers and put on top of an MKR board, or through an I2C interface and a dedicated ESLOV cable supplied as a bundle.

Configuration Commands and Backup

The GPS module can be configured via special commands. We have included an onboard battery holder for the system to keep the configurations made via software. This can be convenient when e.g. changing the operation mode of the GPS to 1g, something common in high altitude experiments, where specific settings away from the default ones are needed for the device.

Another example is the use of Galileos localization option, which is disabled by default but can be enabled by sending a configuration message (UBXCFG-GNSS) to the receiver. You can find a detailed description of all of the commands in the protocol here.

Getting Started

OurArduino_MKRGPS library handles the two different interfaces and offers a consistent set of APIs designed for full usage of the GPS-acquired information

Features:

1. GNSS RECEIVER u-blox module SAM-M8Q (datasheet)
2. Arduino MKR GPS Shield is an expansion board for Arduino MKR boards.
3. Uses an I2C interface for easy integration with Arduino MKR.
4. Low power consumption design for extended battery life.
5. It integrates a u-blox SAM-M8Q GPS module for precise positioning and navigation.

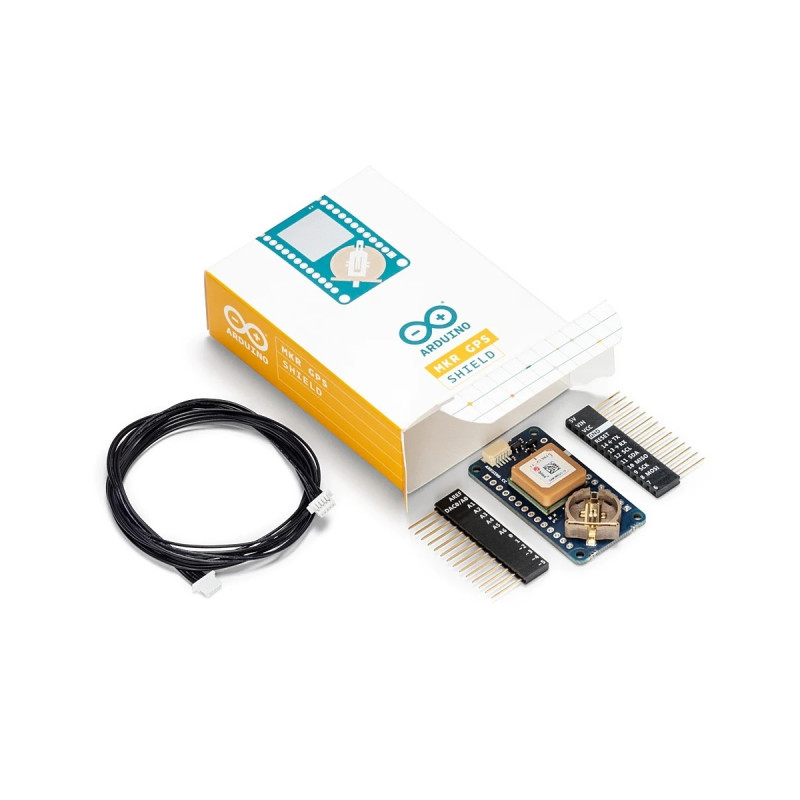

Package Includes:

1 x Arduino MKR GPS Shield
