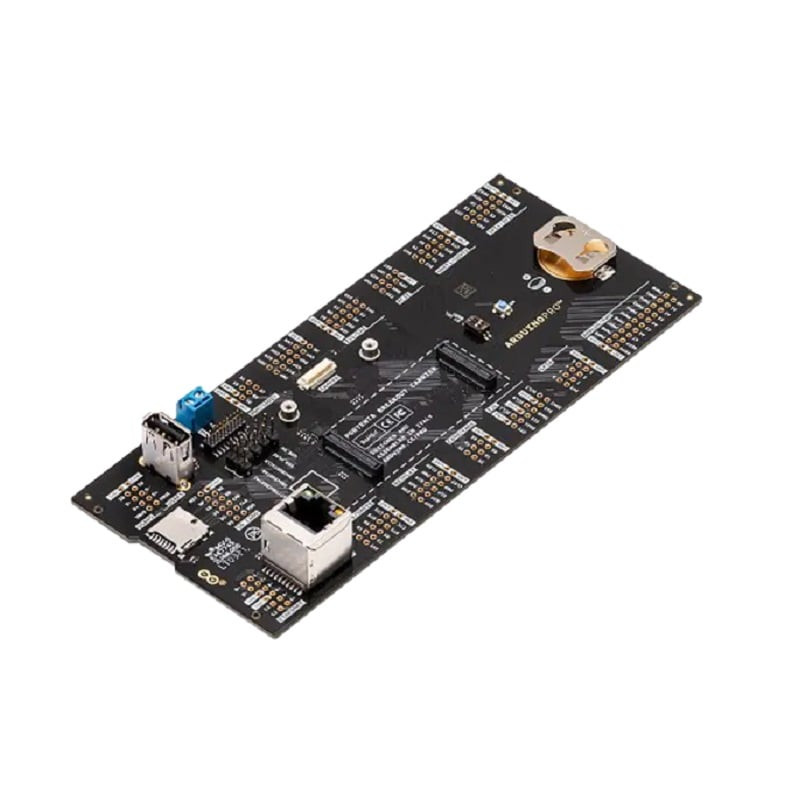

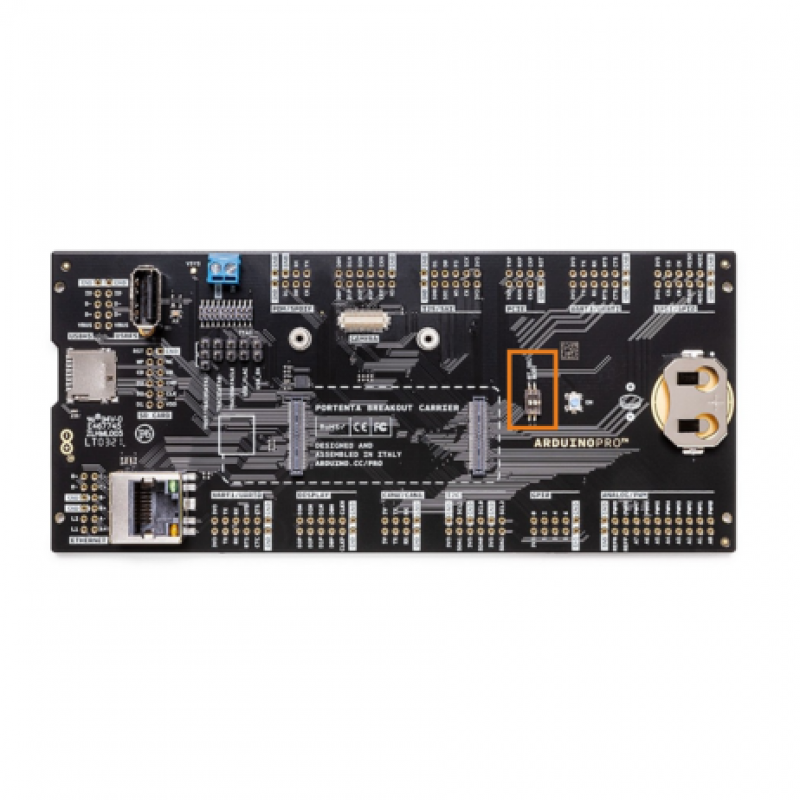

Arduino Breakout Board for Portenta is designed to prototype and test devices connections and capacity within the Portenta family boards. The board makes all high-density connectors signals individually accessible. This allows a quick and easy connection to test external hardware components normally needed during development in the lab.This product is designed to work alongside the Portenta family.

• Product Development: The Portenta Breakout board reduces development time for industrial grade solution automation based on the Portenta line.
• Technical Education: The Portenta Breakout board can act as the first point of entry for technician education in industrial grade control and embedded systems.

Note: Refer to datasheet in the ATTACHMENTS section for more info.

Features:

1. Power ON Button, Boot mode DIP switch
2. Connectors: USBA, RJ45 GBit Ethernet, Micro SD card, OpenMV shutter module, MIPI 20T JTAG with trace capability
3. Power: CR2032 RTC Lithium Battery backup, External power terminal block
4. I/O Break out all Portenta High-Density connector signals, Male/female HD connectors allow interposing breakout between Portenta and shield to debug signals
5. Compatibility: Standard Portenta High-Density connector pinout
6. Safety information: Class A
