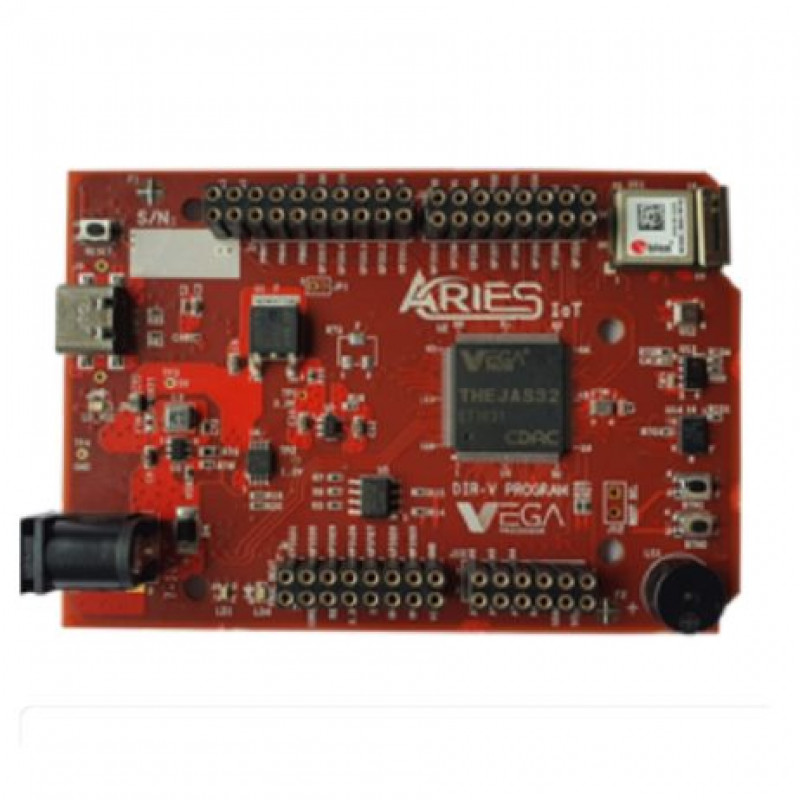

ARIES IoT v2.0 is a feature-rich indigenous hardware platform based on THEAJS32 SoC which includes VEGA ET1031 Microprocessor. This board is targeted for learning and development of Internet of Things applications. The board connected to the IoT cloud helps you automate industry/home/garden and control them from anywhere in the world. The WiFi and Bluetooth connectivity is provided using a module from u-blox, the NINA-W10, a low-power chipset operating in the 2.4GHz range.

This board is a development platform based on THEAJS32 ASIC which operates at a frequency of 100MHz. THEJAS32 SoC includes VEGA ET1031 Microprocessor, 256KB internal SRAM, Three UARTs, Four SPIs, Three TIMERs, Eight PWMs, Three I2C interfaces, 32 GPIOs, etc. This board is designed and developed by the Centre for Development of Advanced Computing (C-DAC) as part of the DIR-V Programme project funded by the Ministry of Electronics and Information Technology, Government of India

Specifications:

1. Controller:VEGA ET1031
2. SRAM: 256 KB
3. Flash: 16MBit
4. PWM Pins: 8 nos
5. Analog Input Pins: 4 nos
6. SPI: 3 nos
7. UART: 3 nos
8. I2C: 2 nos
9. GPIOs: 25
10. Input Voltage: 7-12V
11. DC Current per I/O Pin: 12 mA
12. IO Voltage: 3.3 V
13. Clock Speed: 100 MHz

Package Includes:

1 x ARIES IoT v2.0 Development Board
