Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself cannot be overcharge, over-discharge, short circuit, ultra-high temperature charge, etc. So lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.

Providing all the above features this 3S BMS board can combine 3 x 18650 battery to form a battery pack to provide up to 15V DC output at 20A current which can be used for heavy applications.


Features:

  1. Overcharging and Over Discharging Protection
  2. Short circuit protection: Yes
  3. Applicable assembly: Nominal 4.5V Batteries / 3 strings.

Package Includes:

1 x 3S 20A 18650 Lithium Battery Protection Board



Specifications:

Model

HXYP-3S-BM20

Charging voltage(V)

12.6V-13.6V

Over-Discharge recovery voltage

3±0.05V

Over Discharge Delay Time(ms)

150

Maximum Working Current(A)

20

Maximum Peak Current(A)

30

Length (mm)

65

Width (mm)

47

Height (mm)

10

Weight (gm)

12


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 277.3 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

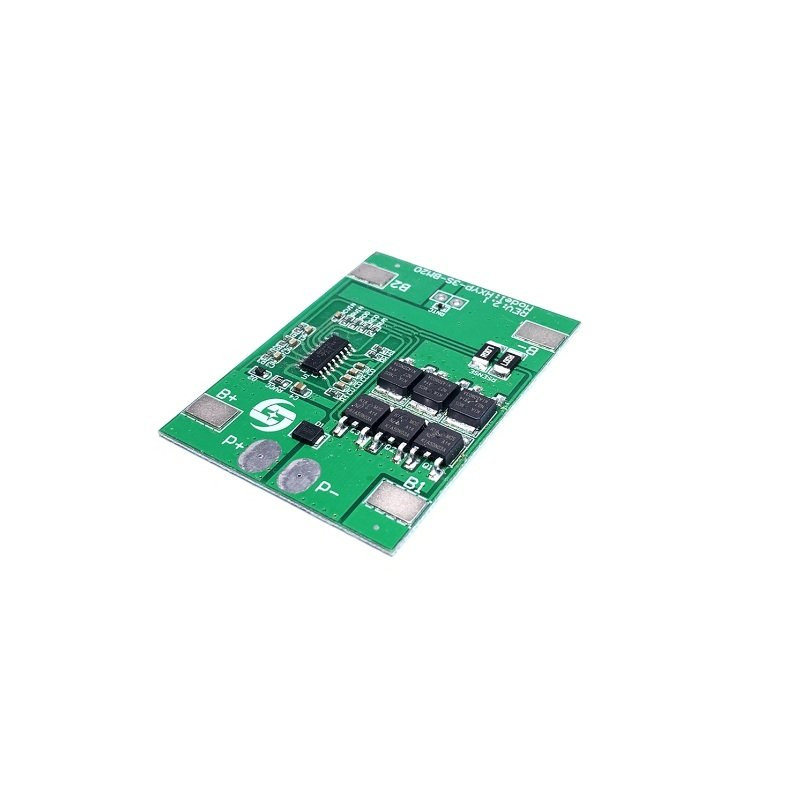

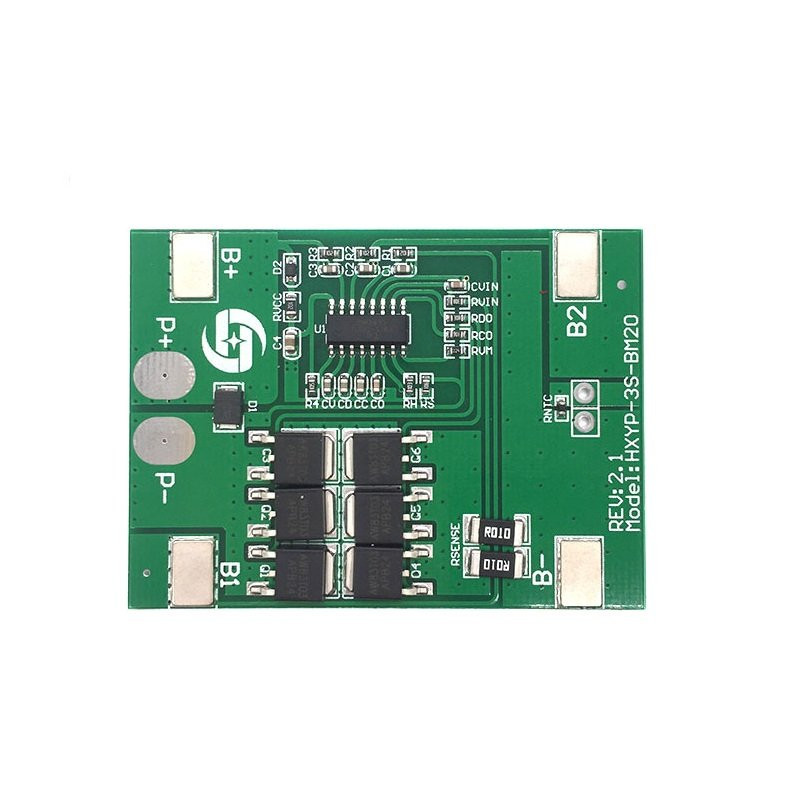

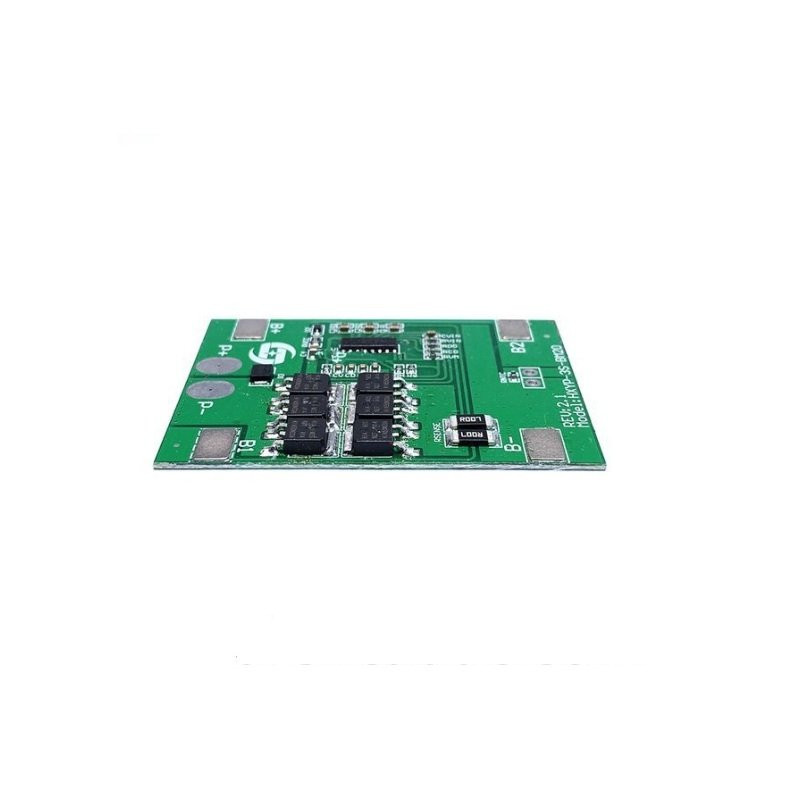

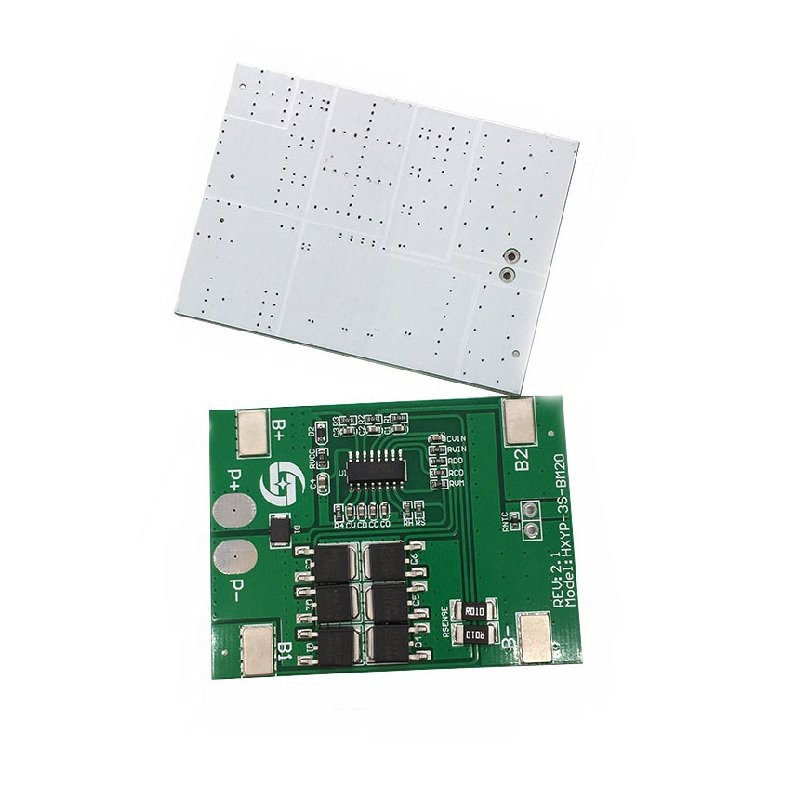

3S 20A 18650 Lithium Battery Protection Board

  • Product Code: EC-7186
  • Availability: 1
  • Rs.239.00
  • (Excluding 18% GST)
