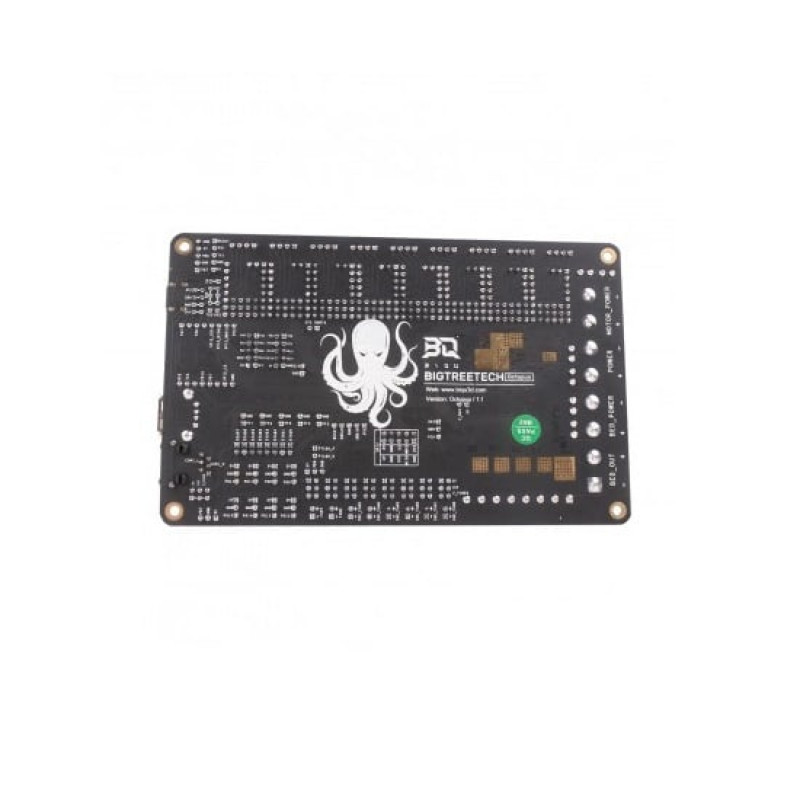

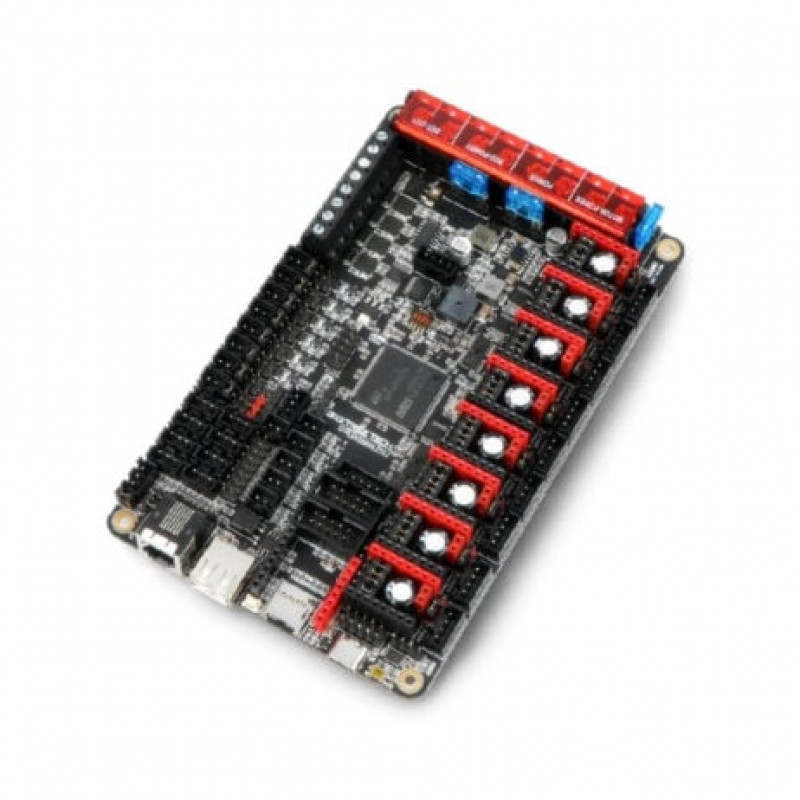

This is a BIGTREETECH Octopus Pro V1.0.1 (F446). BIGTREETECH Octopus Pro is a very powerful motherboard with 8 stepper driver support, so this motherboard can control up to 8 different axes. This feature is particularly suitable for multi-color printing and tool changers, for the use of different tools/modules such as different 3D print heads, laser engraving, laser cutting etc. BIGTREETECH Octopus Pro V1.0.1 (F446) can support up to 8 stepper motor drivers, and the motor drive power supply supports up to 60V input (only motor drive power supply).

Note: Refer to Manual in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Uses a 32-bit ARM Cortex-M4 series STM32F446ZET6 main control chip with a core frequency of 180MHz.
2. Supports running Klipper and Marlin.
3. Interfaces with a Raspberry Pi using emulated serial over USB or direct UART to any of the serial ports on the board.
4. Supports up to 4 hotend heaters.
5. Provides separate power inputs for motors, bed heating and logic/fans/hotends.
6. Supports 12V or 24V supply inputs (12V only supported on motor and bed. Logic must be > 14.1V) with built in 12V (4A), 5V (8A) and 3.3V (1A) regulators to provide
   rails for peripheral us

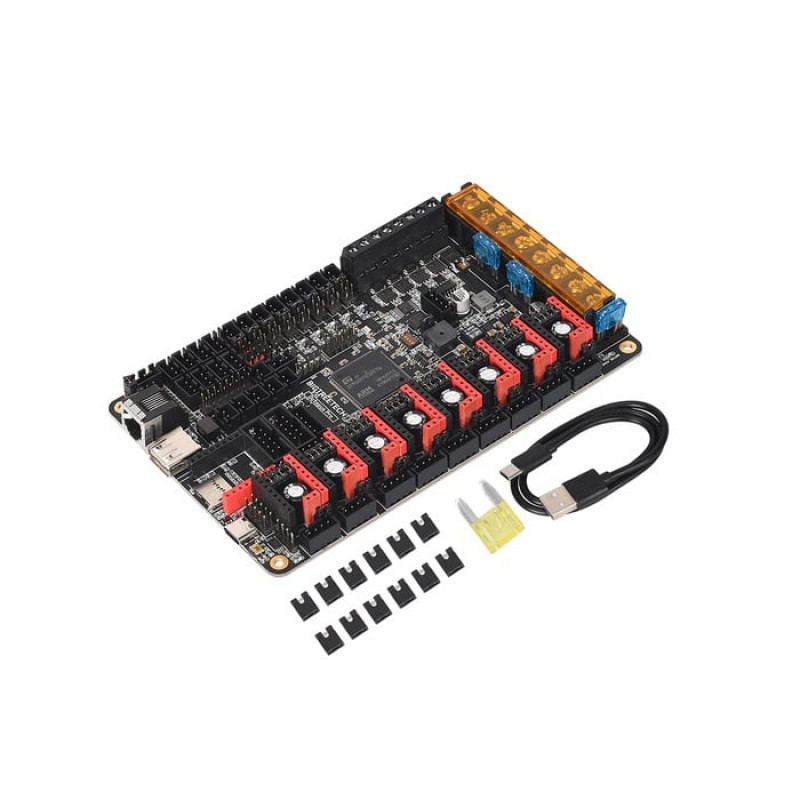

Package Includes:

1 x BIGTREETECH Octopus Pro V1.0.1 (F446

1 x Type C USB Cable and accessories
