This Lithium ion battery protection PCB protect single Lithium ion batteries and it has 20A continuous current. It is suitable for electric drills,motors, or aircraft models which require heavy current load.
Features:
- Overcharge protection function:Yes
- Discharge protection function:Yes
- Over current protection function:Yes
- Balanced protection function:Yes
- Over-current release: Disconnect the load release
- Short circuit protection function: Yes(Disconnect the load can recover.)
Package Includes:
1 x BMS 7s 20A with Connector for 18650 Battery
Specifications:
| Supported battery type | 7 cells 4.2V Lithium ion battery |
| Working current | 20 A |
| Static power | <500uA |
| Over current threshold | 30 A |
| Balancing the locus of control | 4.18±0.03 V |
| Overcharge threshold | 4.3±0.05 V |
| Overcharge time delay | 75mS |
| Overcharge release | 4.1±0.05 V |
| Discharge threshold | 2.4±0.08 V |
| Discharge delay | 5mS |
| Length (mm) | 90 |
| Width (mm) | 46 |
| Height (mm) | 8 |
| Weight (gm) | 35 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 761.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

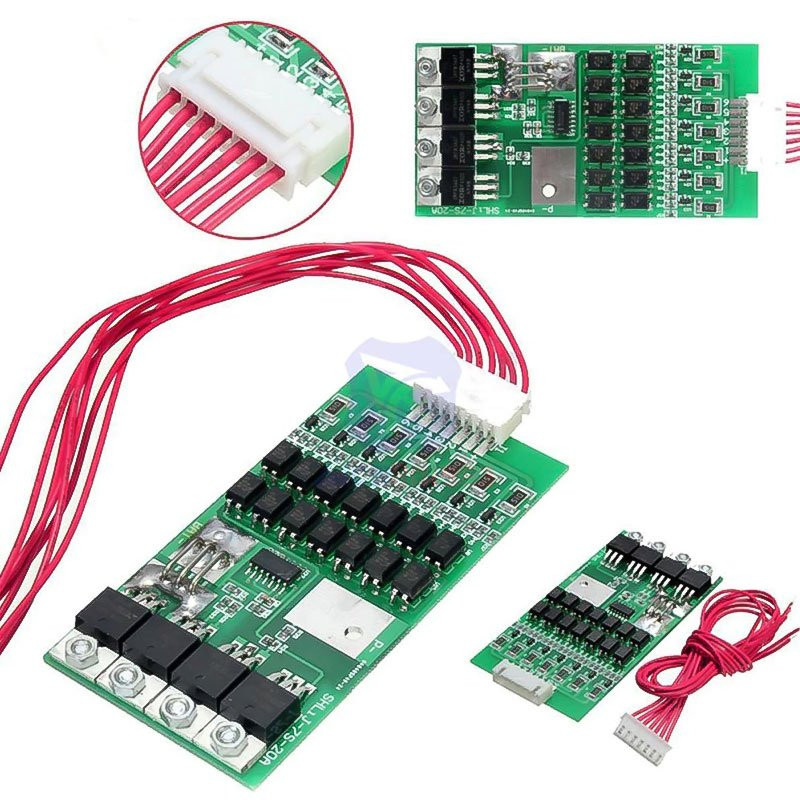

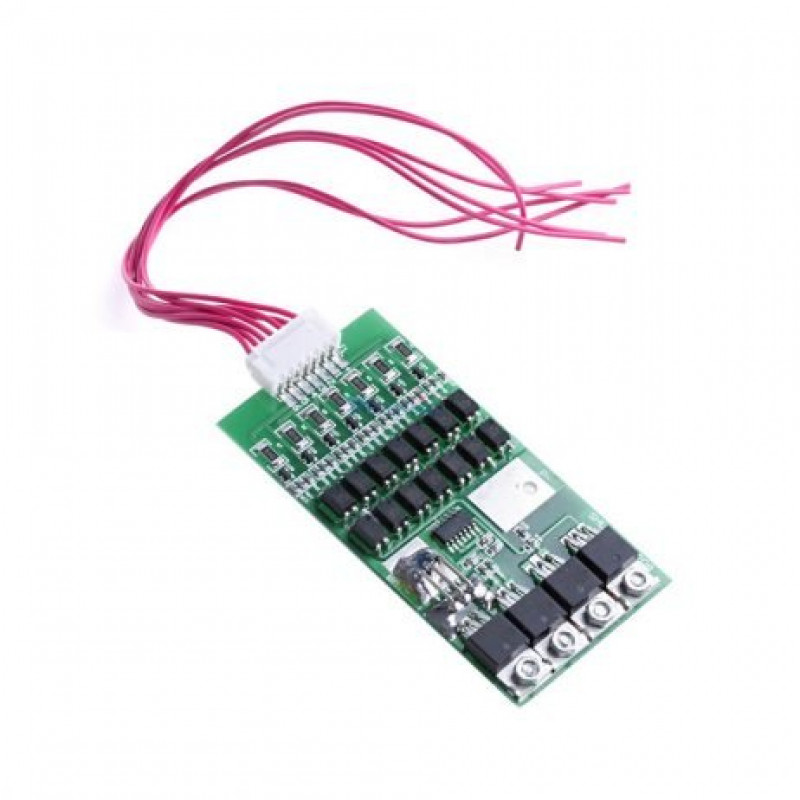

BMS 7S 20A with Connector for 18650 Battery
- Product Code: EC-7203
- Availability: 79
-
Rs.659.00
- (Excluding 18% GST)
