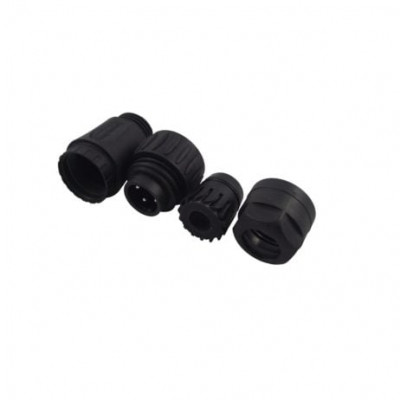

The C016 20H003 100 12 is a 3 + PE-position male straight Cable Connector, C016 series, silver-plated contacts and black backshell, 0.75 to 2.5mm wire gauge. In design and conception the Ecomate program meets the high requirements for applications in industrial technology. The series comprises a large selection of housings and shapes and offers models with screw termination.
Features:
- Quick and easy to assemble
- Ergonomically designed product range for safe handling
- Housing components made from the premium molding material
- >=10R Insulation resistance
- <=5mR Contact resistance
- Protection class IP65/67 in the mated condition in accordance with DIN EN 60526
Specifications:
- Product Range: Ecomate C016 Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 4Contacts
- Circular Contact Type: Screw Pin
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide) Body
Package Includes:
1 x C016 20H003 100 12-CIRCULAR CONNECTOR, PLUG, 3+PE
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
C016 20H003 100 12-Circular Connector, Plug, 3+PE
- Product Code: EC-21565
- Availability: Out Of Stock
-
Rs.808.00
- (Excluding 18% GST)
