The CD4050 devices noninverting hex buffers, and feature logic-level conversion using only one supply voltage (VCC). The input-signal high level (VIH) can exceed the VCC supply voltage when these devices are used for logic-level conversions. These devices are intended for use as CMOS to DTL or TTL converters and can drive directly two DTL or TTL loads. (VCC = 5 V, VOL ≤ 0.4 V, and IOL ≥ 3.3 mA.)
Features:-
- CD4050 Non-Inverting
- High Sink Current for Driving 2 TTL Loads
- High-to-Low Level Logic Conversion
- 100% Tested for Quiescent Current at 20 V
- Maximum Input Current of 1 µA at 18 V Over Full Package Temperature Range; 100 nA at 18 V and 25°C
- 5-V, 10-V, and 15-V Parametric Ratings
Specifications:-
| Parameter | Specification |
| Part number | CD4050 |
| Technology Family | CD4000 |
| VCC (Min) (V) | 3 |
| VCC (Max) (V) | 18 |
| Channels (#) | 6 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Standard speed (tpd > 50ns), Input clamp diode |
| IOL (Max) (mA) | 18 |
| IOH (Max) (mA) | -3.1 |
| Data rate (Mbps) | 16 |
| Rating | See Data Sheet |
| Package Group | PDIP|16 |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 20.06 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

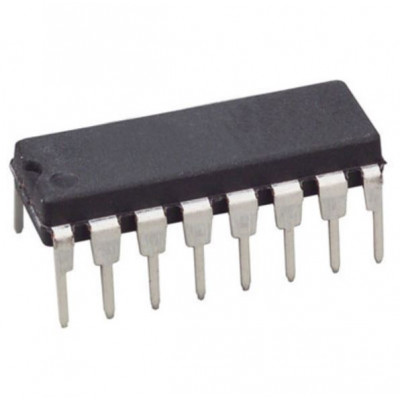

CD4050 Hex Non-Inverting Buffer IC DIP-16 Package
- Product Code: EC-0526
- Availability: 2323
-
Rs.17.00
- (Excluding 18% GST)
