The CD4051BE analogue multiplexer is a digitally controlled analogue switches having low ON impedance and very low OFF leakage current. Control of analogue signals up to 20VP-P can be achieved by digital signal amplitudes of 4.5V to 20V (if VDDVSS = 3V, a VDDVEE of up to 13V can be controlled; for VDDVEE level differences above 13V, a VDDVSS of at least 4.5V is required). For example, if VDD = +4.5V, VSS = 0V, and VEE = 13.5V, analogue signals from 13.5V to +4.5V can be controlled by digital inputs of 0V to 5V. These multiplexer circuits dissipate extremely low quiescent power over the full VDDVSS and VDDVEE supply voltage ranges, independent of the logic state of the control signals. When a logic 1 is present at the inhibit input terminal, all channels are off. The CD4051BE has three binary control inputs, A, B, and C, and an inhibit input. The three binary signals select 1 of 8 channels to be turned on, and connect one of the 8 inputs to the output.

Specifications:

IC Case / Package: DIP
Supply Voltage Range: 3V to 20V
Operating Temperature Min: -55C
No. of Pins: 16Pins
Product Range: CD4000 LOGIC
IC Mounting: Through Hole
No. of Channels: 1Channels
Operating Temperature Max: 125C
On Resistance Max: 240ohm
IC Function: Analogue Multiplexer/Demultiplexer
On Resistance Typ: 125ohm
Mux / Demux Configuration: 8:1

Package Includes:

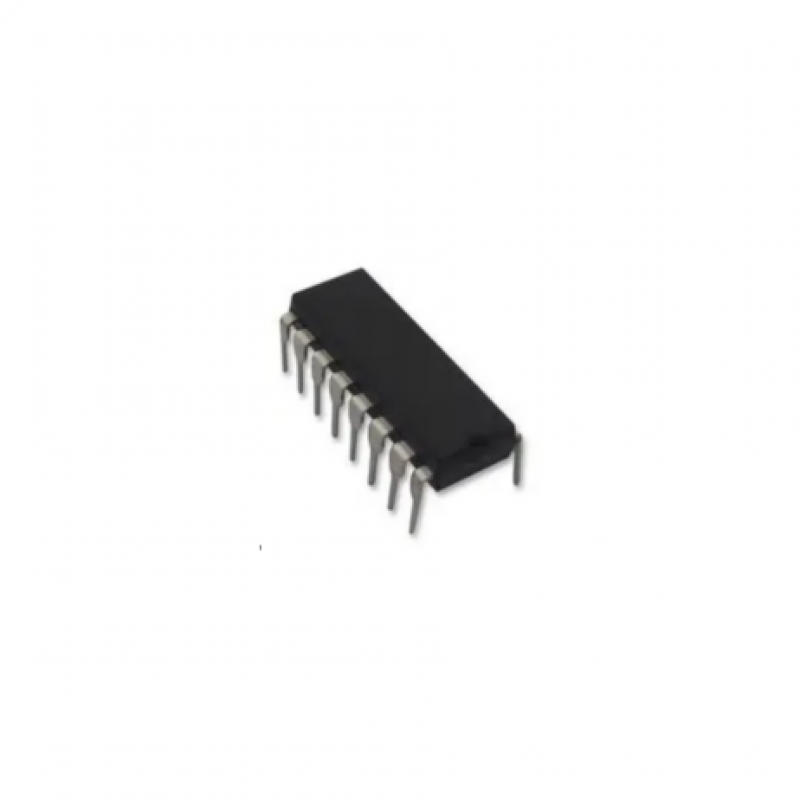

1 x CD4051BE-TEXAS INSTRUMENTS-CD4051BE-8:1 Analog Multiplexer/Demultiplexer IC, Single, 240 ohm, 3V to 20V, DIP-16
