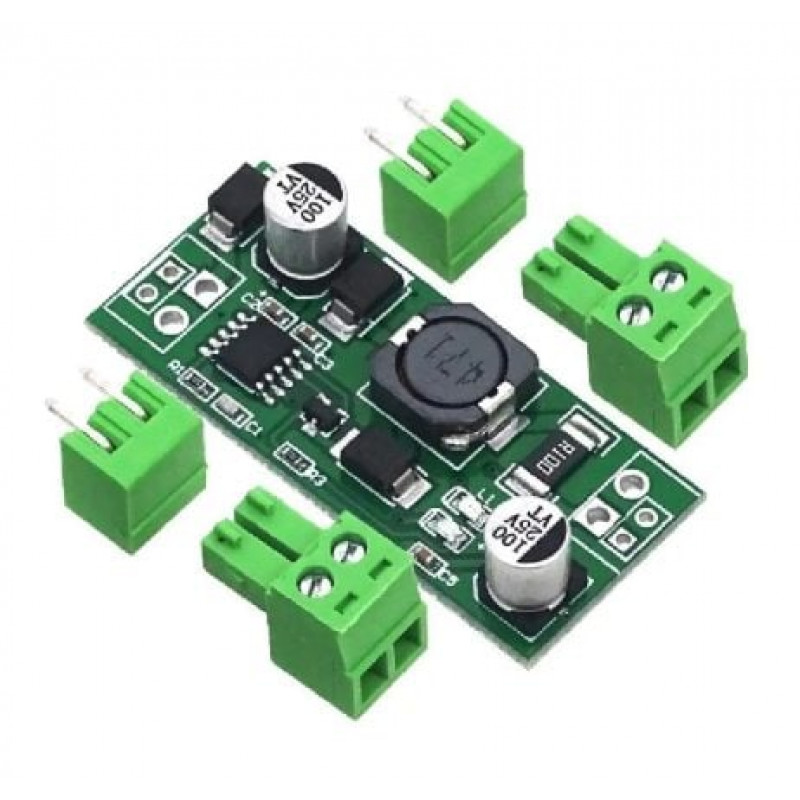

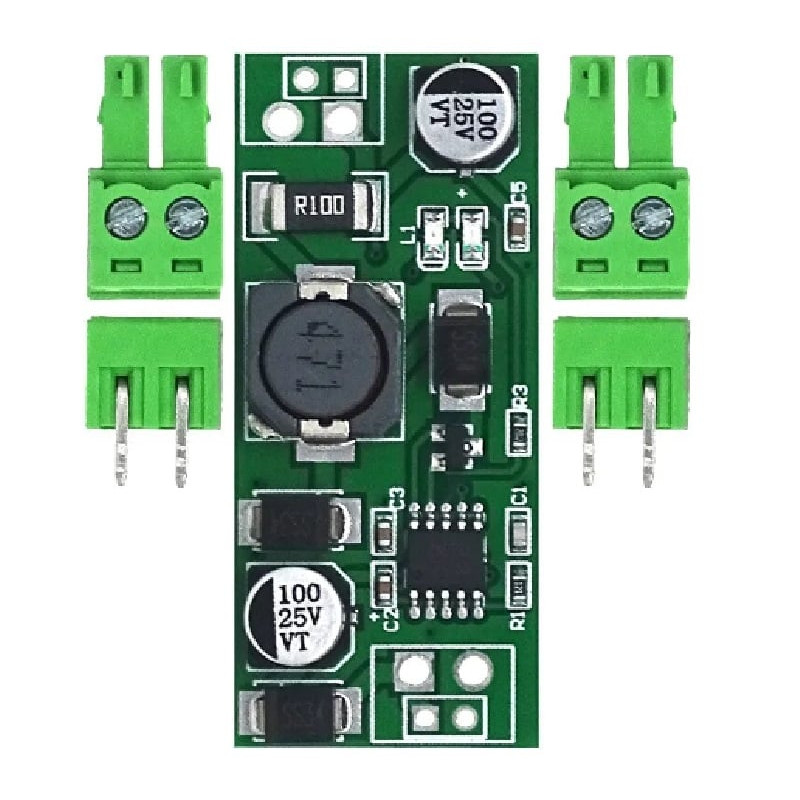

The CN3761 Lithium Battery Charger Protection Board Module is designed for charging lithium batteries using solar panels. Operating within a range of 5V-15V, it ensures efficient charging for 4.2V lithium batteries. This module integrates charging and protection features, making it ideal for solar-powered applications.
CN3761 charging module is a wide voltage (5V-15V) input, charging management module for a single-cell lithium battery (3.6V/4.2V), the charging current of the module is limited to 1.2A, and the maximum charging resistance can reach more than 3A by changing the module.
Features:
- Display charging status and charging end status.
- The soft start function supports a wide range of applications.
- Complete charge management for single-cell lithium batteries.
Specifications:
- Model: CN3761 Solar Charger Board
- Input voltage: DC5V ~ 15V
- Working environment temperature: -40 to 85
- Interface: SIP2.54-2P
- Output voltage: nominal 3.7V full cut-off voltage 4.2V

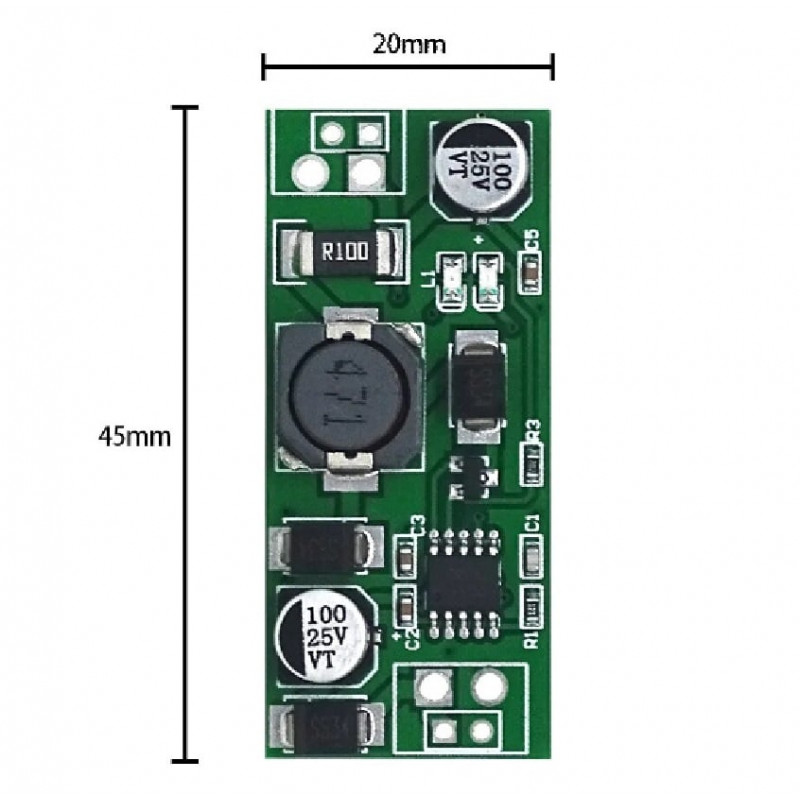

- Length: 45mm
- Width: 19mm
- Height: 9mm
Package Includes:
1 x CN3761 Lithium Battery Charger Protection Board Module 5V-15V for 4.2V Solar Panel
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
CN3761 Lithium Battery Charger Protection Board Module 5V-15V for 4.2V Solar Panel
- Product Code: EC-18403
- Availability: 3
-
Rs.237.00
- (Excluding 18% GST)
